Vapor Pressure Sensor: Replacement

REMOVE FUEL TANK (See FUEL TANK AND LINE )
REMOVE VAPOR PRESSURE SENSOR
1. Slightly turn the sensor.
2. Remove the joint clip.
3. Pull out the sensor.
4. Plug the port of the fuel suction plate with a clean rubber cap.

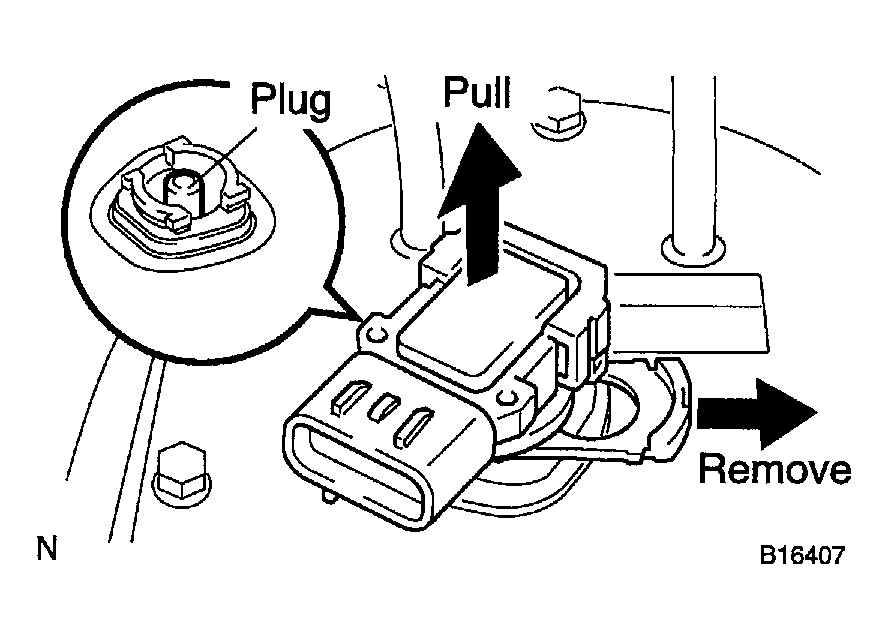

Fig 1: Removing Joint Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL VAPOR PRESSURE SENSOR
1. Attach the sensor to the port of the fuel suction plate.
2. Install the joint clip.

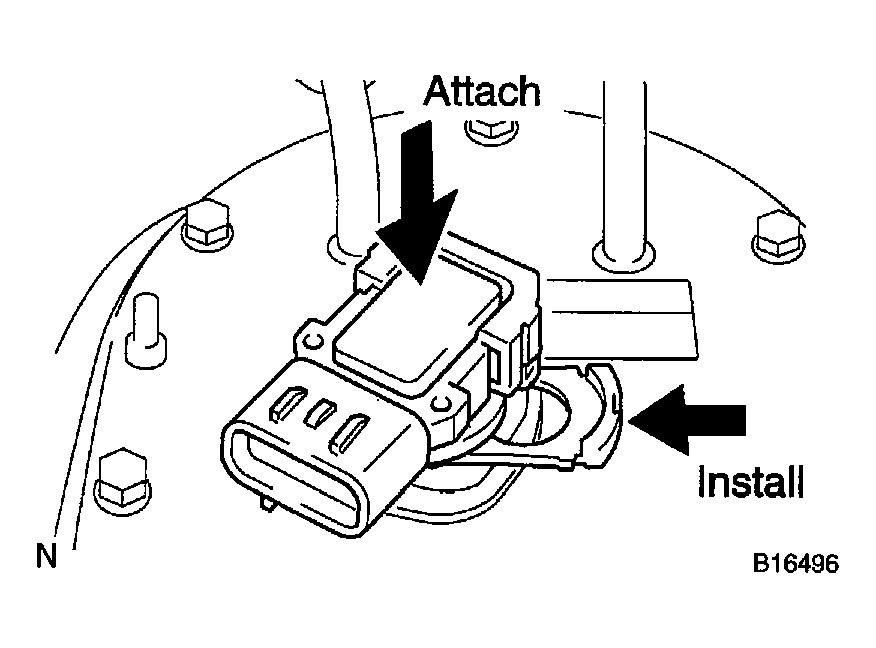

  Fig 2: Installing Joint Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the sensor, and face the sensor connector forward.
REINSTALL FUEL TANK (See FUEL TANK AND LINE )

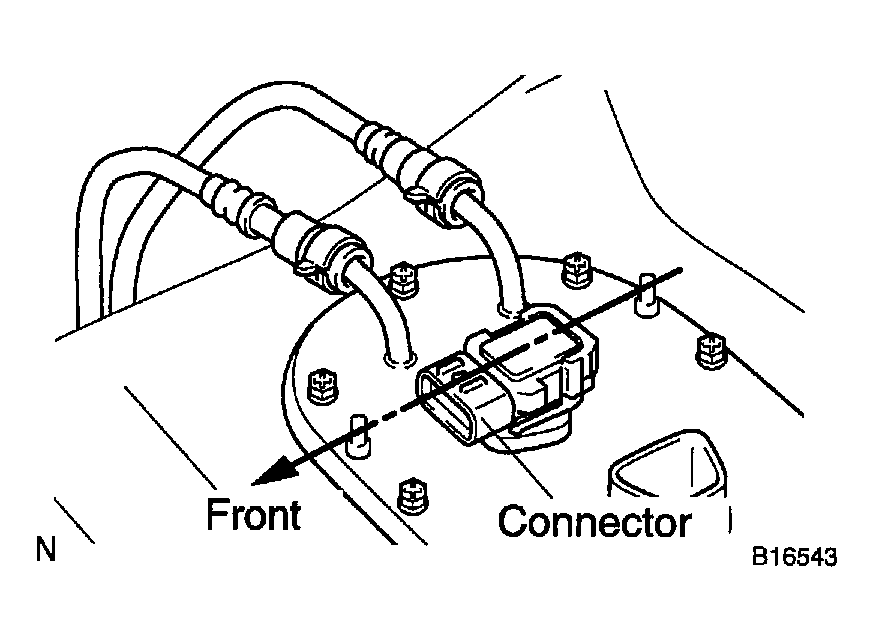

Fig 3: Turning Sensor And Face Sensor Connector Forward
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
