Section 14 (Power Window Control System (Double Cab)): Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT POWER WINDOW REGULATOR SWITCH CONTINUITY
    POWER WINDOW REGULATOR SWITCH CONTINUITY

    Switch Position Tester Connection Specified Condition
    UP 2 - 3, 4 - 5 Continuity
    OFF 2 - 3 - 5 Continuity
    DOWN 2 - 4, 3 - 5 Continuity

    If the continuity is not as specified, replace the switch.

    Fig 1: Identifying Power Window Regulator Switch Connector Terminal
    G02931917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER MAIN RELAY CONTINUITY
    POWER MAIN RELAY CONTINUITY

    Tester Connection Specified Condition
    3 - 5 No continuity
    3 - 5 Continuity (When battery voltage is applied to terminals 1 and 2)

    If the continuity is not as specified, replace the relay.

    Fig 2: Inspecting Power Main Relay Continuity
    G02931918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Driver side door: INSPECT POWER WINDOW MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.

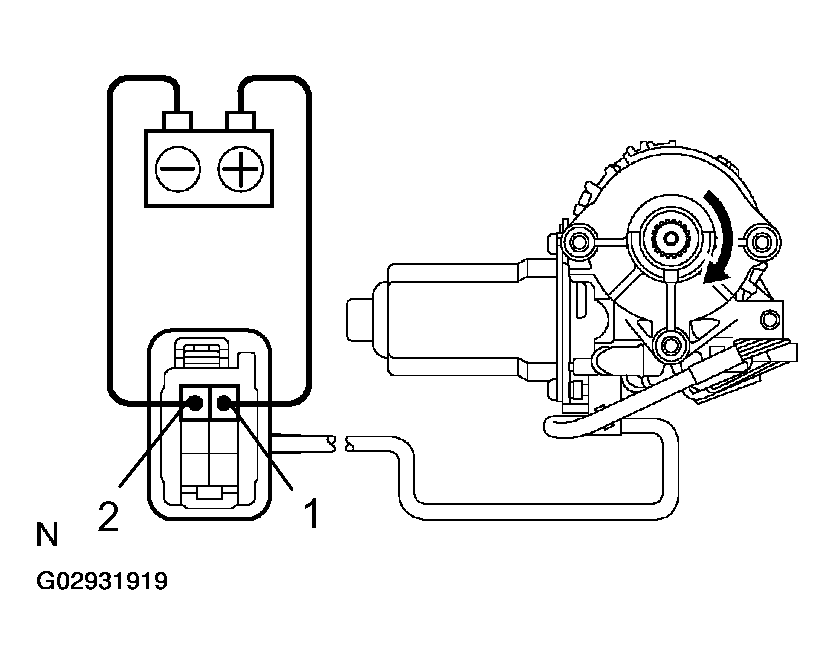

      Fig 3: Checking Motor Turns Clockwise (Driver Side Door)
      G02931919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the motor turns counterclockwise.

      If operation is not as specified, replace the motor.

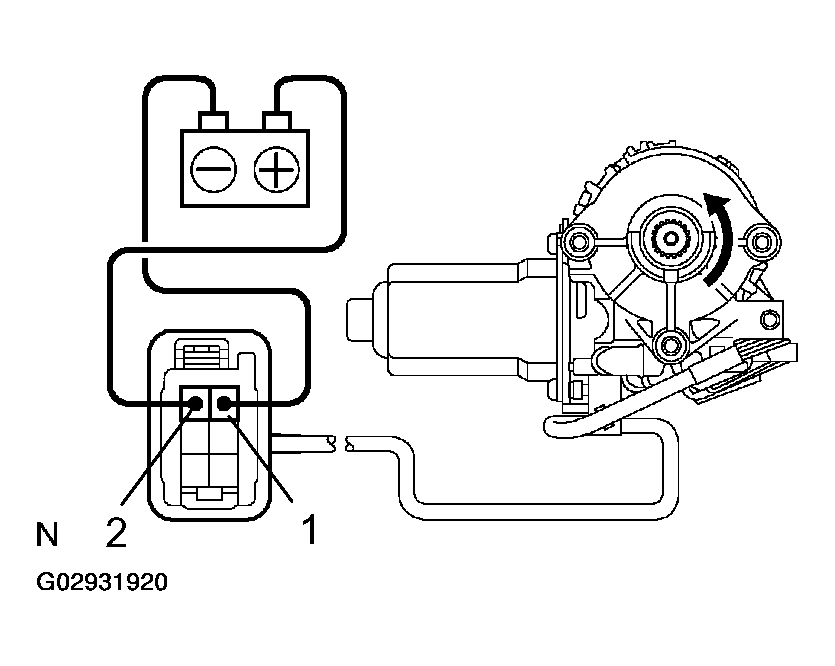

      Fig 4: Checking Motor Turns Counter Clockwise (Driver Side Door)
      G02931920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Passenger side door: INSPECT POWER WINDOW MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns clockwise.
      Fig 5: Checking Motor Turns Clockwise (Passenger Side Door)
      G02931921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the motor turns counterclockwise.

      If operation is not as specified, replace the motor.

      Fig 6: Checking Motor Turns Counter Clockwise (Passenger Side Door)
      G02931922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Rear right door: INSPECT POWER WINDOW MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminals 2, then check that the motor turns clockwise.

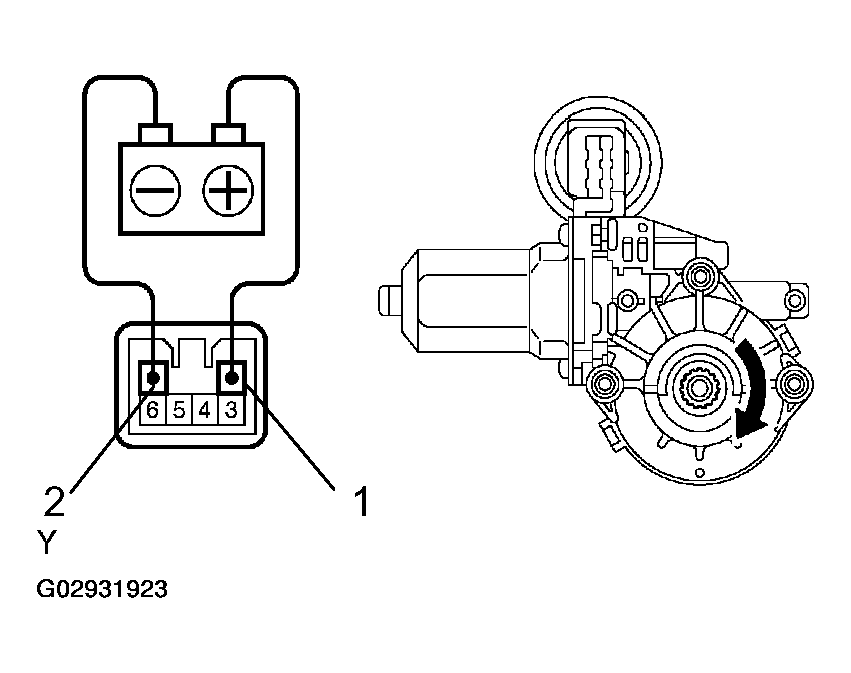

      Fig 7: Checking Motor Turns Clockwise (Rear RH Door)
      G02931923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, and check that the motor turns counterclockwise.

      If operation is not as specified, replace the motor.

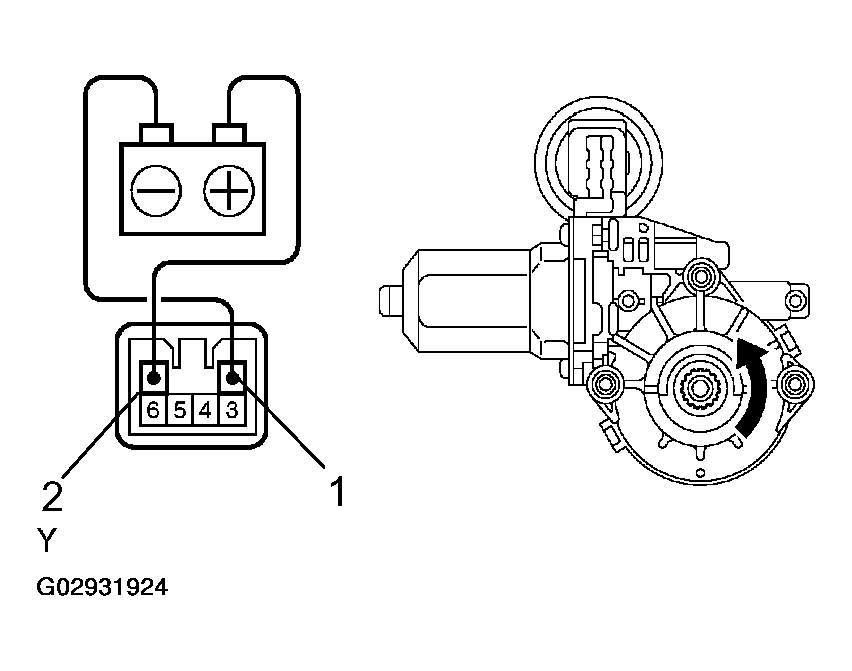

      Fig 8: Checking Motor Turns Counter Clockwise (Rear RH Door)
      G02931924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Rear left door: INSPECT POWER WINDOW MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the motor turns clockwise.

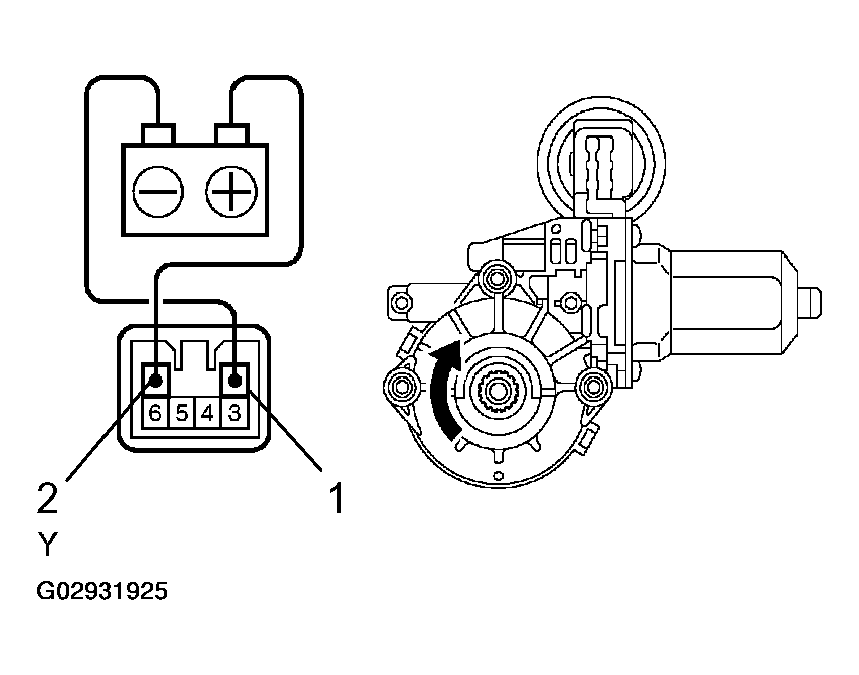

      Fig 9: Checking Motor Turns Clockwise (Rear LH Door)
      G02931925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the motor turns counterclockwise.

      If operation is not as specified, replace the motor.

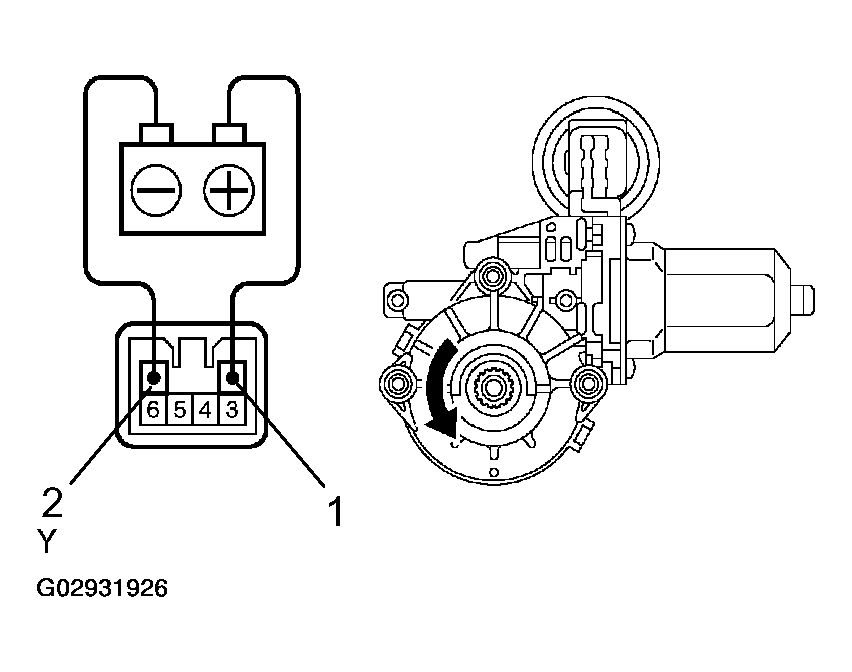

      Fig 10: Checking Motor Turns Counter Clockwise (Rear LH Door)
      G02931926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Driver side door: INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
    1. Disconnect the connector from the motor.
    2. Connect the positive (+) lead from the ammeter to terminal 1 of the motor side connector and the negative (-) lead to negative terminal of the battery.
    3. Connect the positive (+) lead from the battery to terminal 2 of the motor side connector, and raise the window to the fully closed position.
      Fig 11: Inspecting Power Window Motor PTC Thermistor Operation (Driver Side Door)
      G02931927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Continue to apply voltage and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
    5. Disconnect the leads from the terminals.
    6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the window begins to move down.

      If operation is not as specified, replace the motor.

      Fig 12: Connecting Positive Lead To Terminal And Negative Lead To Terminal 2
      G02931928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Passenger side door: INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
    1. Disconnect the connector from the motor.
    2. Connect the positive (+) lead from the ammeter to terminal 2 of the motor connector and the negative (-) lead to negative terminal of the battery.
    3. Connect the positive (+) lead from the battery to terminal 1 of the motor connector, and raise the window to the fully closed position.
      Fig 13: Inspecting Power Window Motor PTC Thermistor Operation (Passenger Side Door)
      G02931929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Continue to apply voltage and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
    5. Disconnect the leads from the terminals.
    6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the window begins to move down.

      If operation is not as specified, replace the motor.

      Fig 14: Connecting Positive Lead To Terminal 2 And Negative Lead To Terminal 1
      G02931930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Rear left door: INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
    1. Disconnect the connector from the motor.
    2. Connect the negative (+) lead from the ammeter to terminal 1 of the motor connector and the negative (-) lead to negative terminal of the battery.
    3. Connect the positive (+) lead from the battery to terminal 2 of the motor connector, and raise the window to the fully closed position.
      Fig 15: Inspecting Power Window Motor PTC Thermistor Operations (Rear LH Door)
      G02931931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Continue to apply voltage and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
    5. Disconnect the leads from the terminals.
    6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the window begins to move down.

      If operation is not as specified, replace the motor.

      Fig 16: Connecting Battery Negative Lead To Terminal 2 And Positive Lead To Terminal 1
      G02931932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Rear right door: INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
    1. Disconnect the connector from the motor.
    2. Connect the negative (+) lead from the ammeter to terminal 2 of the motor connector and the negative (-) lead to negative terminal of the battery.
    3. Connect the positive (+) lead from the battery to terminal 1 of the motor connector, and raise the window to the fully closed position.
      Fig 17: Inspecting Power Window Motor PTC Thermistor Operation (Rear RH Door)
      G02931933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Continue to apply voltage and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
    5. Disconnect the leads from the terminals.
    6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the window begins to move down.

      If operation is not as specified, replace the motor.

      Fig 18: Connecting Battery Positive Lead To Terminal 2 And Negative Lead To Terminal 1
      G02931934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
