Throttle W/Motor Body ASSY (1GR-FE): Replacement

DRAIN ENGINE COOLANT (1GR-FE)
REMOVE V-BANK COVER
1. Remove the 2 nuts and V-bank cover.

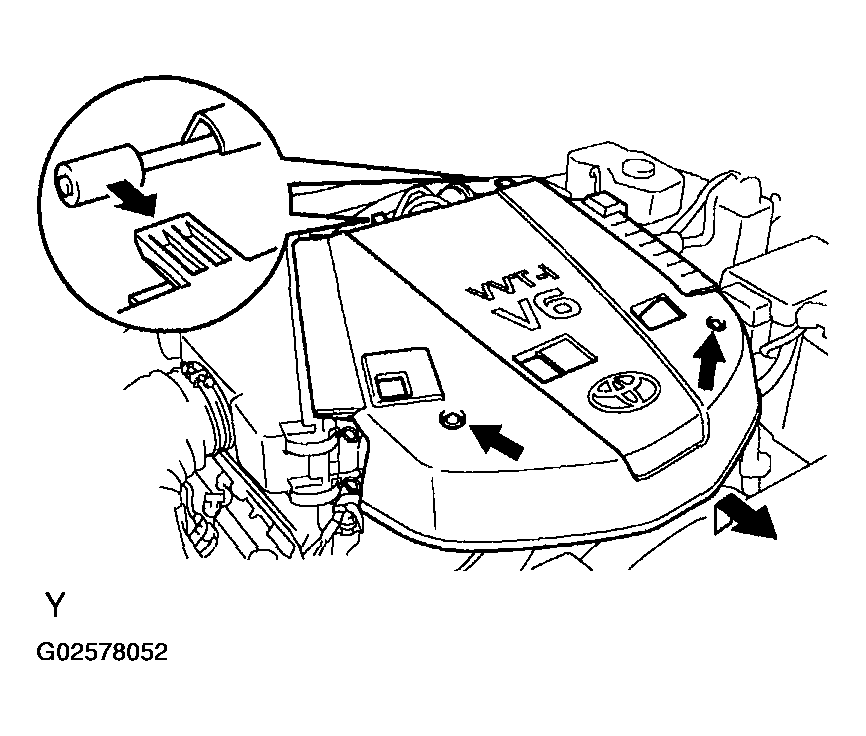

Fig 1: Removing V-Bank Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT VENTILATION HOSE NO. 2

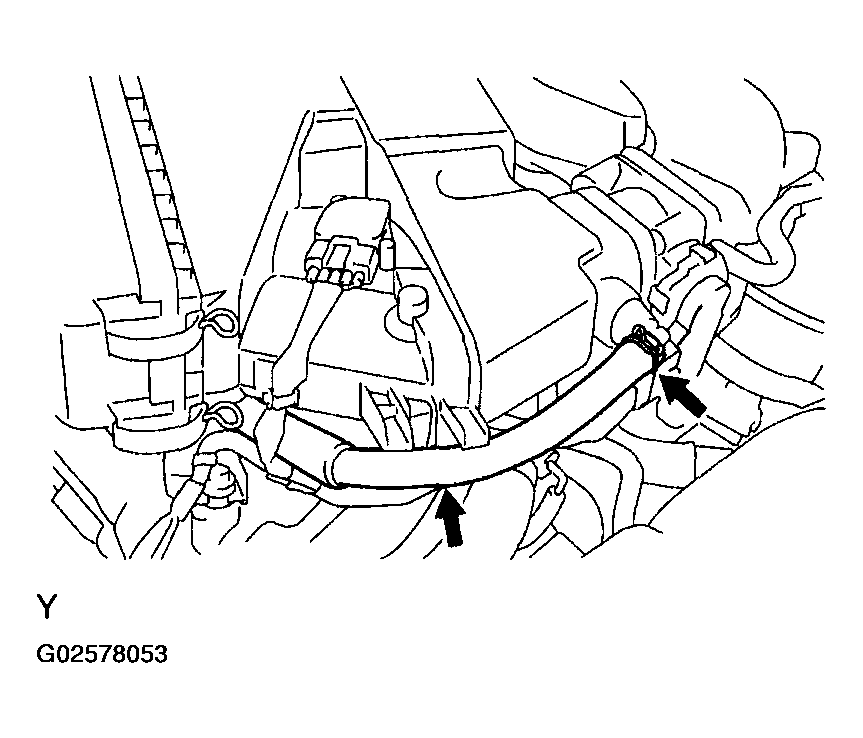

Fig 2: Disconnecting Ventilation Hose No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER ASSY
1. Disconnect the vacuum hose.

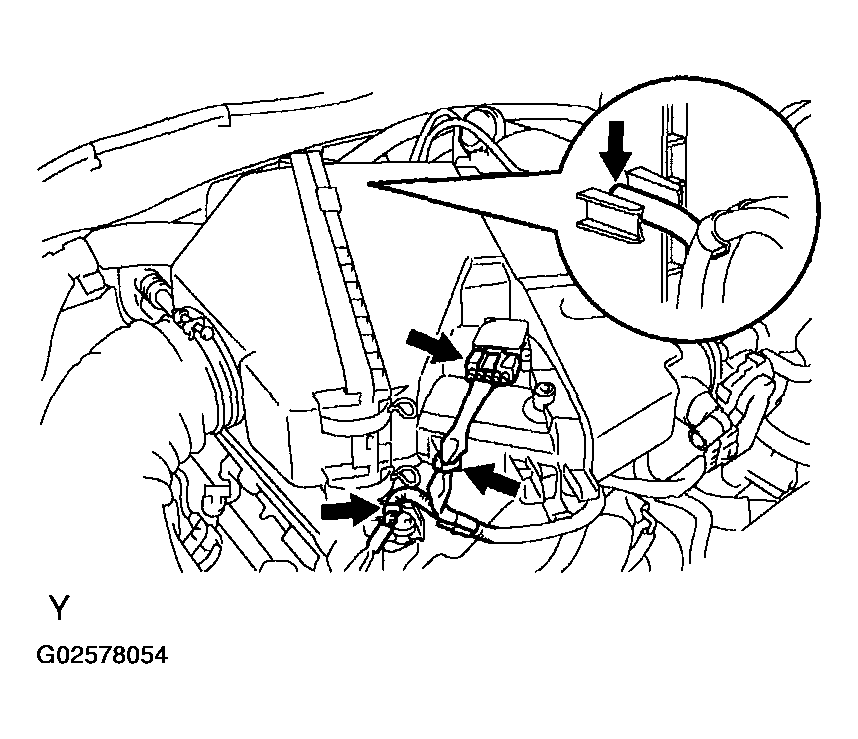

  Fig 3: Disconnecting Vacuum Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the mass air flow meter connector.
3. Remove the 2 wire harness clamps.
4. Loosen the 2 hose clamps.
5. Remove the 2 bolts and air cleaner

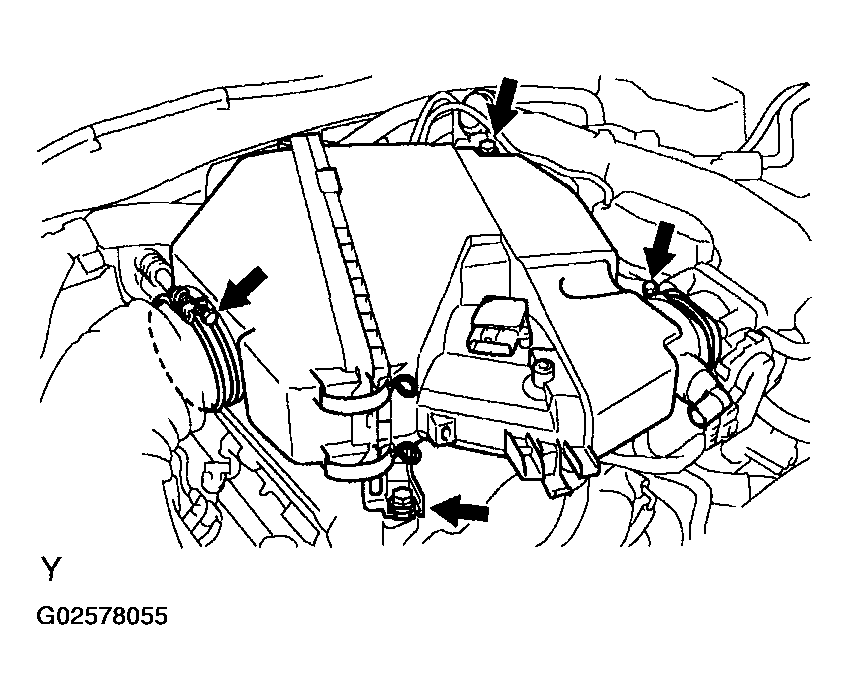

Fig 4: Removing Air Cleaner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER BY-PASS HOSE NO. 5

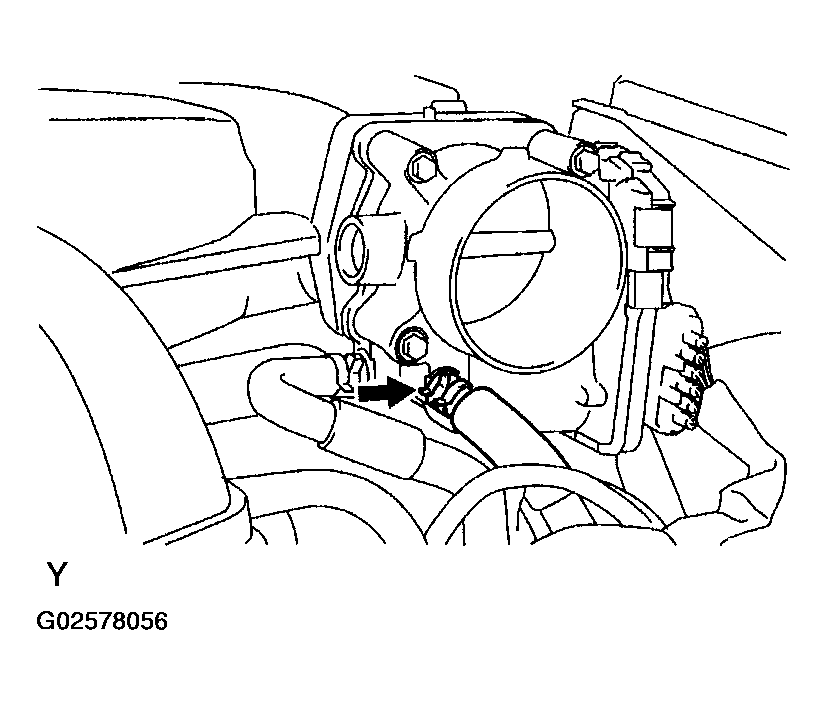

Fig 5: Disconnecting Water By-Pass Hose No. 5
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER BY-PASS HOSE NO. 4

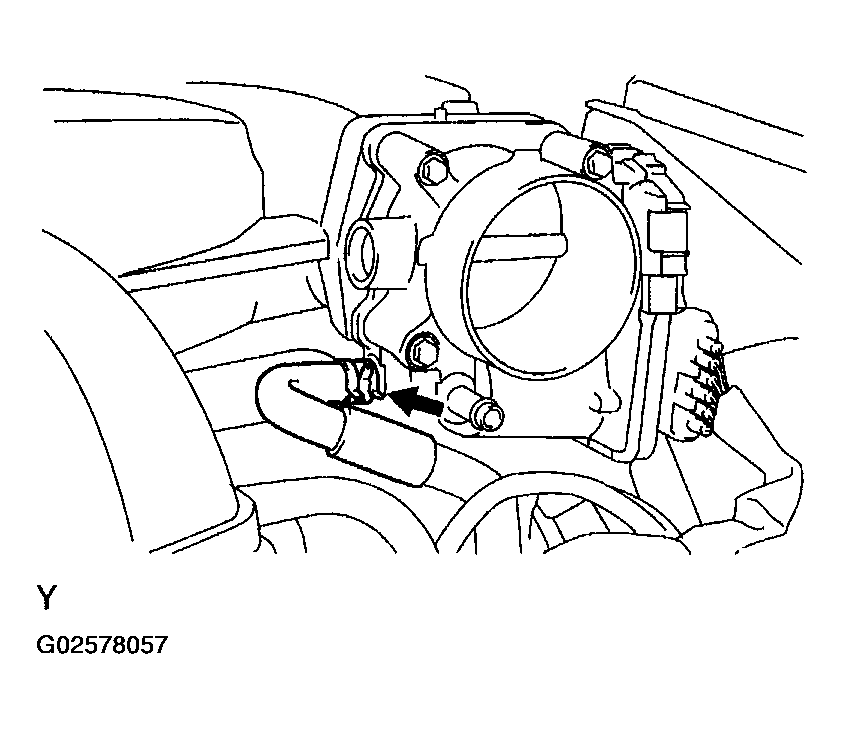

Fig 6: Disconnecting Water By-Pass Hose No. 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE W/MOTOR BODY ASSY
1. Disconnect the throttle motor connector.
2. Remove the 4 bolts, throttle w/ motor body and gasket.

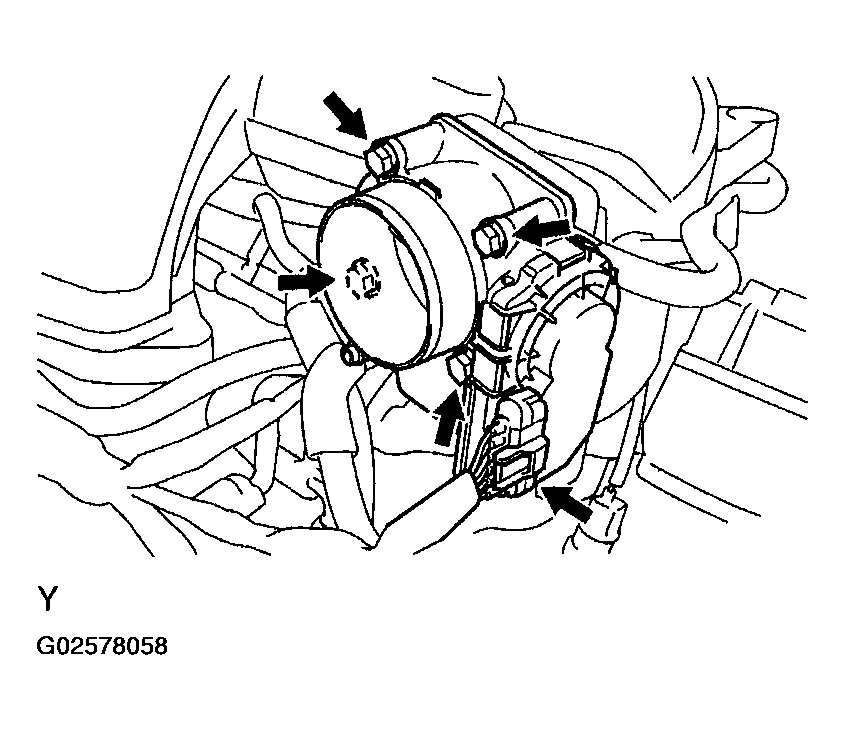

Fig 7: Removing Throttle W/Motor Body Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE W/MOTOR BODY ASSY
1. Install a new gasket and the throttle w/ motor body with the 4 bolts.
  Torque: 11 N.m (112 kgf.cm, 9 ft.lbf)
2. Connect the throttle motor connector.
CONNECT WATER BY-PASS HOSE NO. 4
CONNECT WATER BY-PASS HOSE NO. 5
INSTALL AIR CLEANER ASSY
1. Install the air cleaner with the 2 bolts.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
CONNECT VENTILATION HOSE NO. 2
INSTALL V-BANK COVER
1. Install the V-bank cover with the 2 nuts.
  Torque: 7.5 N.m (76 kgf.cm, 66 in. lbf)
ADD ENGINE COOLANT (1GR-FE)
CHECK FOR ENGINE COOLANT LEAKS (See COOLING SYSTEM (1GR-FE) )
