Throttle W/Motor Body ASSY (2UZ-FE): Replacement

DRAIN ENGINE COOLANT (2UZ-FE)
REMOVE THROTTLE BODY COVER SUB-ASSY
1. Remove the 2 nuts and throttle body cover sub-assy.
REMOVE AIR CLEANER HOSE ASSY
1. Disconnect the vacuum hoses (for the P/S idle-up and fuel pressure regulator) and ventilation hose.
2. Remove the air cleaner hose assy.
REMOVE THROTTLE W/MOTOR BODY ASSY
1. Disconnect the water by-pass hose, water by-pass hose No. 7 and the throttle position sensor connector.

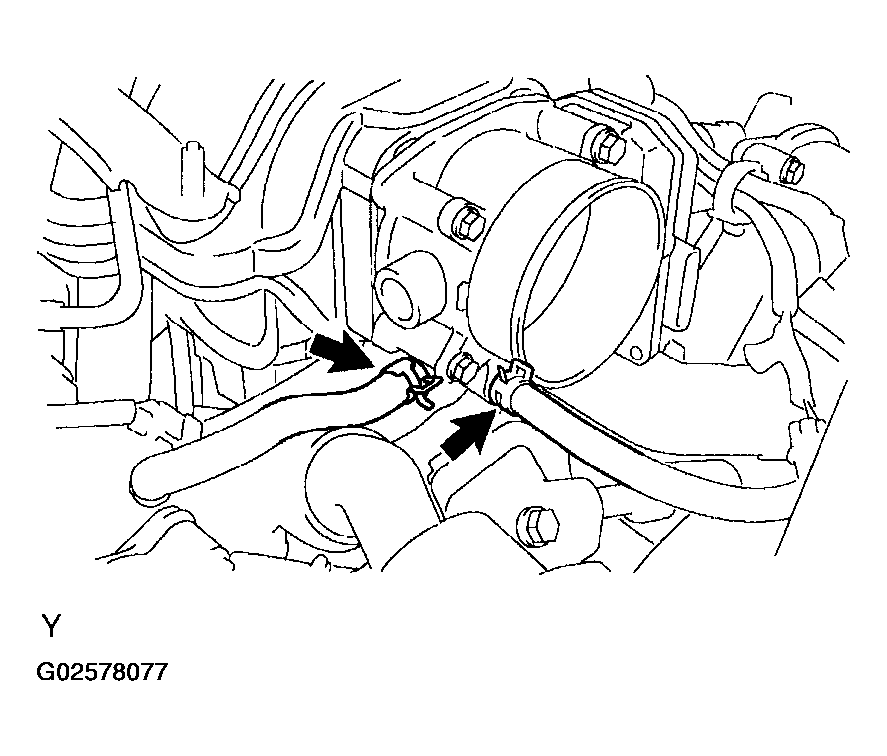

  Fig 1: Disconnecting Water By-Pass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and nut.
3. Remove the throttle body and the throttle body gasket.

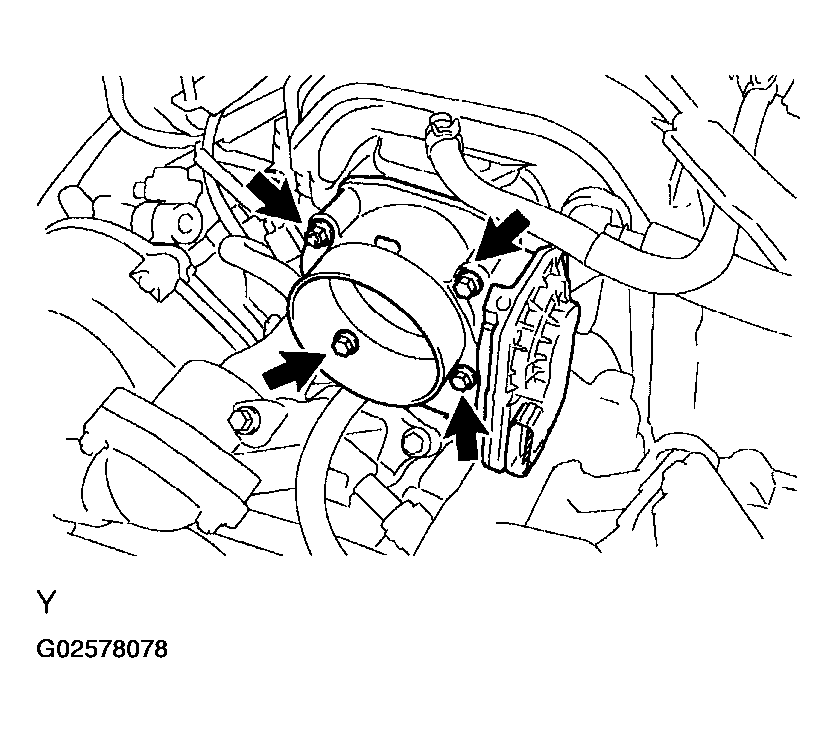

Fig 2: Removing Throttle Body And Throttle Body Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE W/MOTOR BODY ASSY
1. Install a new gasket and the throttle body with the 3 bolts and nut.
  Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)
2. Connect the water by-pass hose, water by-pass hose No. 7 and throttle position sensor connector.
INSTALL AIR CLEANER HOSE ASSY
ADD ENGINE COOLANT (2UZ-FE)
CHECK FOR ENGINE COOLANT LEAKS (SEE COOLING SYSTEM (2UZ-FE) )
INSTALL THROTTLE BODY COVER SUB-ASSY
1. Install the throttle body cover sub-assy with the 2 nuts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
