Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Problem Symptoms Table
>>
Audio function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Audio function

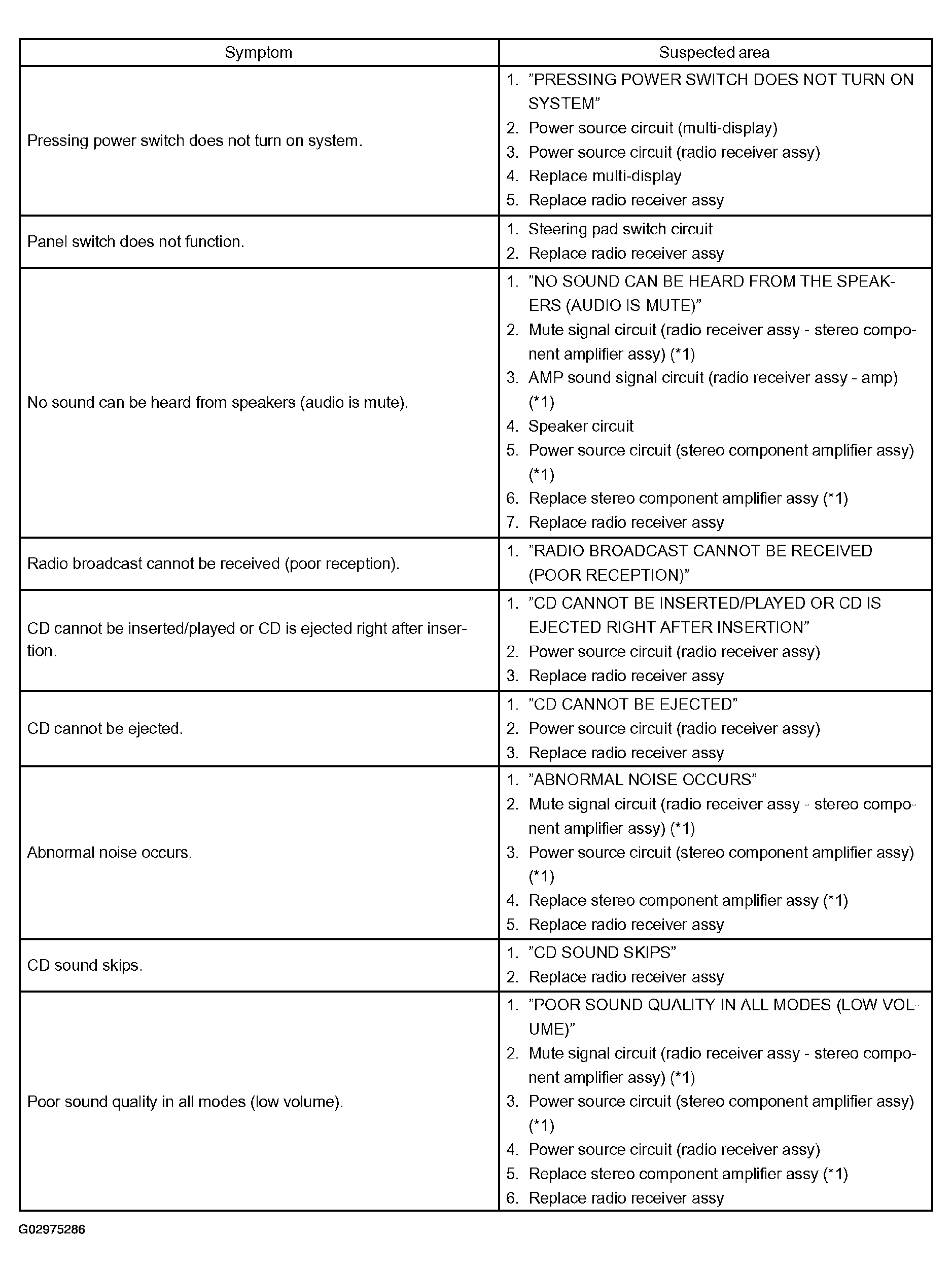

Fig 1: Audio Function Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
