Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows the status of a switch, sensor, actuator and other items to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch on (IG).
3. Read the DATA LIST.

   D_SEAT (Power Seat ECU):

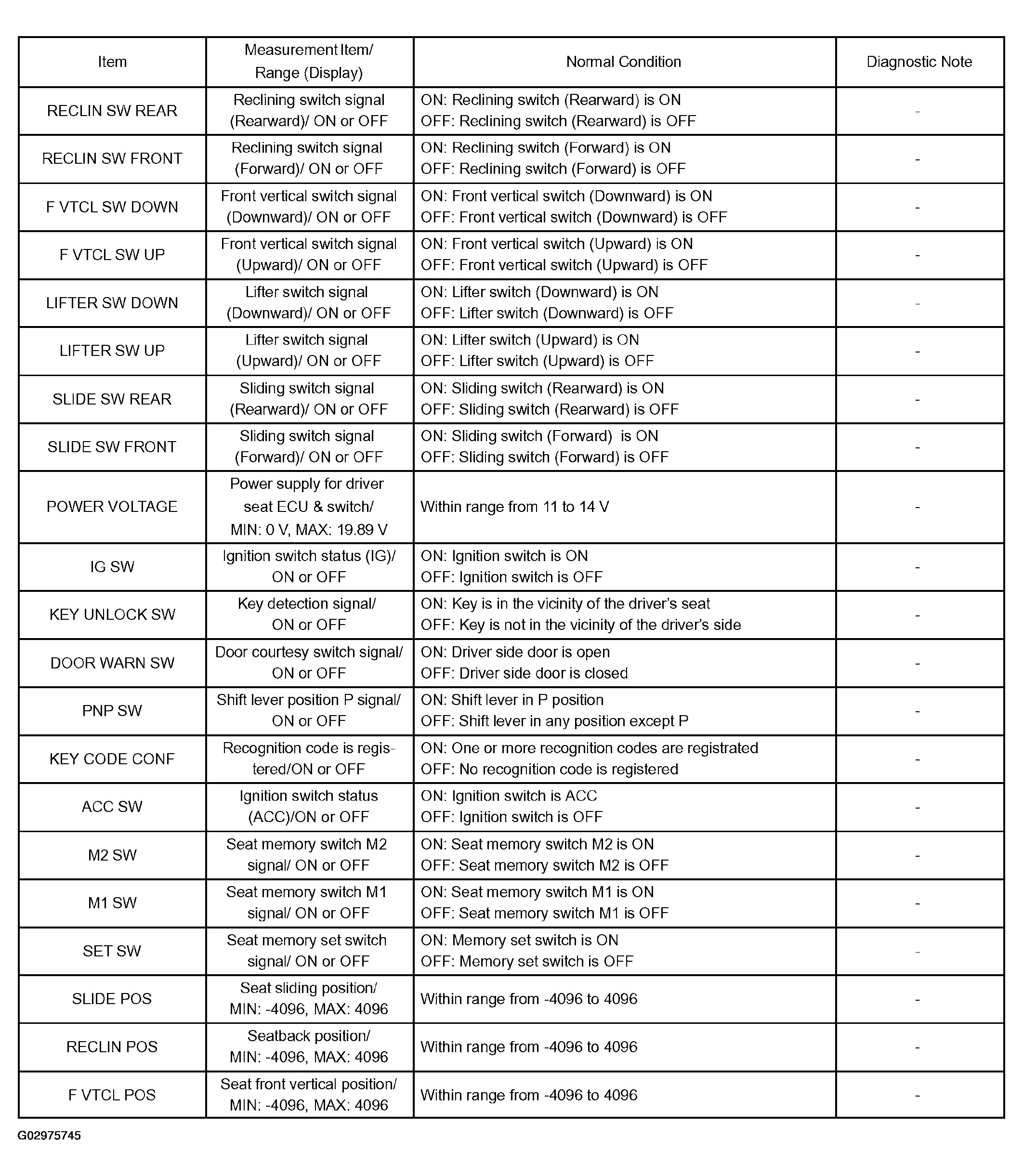

   Fig 1: Data List - Power Seat ECU (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

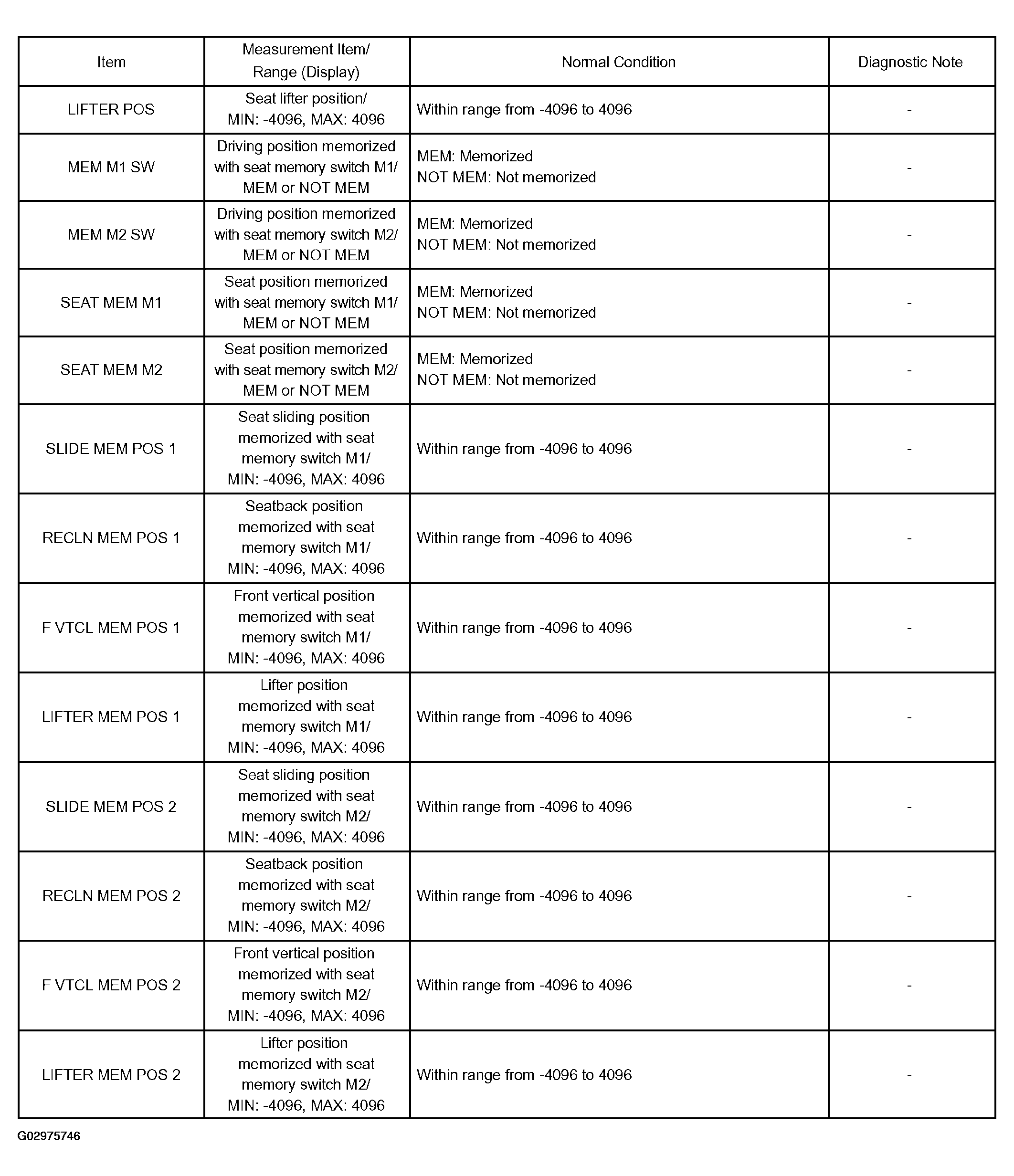

   Fig 2: Data List - Power Seat ECU (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Using the hand-held tester's ACTIVE TEST allows the relay, VSV, actuator, and other items to be operated without removing any parts. Reading the ACTIVE TEST early in troubleshooting is one way to save time.

The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch on (IG).
3. Perform the ACTIVE TEST by following the directions on the tester screen.

   D_SEAT (Power Seat ECU):

   DIAGNOSTIC NOTE



   Item	Test Details	Diagnostic Note
   RECLINING	Test detail: reclining operation FRONT/REAR Vehicle condition: stopped	-
   F VERTICAL	Test detail: front vertical operation UP/DOWN Vehicle condition: stopped	-
   LIFTER	Test detail: lifter operation UP/DOWN Vehicle condition: stopped	-
   SLIDE	Test detail: sliding operation UP/DOWN Vehicle condition: stopped	-
