Diagnostic Trouble Code Chart
>>
Smart Key
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Smart Key

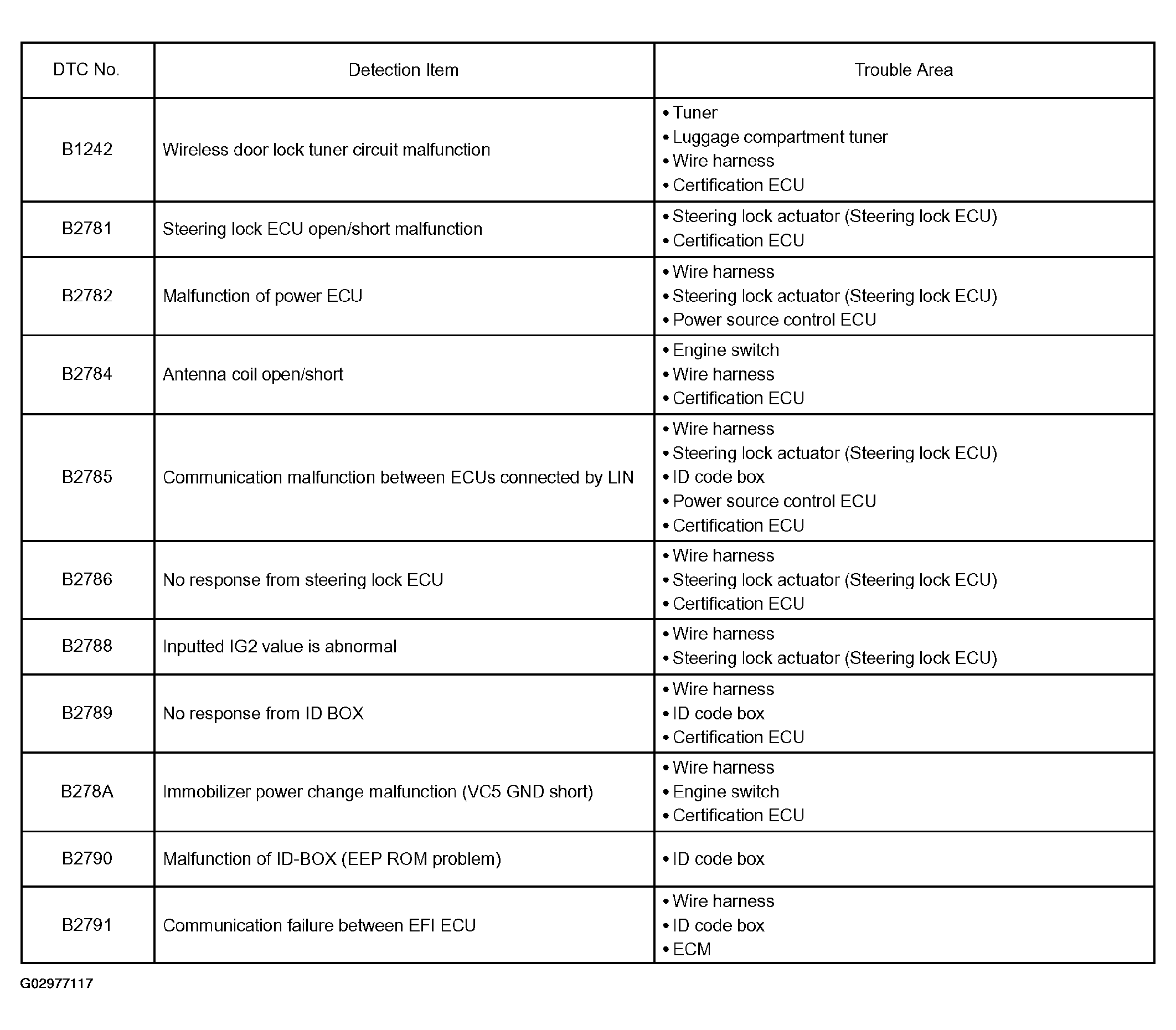

Fig 1: Smart Key Diagnostic Trouble Code Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
