Inspection Procedure
- READ VALUE OF HAND-HELD TESTER
- Connect the hand-held tester to the DLC3.
- Turn the engine switch on (IG).
- Following the display on the tester, select "DATA LIST".
SMART KEY (Certification ECU):
SMART KEY (Certification ECU) DATA LISTItem Measurement Item/Range (Display) Normal Condition Diagnostic Note D TOUCH SENSOR Status of touch sensor front LH/ON or OFF ON: Touch sensor is touched - D TOUCH SENSOR Status of touch sensor front LH/ON or OFF OFF: Touch sensor is not touched - P TOUCH SENSOR Status of touch sensor front RH/ON or OFF ON: Touch sensor is touched - P TOUCH SENSOR Status of touch sensor front RH/ON or OFF OFF: Touch sensor is not touched - DR TOUCH SENSOR Status of touch sensor rear LH/ON or OFF ON: Touch sensor is touched - DR TOUCH SENSOR Status of touch sensor rear LH/ON or OFF OFF: Touch sensor does not touched - DP TOUCH SENSOR Status of touch sensor rear RH/ON or OFF ON: Touch sensor is touched - DP TOUCH SENSOR Status of touch sensor rear RH/ON or OFF OFF: Touch sensor does not touched - OK:
"ON" (screen is touched) appears on the tester screen.
- OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- NG : Go to next step.

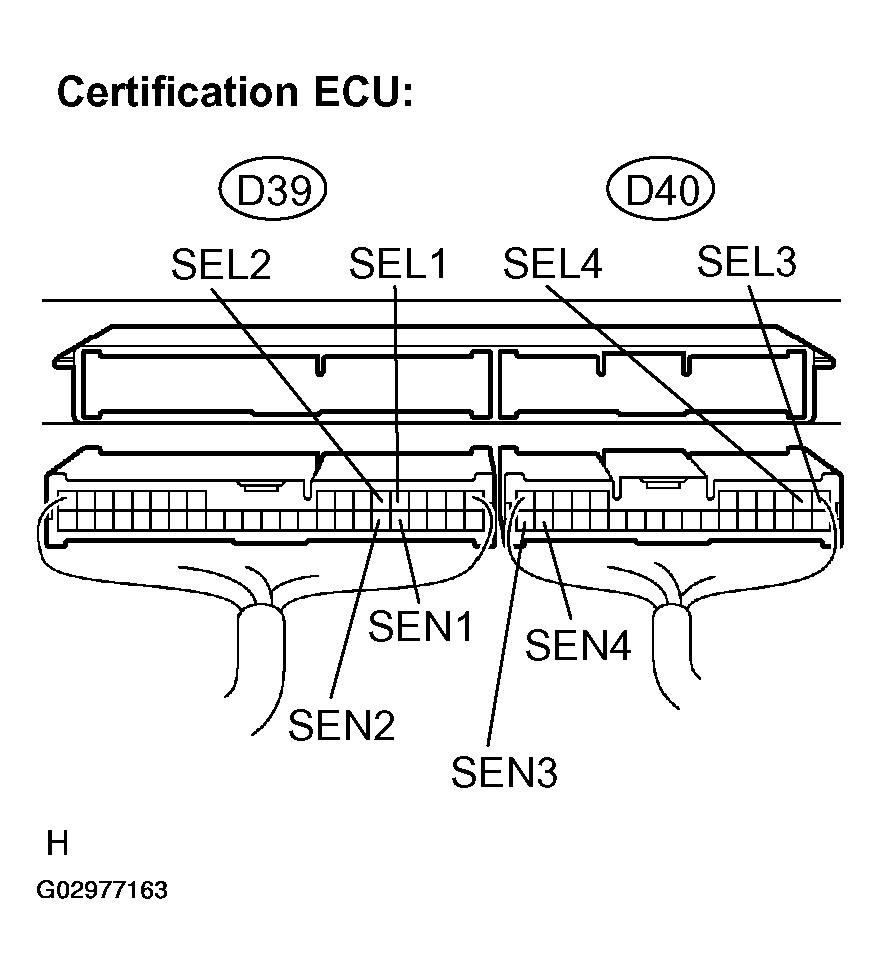

- CHECK WIRE HARNESS (CERTIFICATION ECU - DOOR OSCILLATOR)
- Disconnect the D39 and D40 ECU connector.
- Disconnect the oscillator connectors.
- Measure the resistance between the oscillator and the certification ECU to check for an open circuit in the wire harness.
Standard: Below 1 Ω
- Measure the resistance between the oscillator and the certification ECU to check for an short circuit in the wire harness.
Standard: 10 kΩ or higher
HINT:
Refer to the wiring diagram for connection of each terminal.
- NG : REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
- OK : Go to next step.
- INSPECT CERTIFICATION ECU
- Reconnect the ECU and the oscillator connectors.
- Connect the hand-held tester to the DLC3.
- Turn the engine switch on (IG).

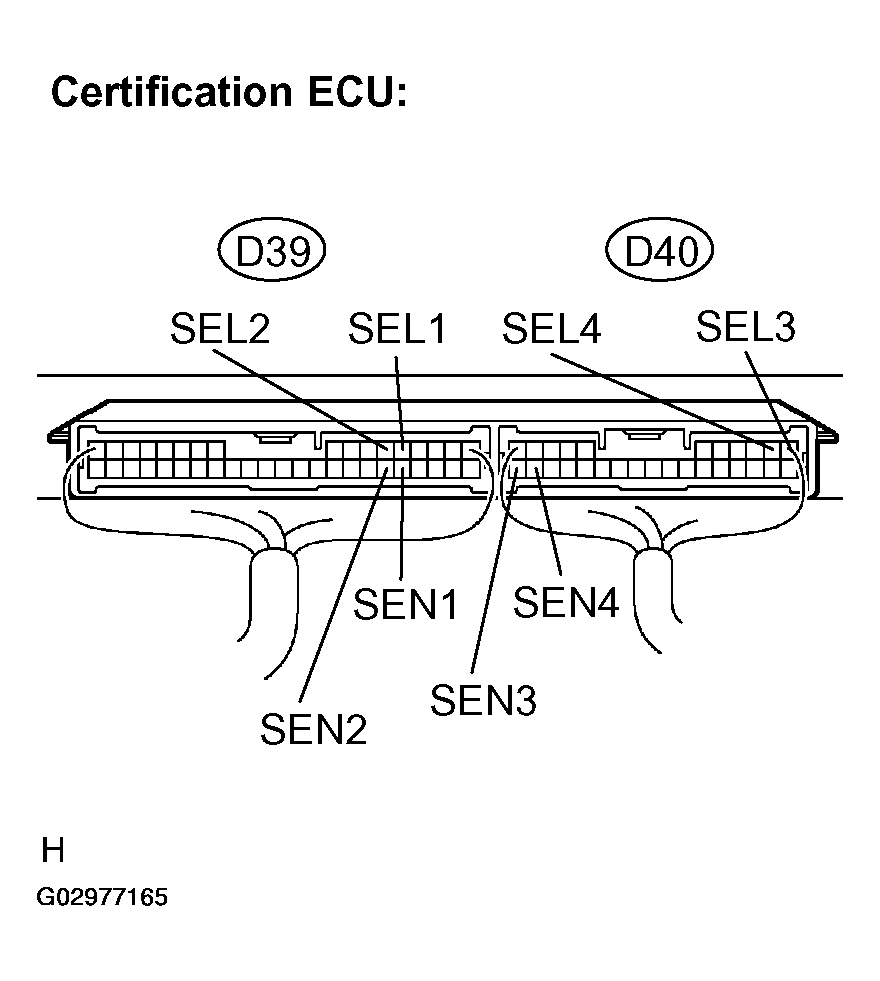

- Measure the voltage according to the value (s) in the table below.
Standard:
CERTIFICATION ECU VOLTAGETester Connection Condition Specified Condition SEL1 (D39-5) - Body ground Move the key more than 5 m (16.4 ft) away from the front door LH --> Bring it to the outside handle 10 to 14 V --> Below 1 V SEL2 (D39-6) - Body ground Move the key more than 5 m (16.4 ft) away from the front door RH --> Bring it to the outside handle 10 to 14 V --> Below 1 V SEL3 (D40-1) - Body ground Move the key more than 5 m (16.4 ft) away from the rear door LH --> Bring it to the outside handle 10 to 14 V --> Below 1 V SEL4 (D40-2) - Body ground Move the key more than 5 m (16.4 ft) away from the rear door RH --> Bring it to the outside handle 10 to 14 V --> Below 1 V SEN1 (D39-22) - Body ground Front door LH outside handle is not held --> Front door LH outside handle is held 10 to 14 V --> Below 1 V SEN2 (D39-23) - Body ground Front door LH outside handle is not held --> Front door LH outside handle is held 10 to 14 V --> Below 1 V SEN4 (D40-27) - Body ground Rear door LH outside handle is not held --> Rear door LH outside handle is held 10 to 14 V --> Below 1 V SEN3 (D40-28) - Body ground Rear door LH outside handle is not held --> Rear door LH outside handle is held 10 to 14 V --> Below 1 V
- OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- NG : Go to next step.
- REPLACE DOOR OSCILLATOR (CHECK OPERATION OF DOOR OSCILLATOR)
- Replace the door oscillator.
- Check that the entry UNLOCK function operates normally.
OK:
Entry UNLOCK function operates normally.
- NG : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- OK : END (DOOR OSCILLATOR IS DEFECTIVE)
