System Diagram

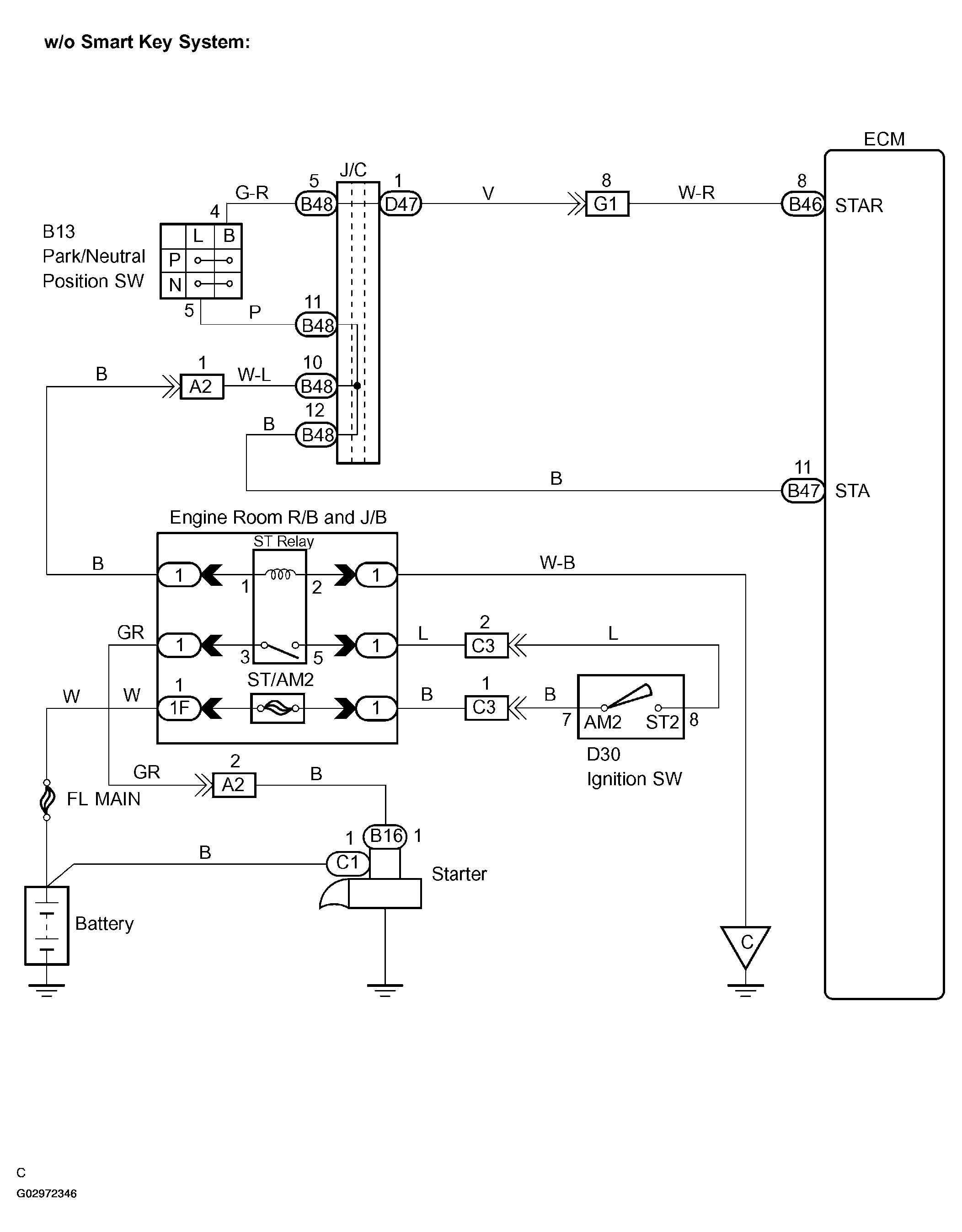

Fig 1: System Diagram W/O Smart Key System
G02972346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

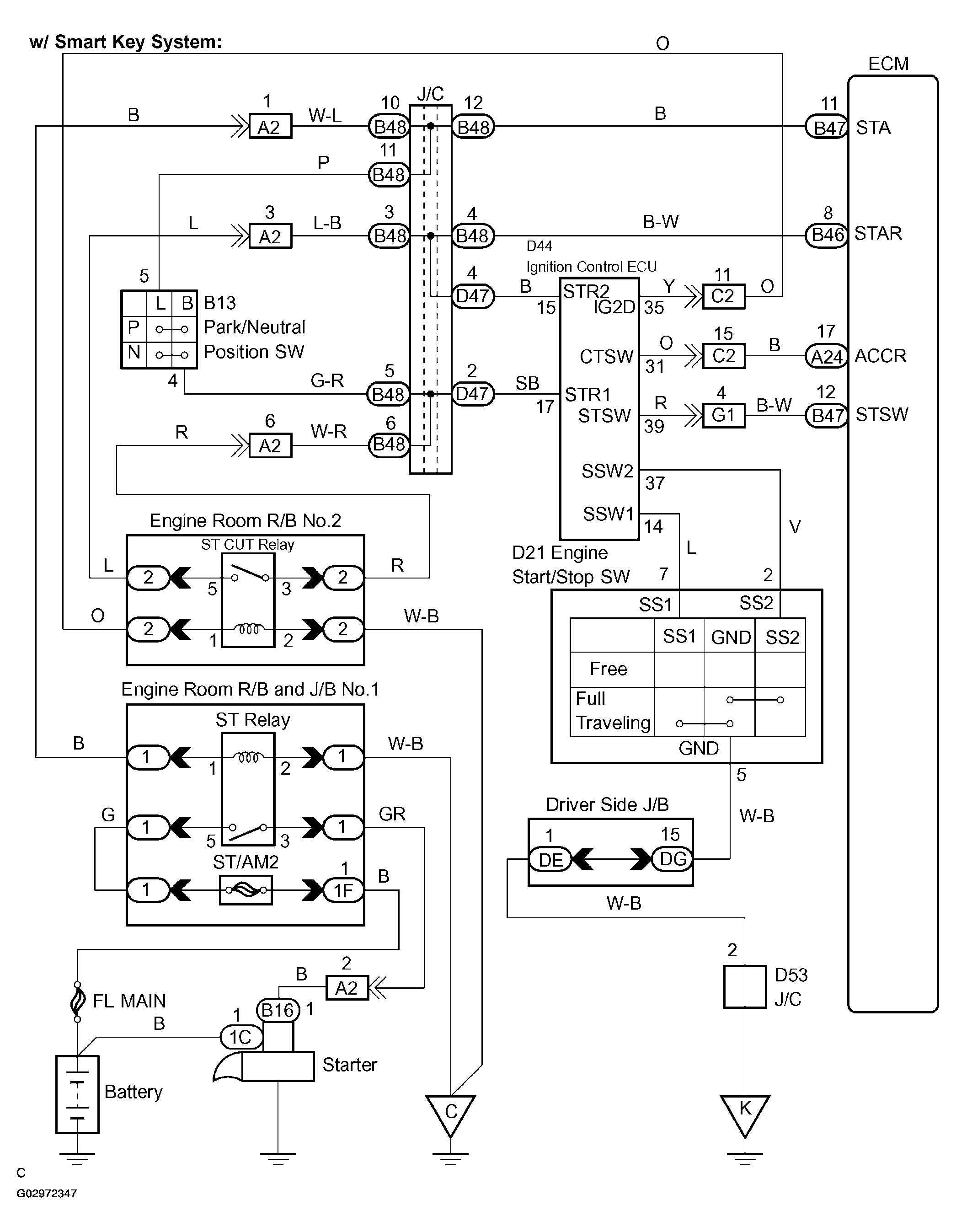

Fig 2: System Diagram With Smart Key System
G02972347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
