Power Steering: Preparation: SST: Notes

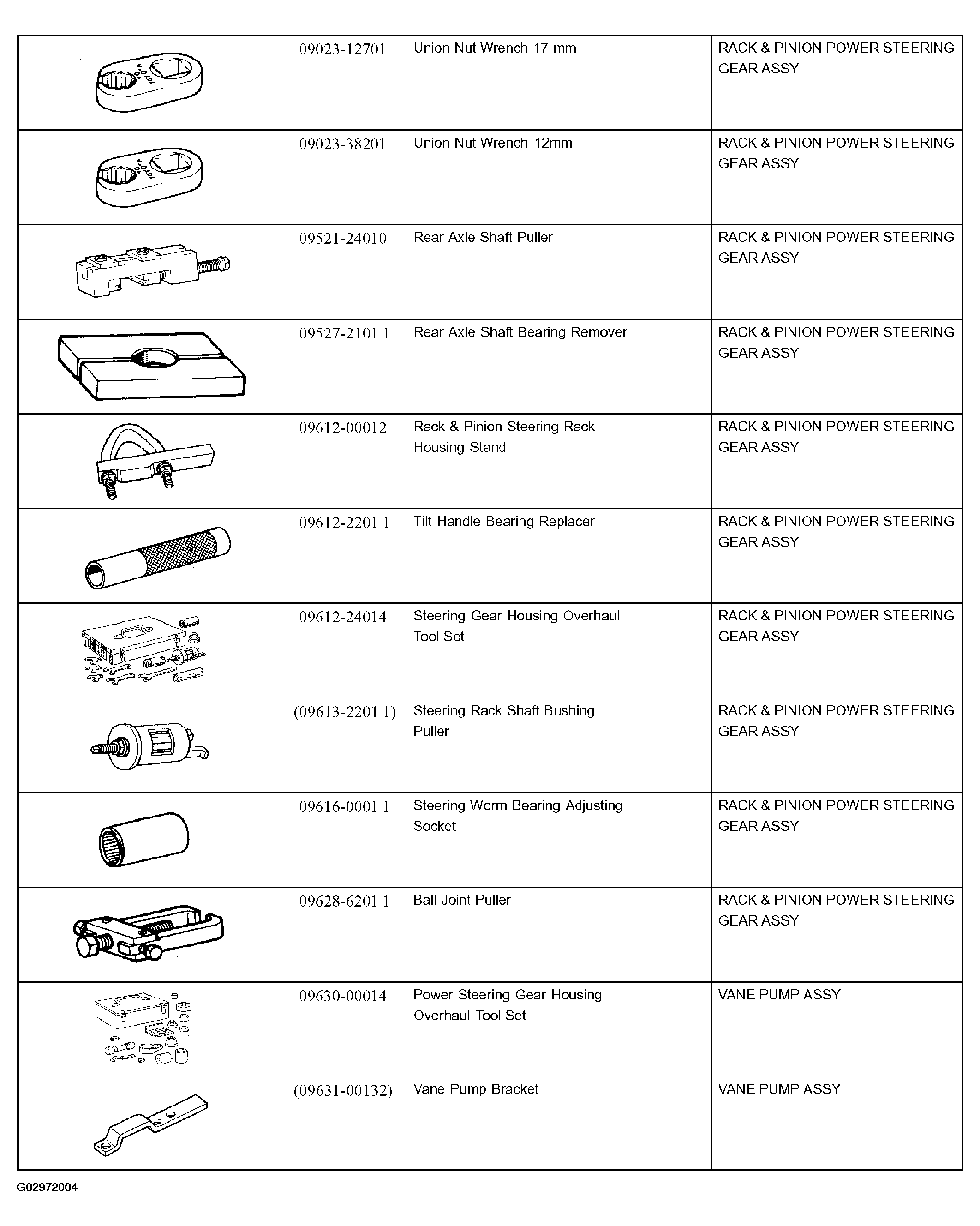

Fig 1: Identifying SST Tool (1 Of 3)
G02972004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

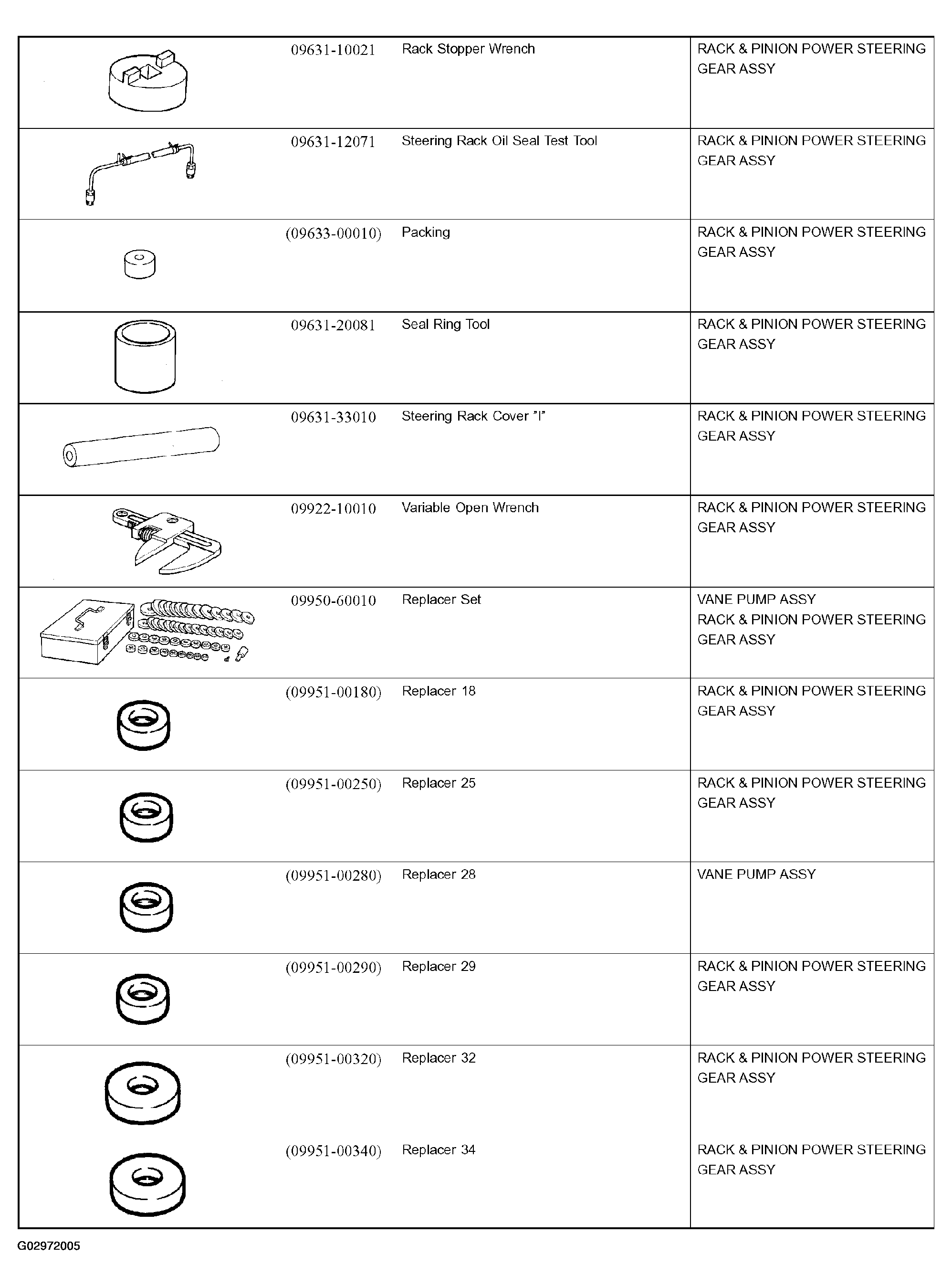

Fig 2: Identifying SST Tool (2 Of 3)
G02972005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

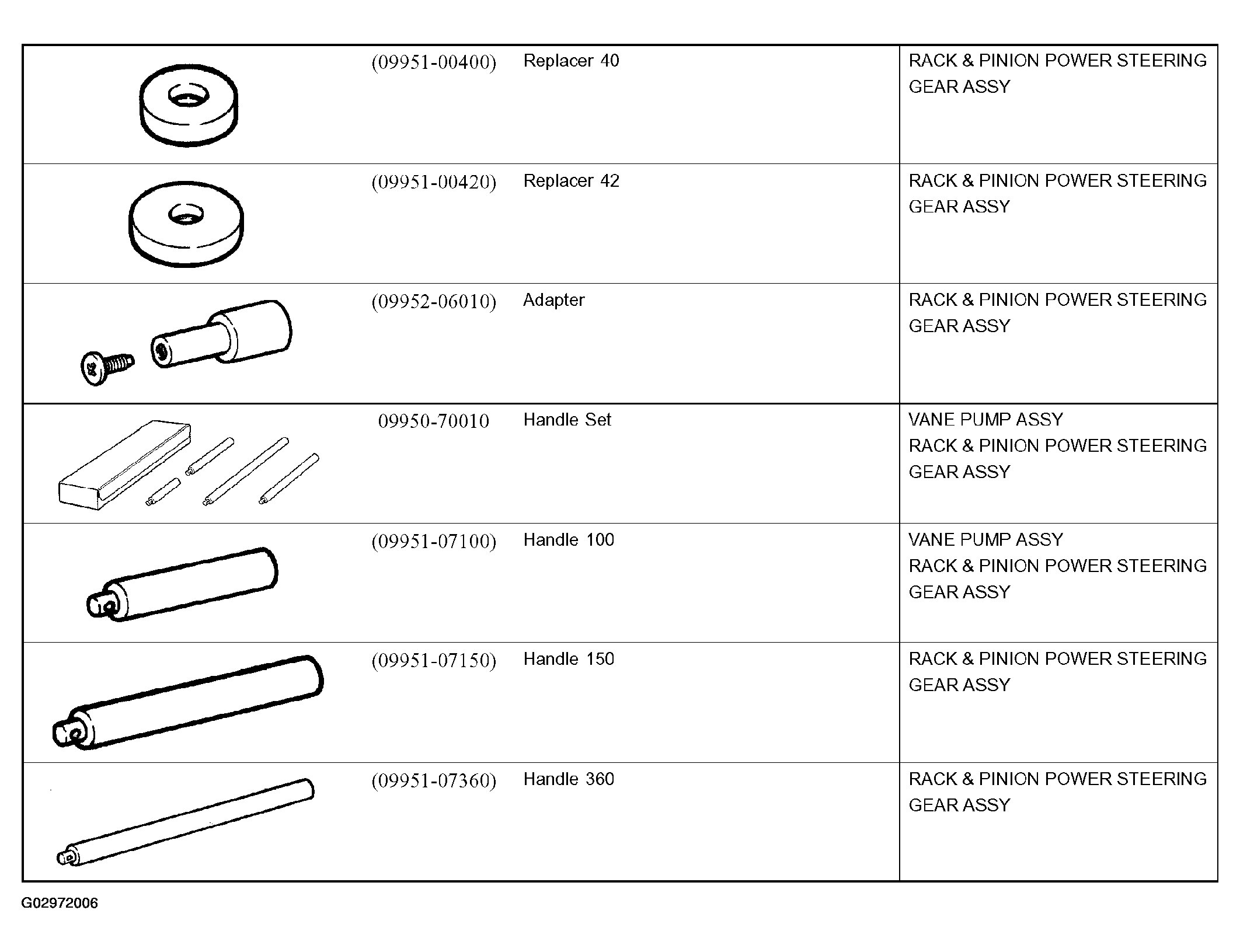

Fig 3: Identifying SST Tool (3 Of 3)
G02972006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
