Cruise Control Main Switch: Replacement

HINT:

Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )

   Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  REPLACEMENT  )
3. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  REPLACEMENT  )
4. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
5. REMOVE CRUISE CONTROL MAIN SWITCH
   1. Disconnect the connector.
   2. Remove the 2 screws.

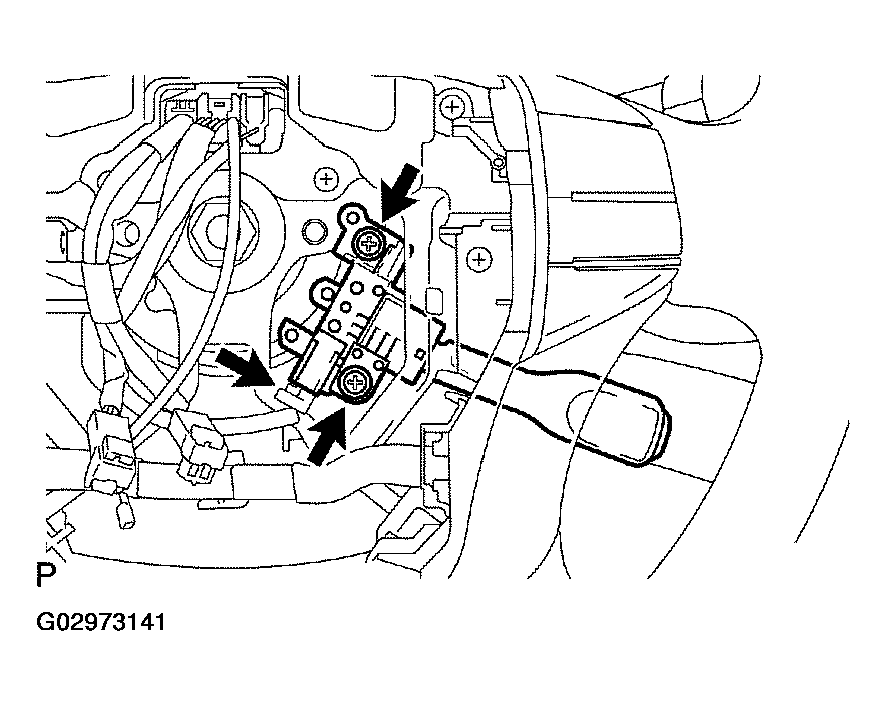

      Fig 1: Removing Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Pull out the cruise control main switch assy in the direction shown by the arrow in the illustration.

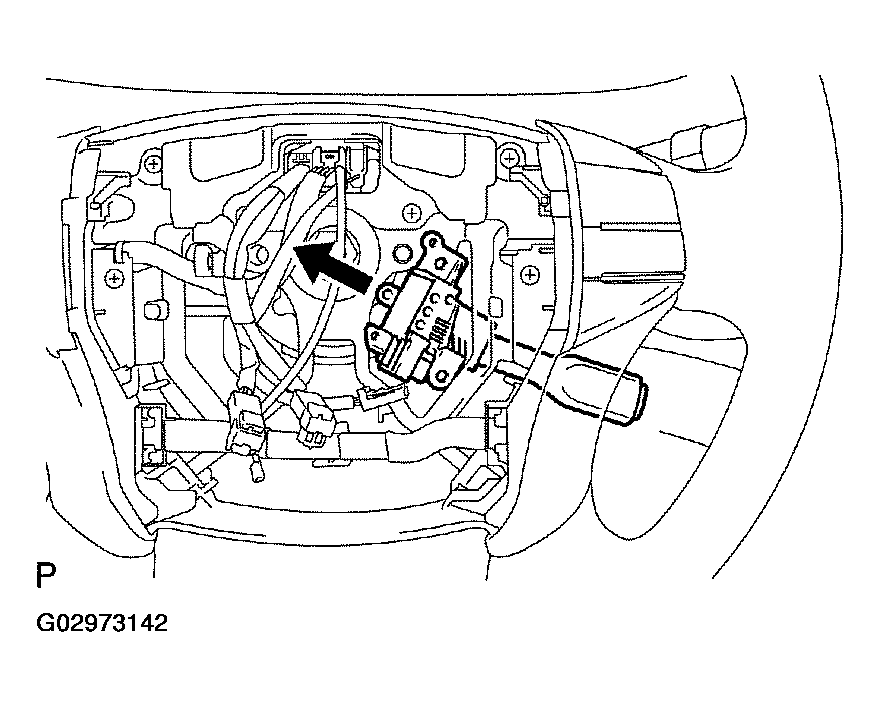

      Fig 2: Pulling Out Cruise Control Main Switch Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL CRUISE CONTROL MAIN SWITCH
   1. Install the cruise control main switch assy with the 2 screws.

      Torque: 2.35 N.m (24 kgf.cm, 21 in.lbf)

   2. Connect the connector.
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

   Some systems need initialization when disconnecting the cable from the negative battery terminal.

10. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
11. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
