Laser Sensor: Replacement

HINT:

Installation is in the reverse order of removal.

1. REMOVE RADIATOR GRILLE SUB-ASSY (SEE  REPLACEMENT  )
2. REMOVE FRONT BUMPER ASSY (SEE  REPLACEMENT  )
3. REMOVE FRONT BUMPER ENERGY ABSORBER (SEE  REPLACEMENT  )
4. REMOVE FRONT BUMPER REINFORCEMENT (SEE  REPLACEMENT  )
5. REMOVE LASER SENSOR
   1. Disengage the clamp, then remove the laser sensor.

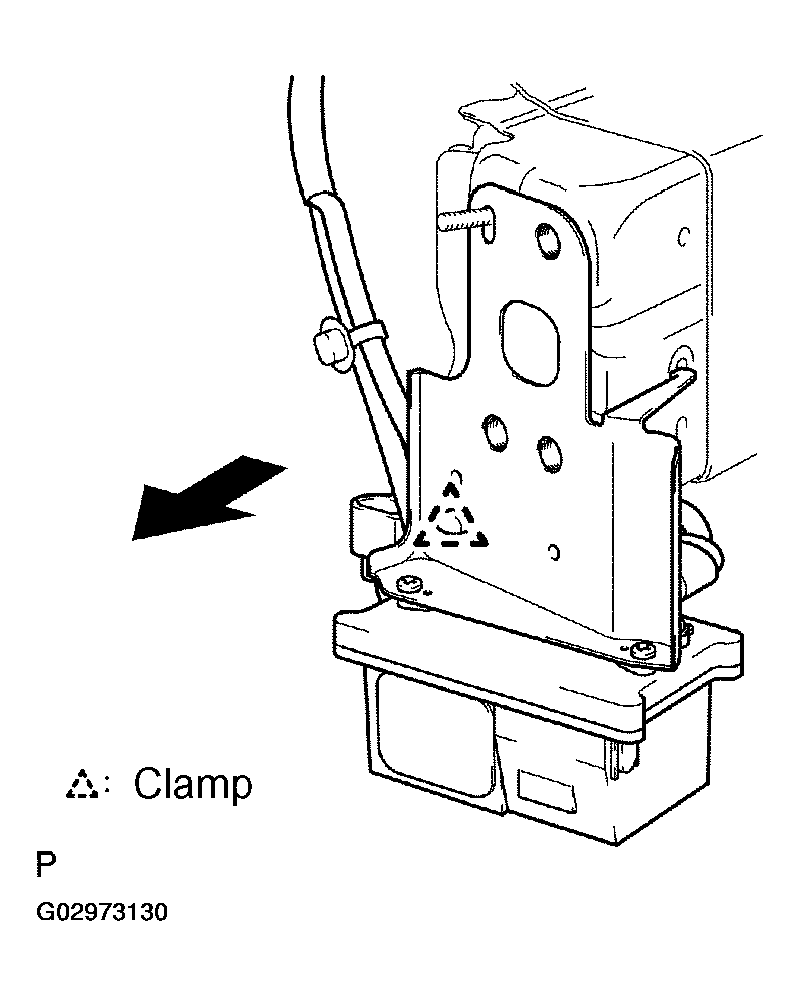

      Fig 1: Removing Laser Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL LASER SENSOR
   1. Install the laser sensor so that the claw contacts the flat surface around the hole on the front bumper mounting reinforcement.
      NOTE: Do not insert the claw into the hole on the front bumper mounting reinforcement.
   2. Engage the clamp.

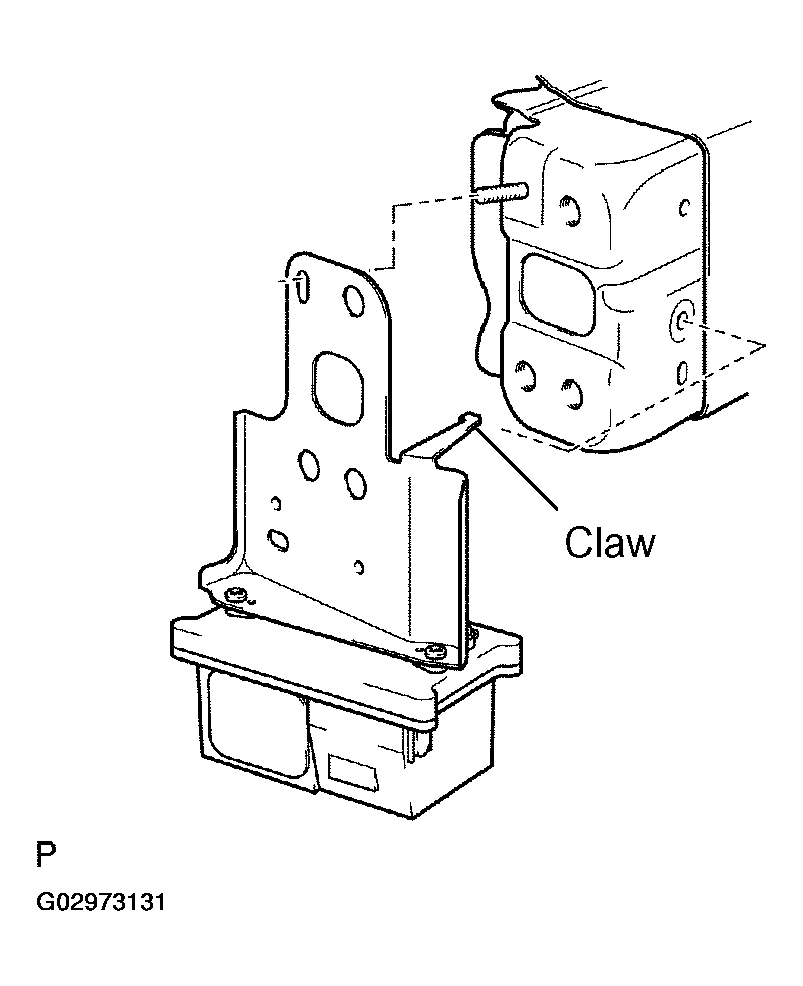

      Fig 2: Removing Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT BUMPER REINFORCEMENT (SEE  REPLACEMENT  )
8. ADJUST LASER SENSOR (SEE  ADJUSTMENT   )
