Cruise Control System: Replacement

HINT:

Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )

   Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL FINISH PLATE (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL SUB-ASSY (SEE  REPLACEMENT  )
5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (SEE  REPLACEMENT  )
6. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE  REPLACEMENT  )
7. REMOVE DISTANCE CONTROL ECU ASSY
   1. Disconnect the connector.
   2. Remove the bolt and the distance control ECU assy.

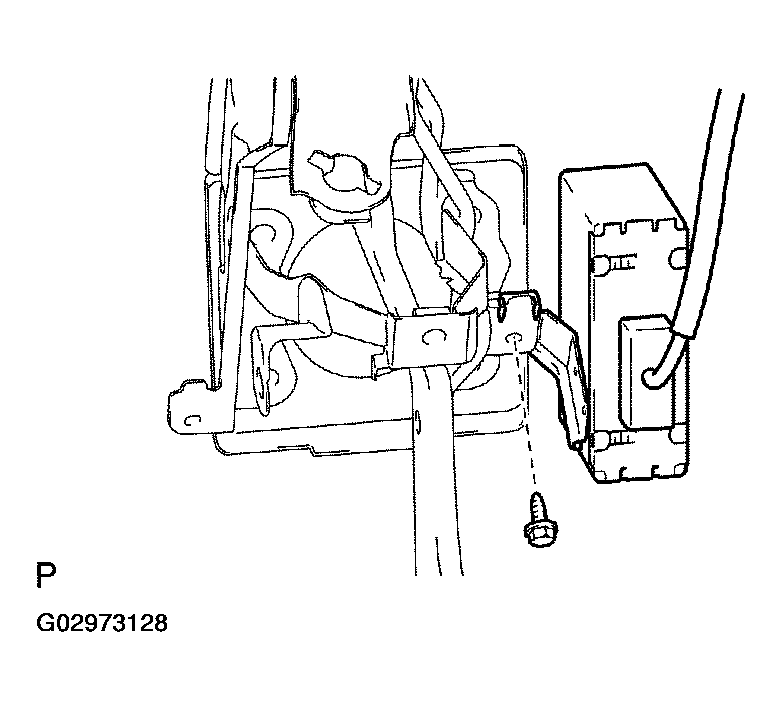

      Fig 1: Disconnecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL DISTANCE CONTROL ECU ASSY
   1. Install the bolt.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

   2. Connect the connector.
      Fig 2: Installing Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE  REPLACEMENT  )
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    Some systems need initialization when disconnecting the cable from the negative battery terminal.

12. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
