Data List/Active Test

1. While the hand-held tester is connected to the DLC3 with the ignition switch on (IG), the wireless door lock control data list can be displayed. Follow the prompts on the tester screen to access the DATA LIST.

   BODY:

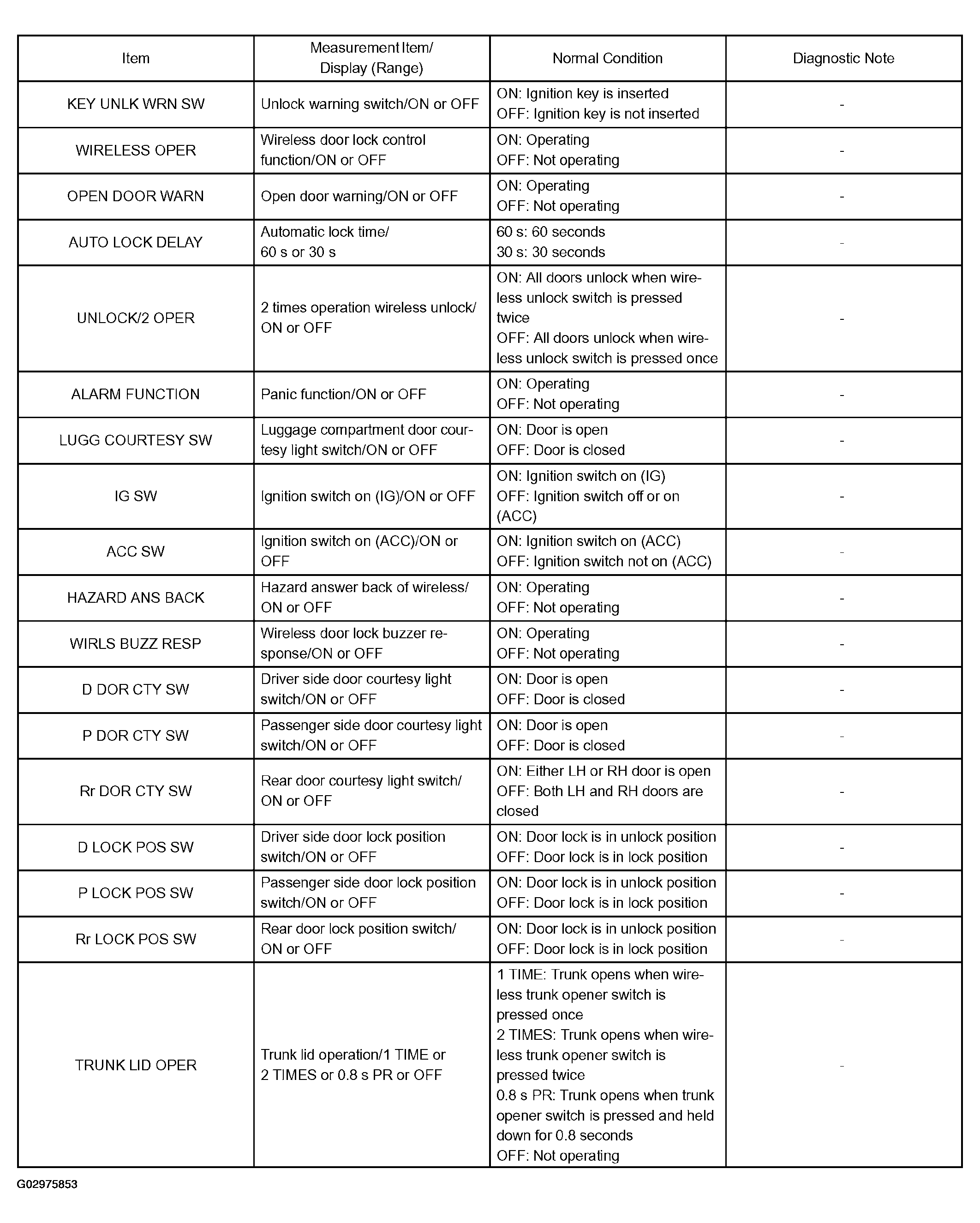

   Fig 1: Body Data List Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester allows components such as the relay, VSV and actuator to operate without part removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. According to the display on the tester, preform the ACTIVE TEST.

   HINT:

   The ignition switch must be turned on (IG) to proceed to the ACTIVE TEST using the hand-held tester.

   BODY:

   BODY ACTIVE TEST



   Item	Vehicle Condition/Test Details	Diagnostic Note
   HAZARD	Turns turn signal flasher (relay) assy ON/OFF	Observe headlight and rear combination light
   TRUNK/BDOR OPEN	Turns luggage compartment door opener motor ON/OFF	Observe luggage compartment door
