Problem Symptoms Table

If a normal system code is displayed during the DTC check, but the problem still occurs, check the circuits for each problem symptom in the order given in Fig 1 and Fig 2 and proceed to the relevant troubleshooting .

HINT:

• The following is the troubleshooting procedure for the wireless door lock control of a vehicle without the smart key system.

  For the troubleshooting procedure for the wireless door lock control of a vehicle with the smart key system, refer to the smart key system (see PROBLEM SYMPTOMS TABLE ).

• Inspect the fuse and relay before investigating the suspected areas shown in Fig 1 and Fig 2 .
• Inspect each malfunction circuit in numerical order for its corresponding symptom.

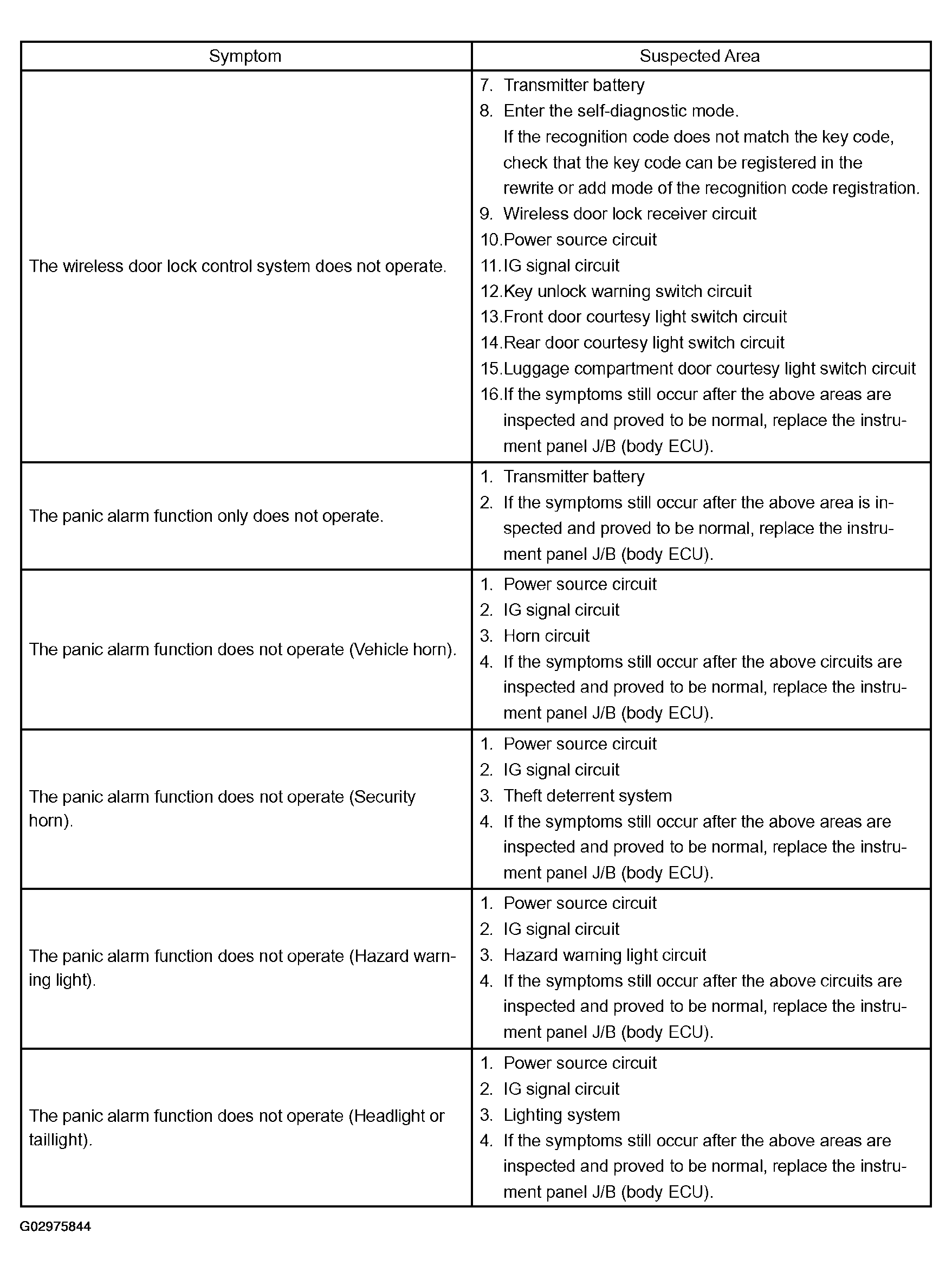

Fig 1: Problem Symptoms Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

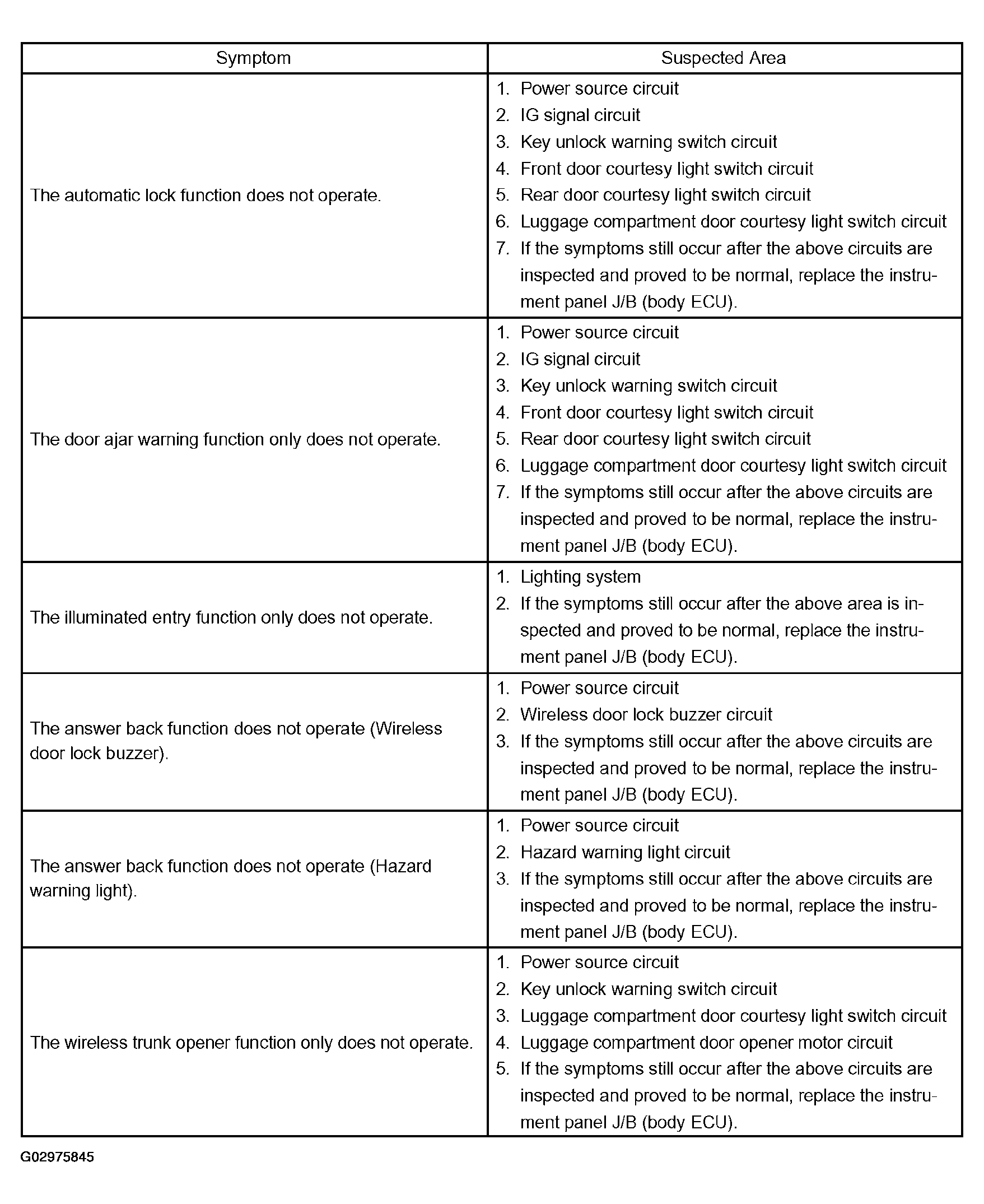

Fig 2: Problem Symptoms Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
