Communication System: Location

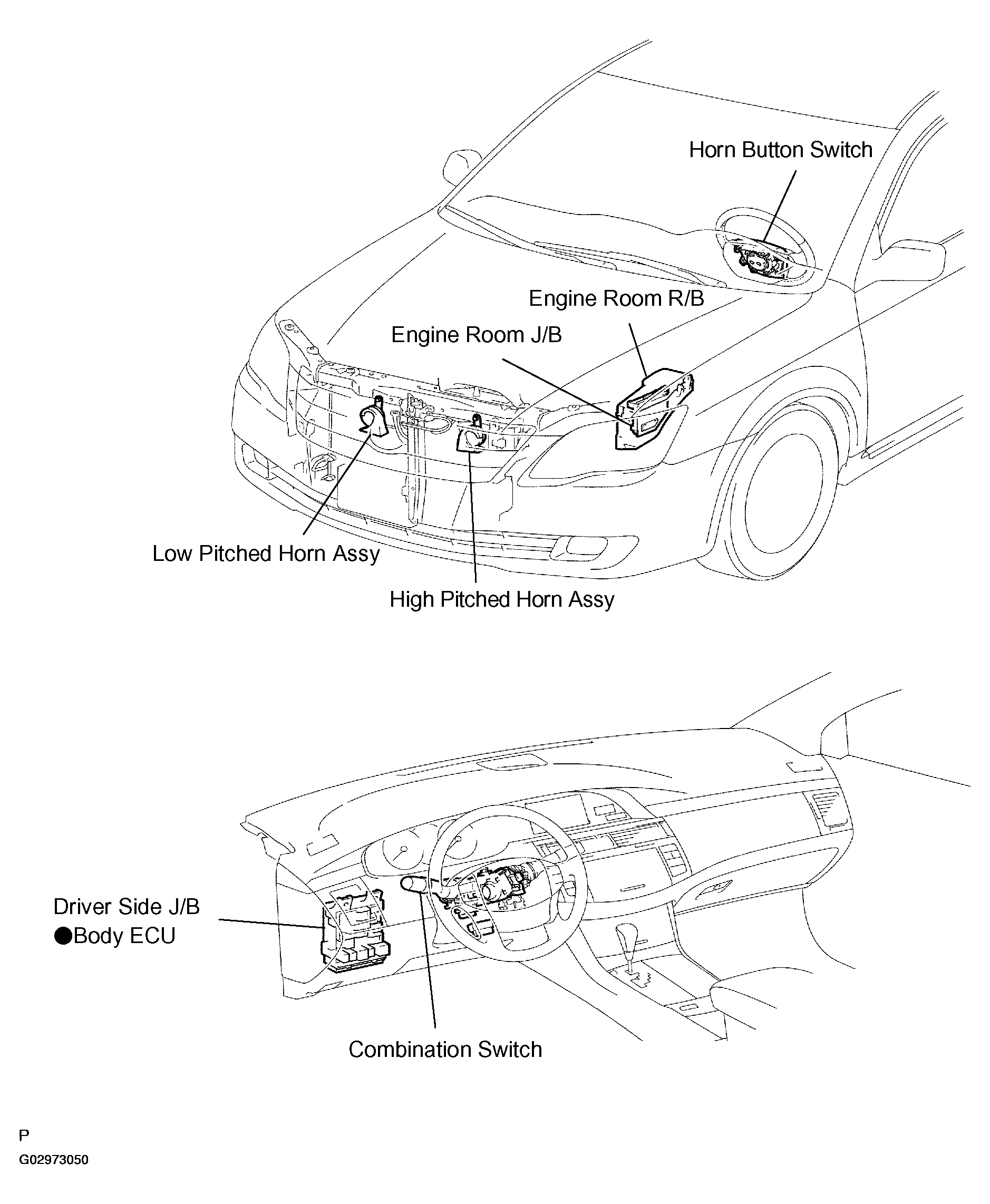

Fig 1: Locating Communications System
G02973050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
