Terminals Of Ecu

CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY

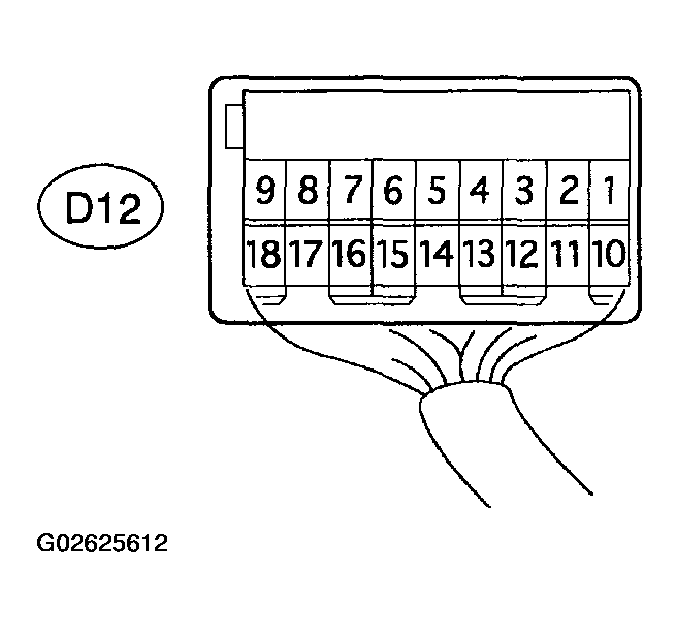

Fig 1: Identifying Power Window Regulator Master Switch Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the D12 master switch connector and check the voltage and continuity of each terminal of the wire harness side connector.
  Standard:

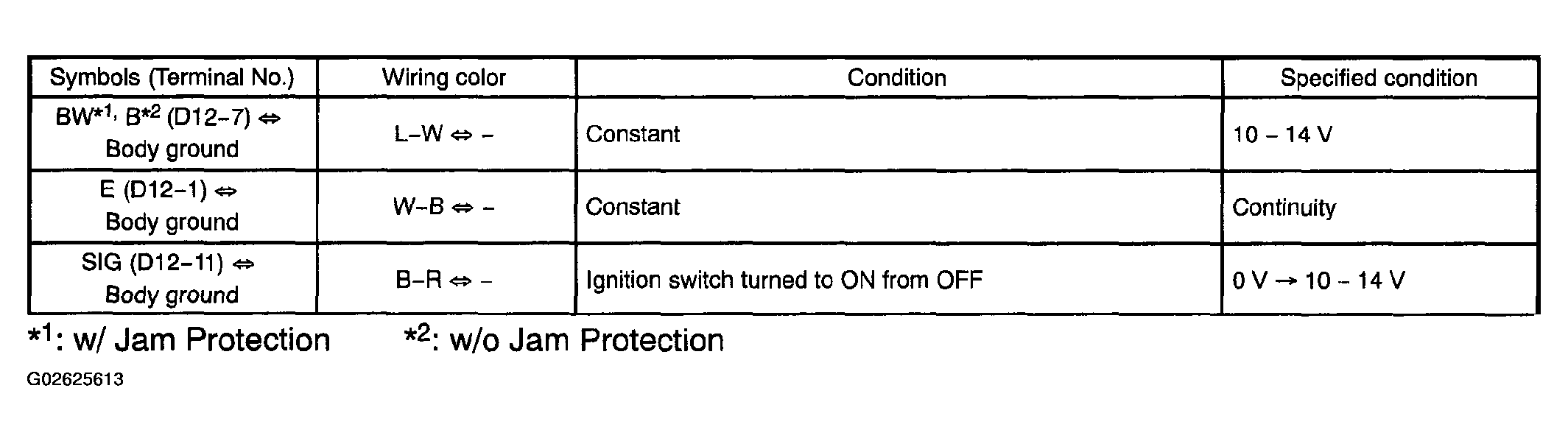

  Fig 2: Power Window Regulator Master Switch Connector Terminals Voltage And Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
2. Reconnect the D12 master switch connector, and check the voltage of each terminal of the connector.
  Standard:

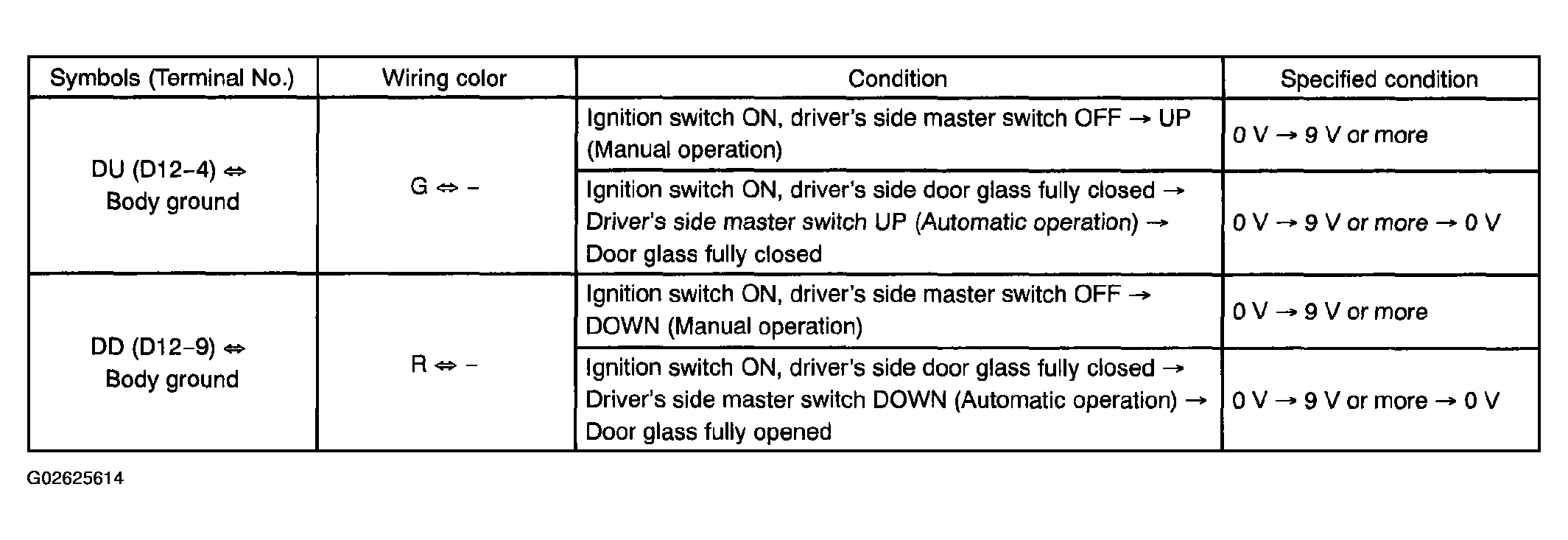

  Fig 3: Power Window Regulator Master Switch Connector Terminals Voltage Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, the master switch may be defective.
3. Check the illumination.
  1. When the ignition switch is turned to ON from OFF with the connector connected, check that the illumination (LED) AUTO will light up.
