Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

NOTE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on the these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Turn ON the hand-held tester or the OBD II scan tool.
6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
7. According to the display on tester, read the "DATA LIST".

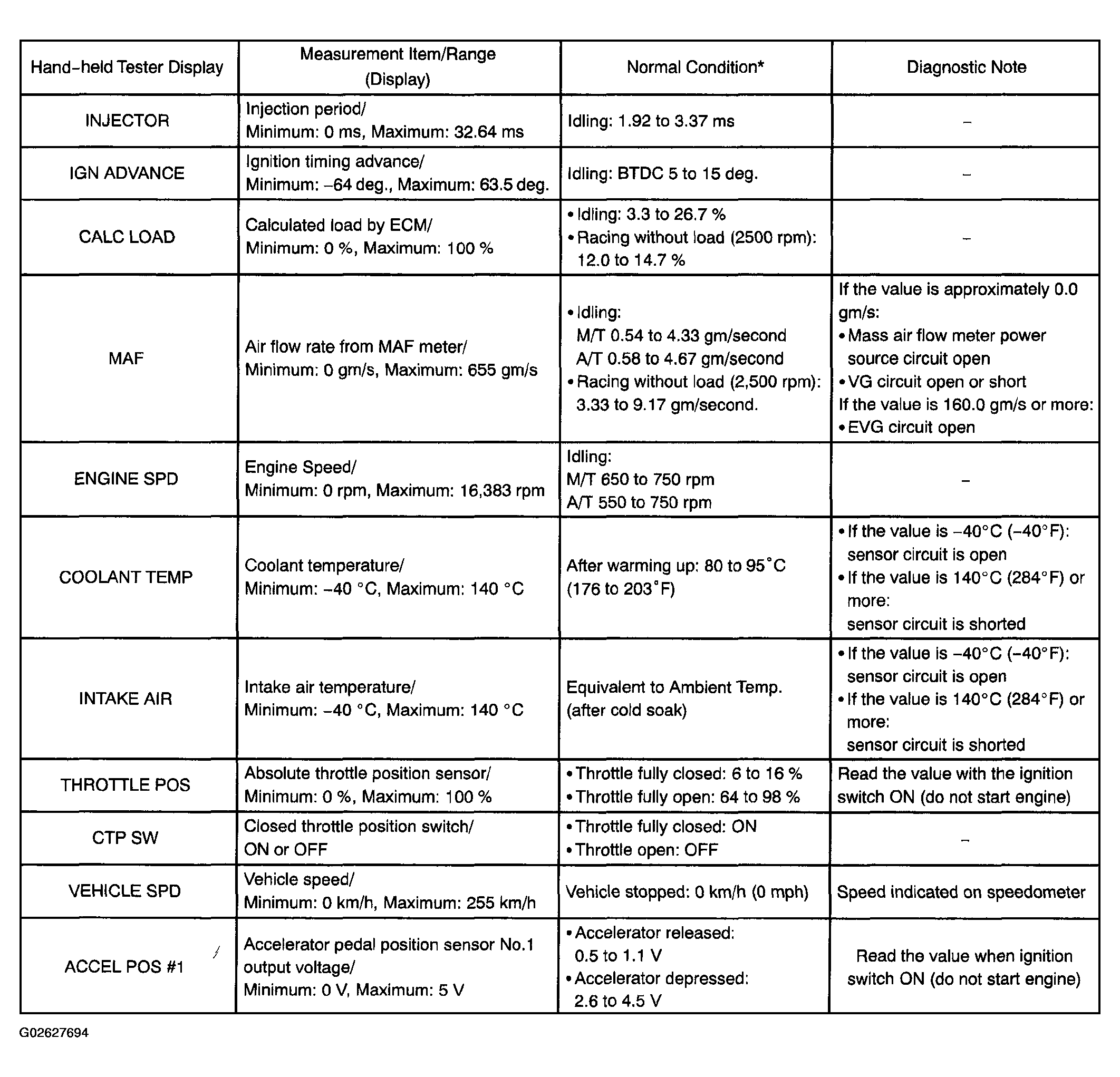

  Fig 1: Data List (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

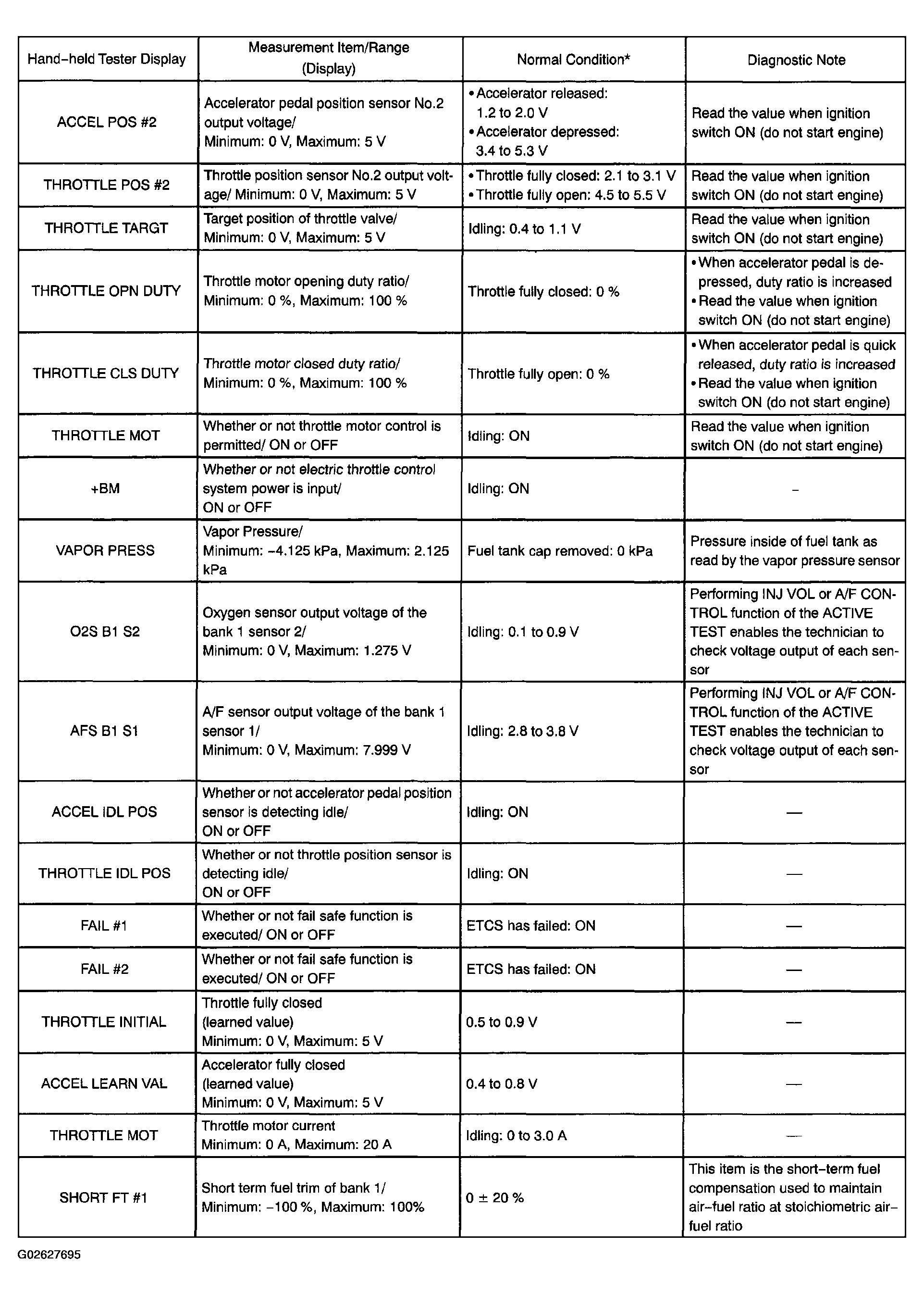

Fig 2: Data List (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

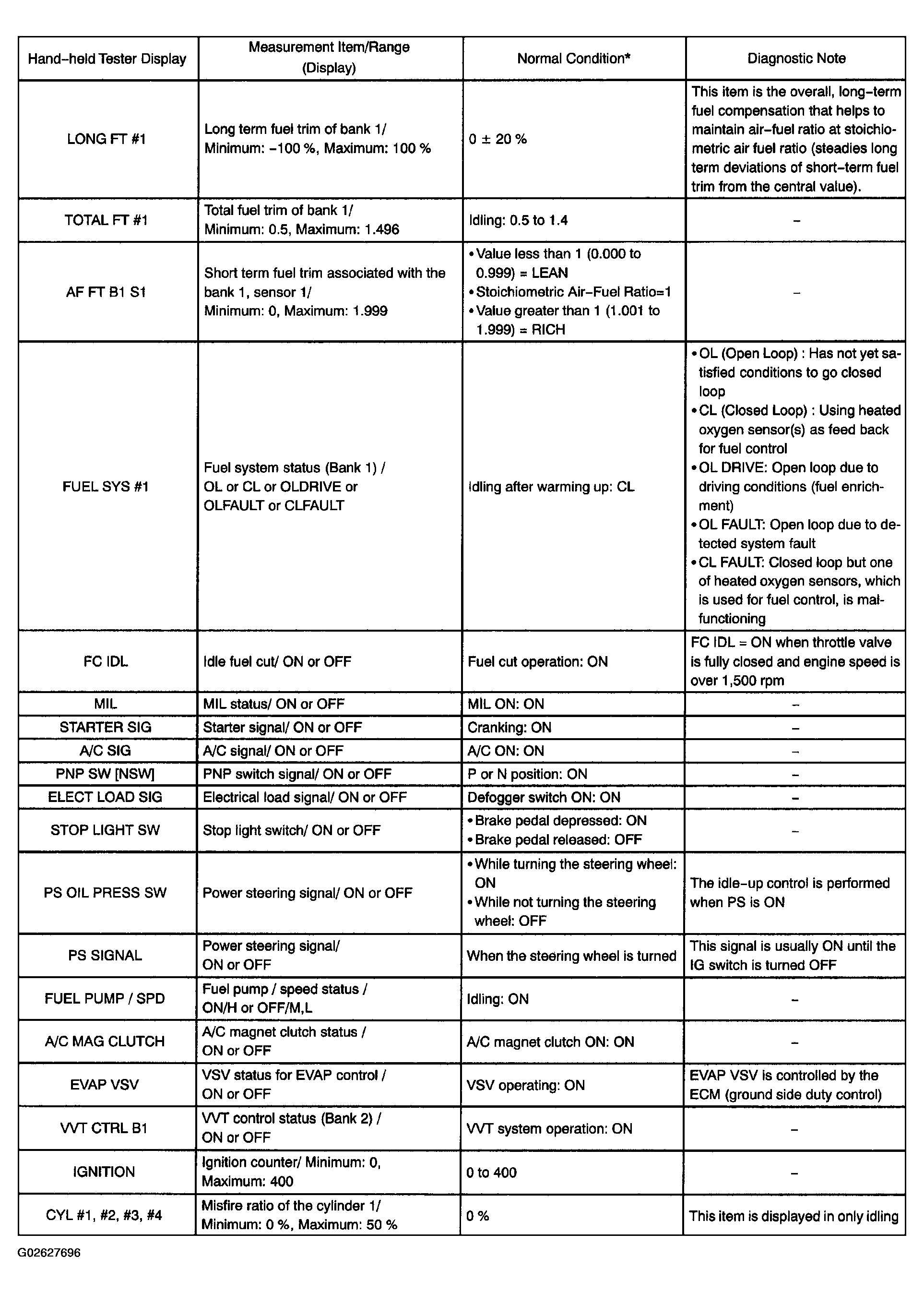

Fig 3: Data List (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

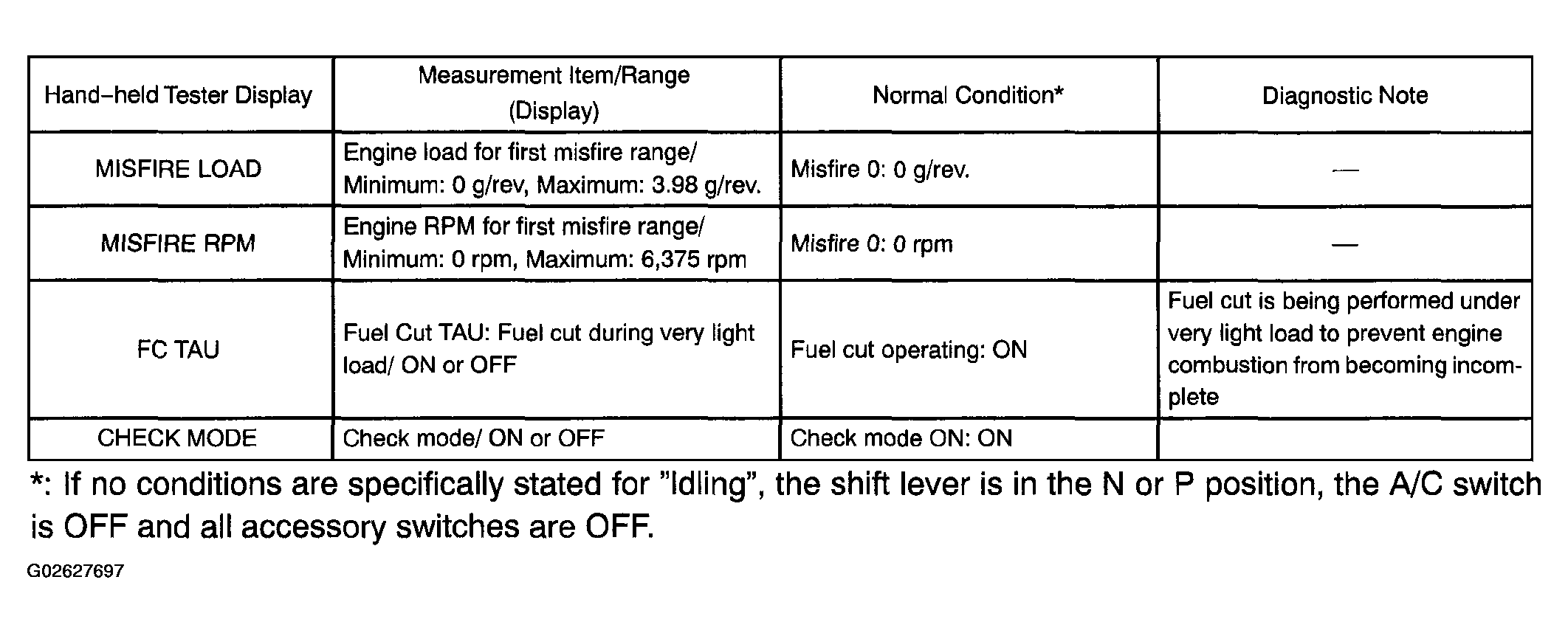

Fig 4: Data List (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the hand-held tester ACTIVE LIST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE LIST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Turn ON the hand-held tester or the OBD II scan tool.
6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.
7. According to the display on tester, perform the "ACTIVE TEST.

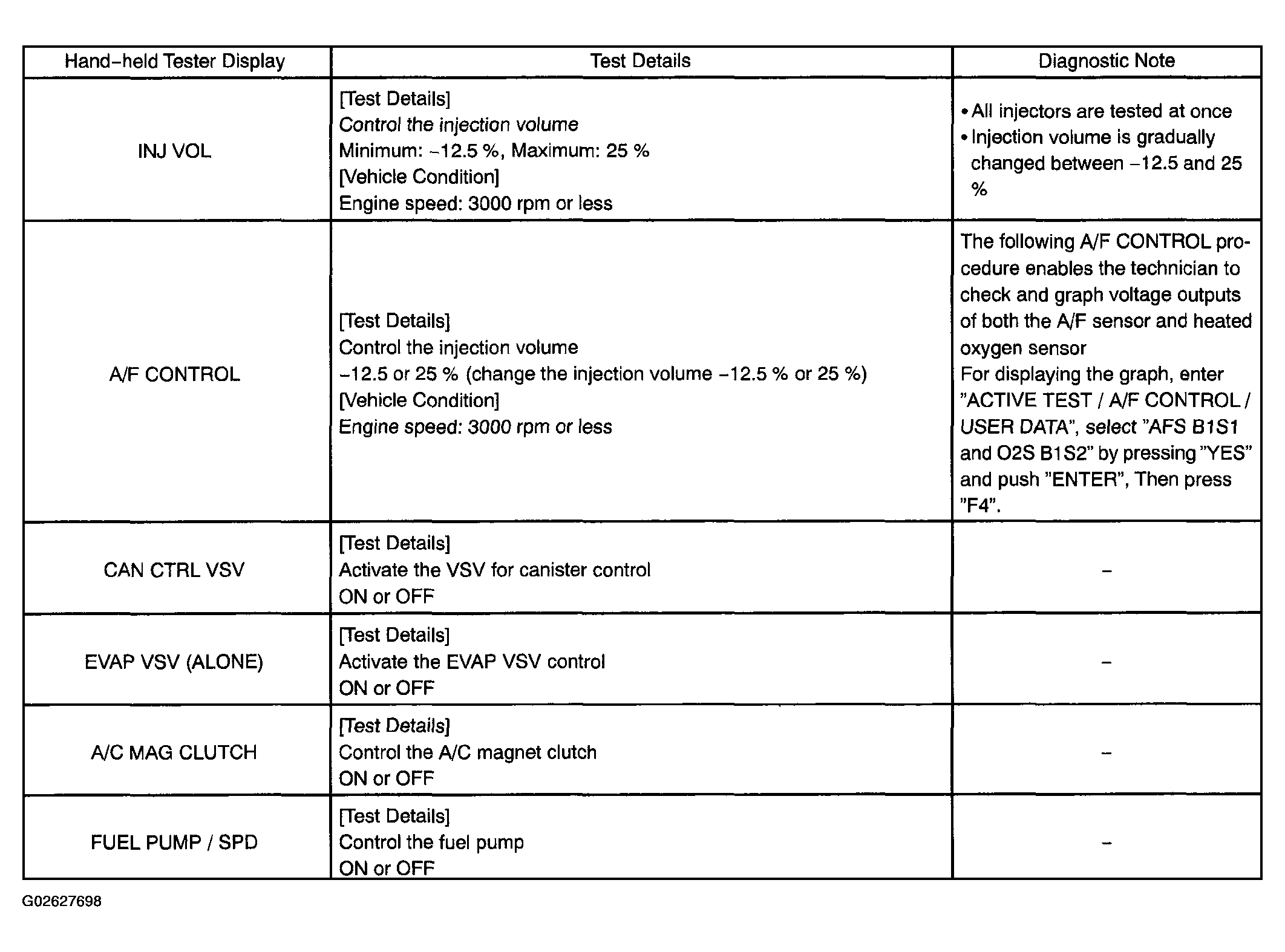

Fig 5: Active Test List (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

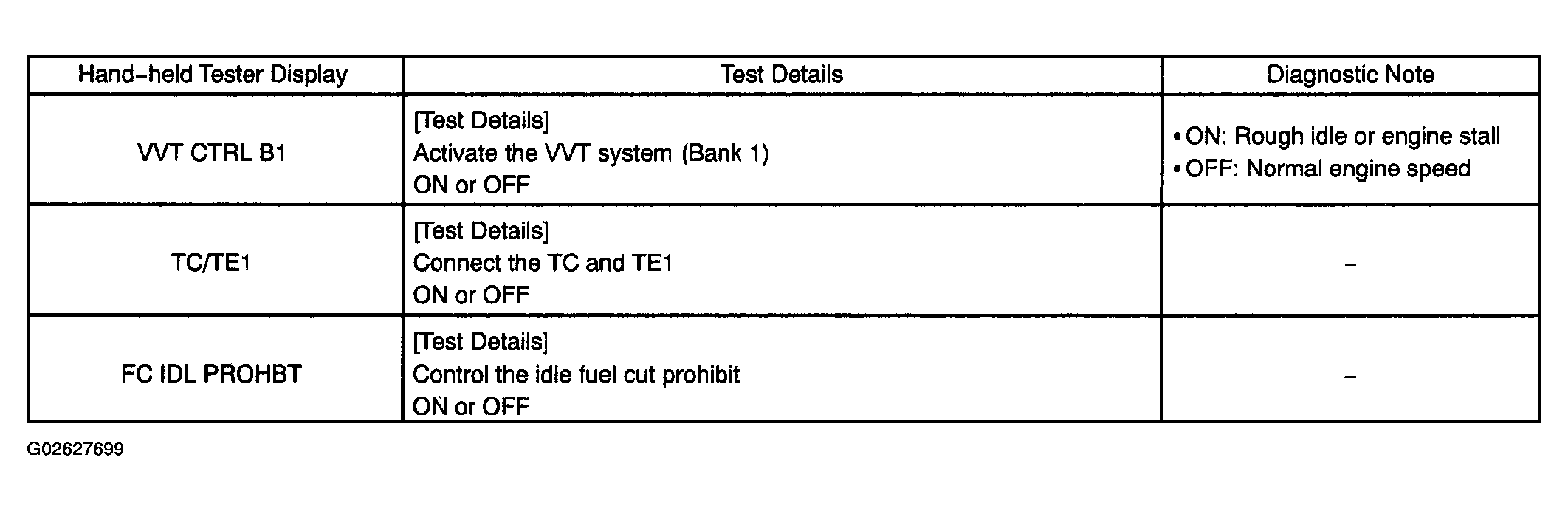

Fig 6: Active Test List (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
