Power Mirror Control System: Location

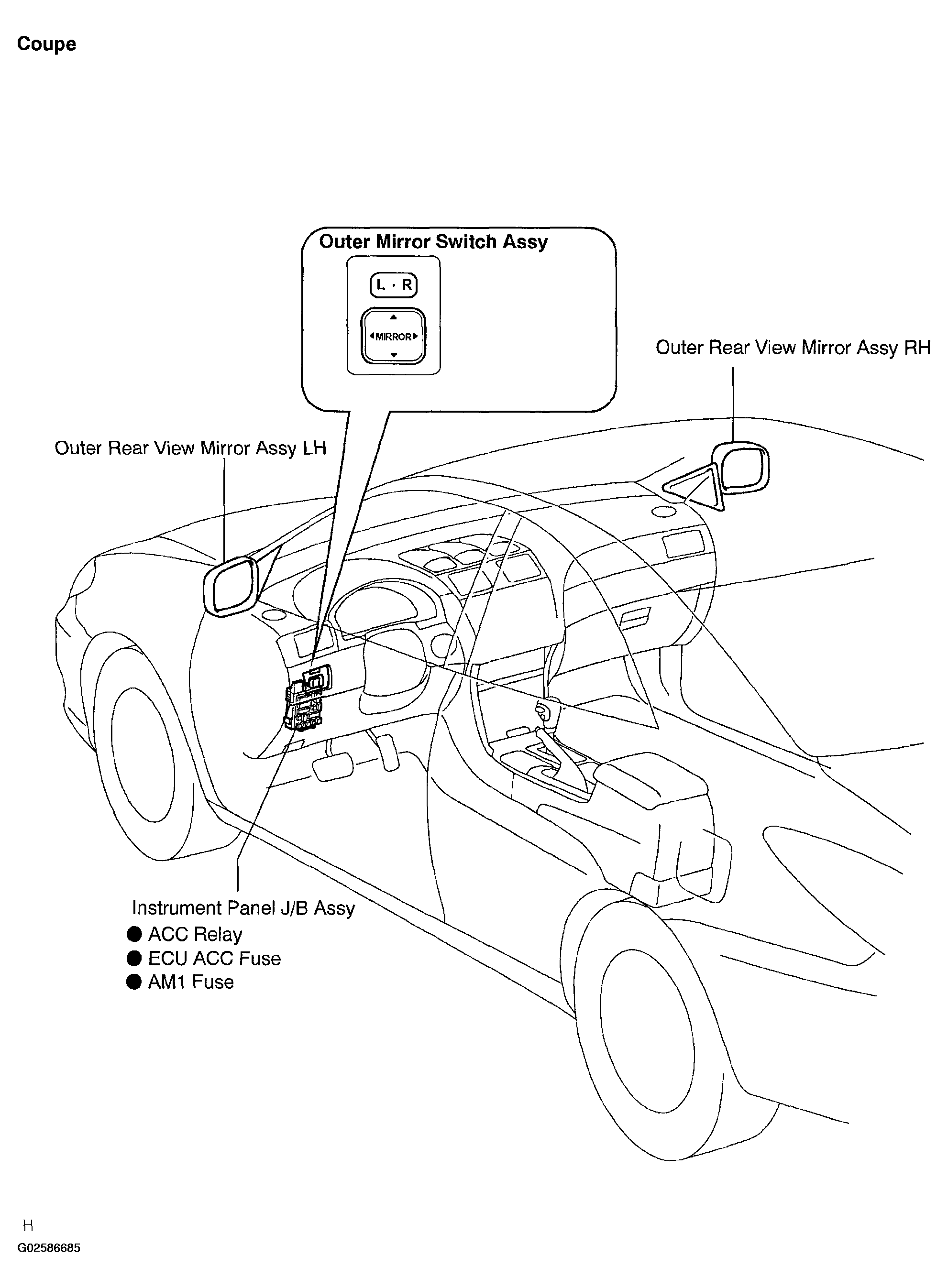

Fig 1: Identifying Power Mirror Control System Components Location (1 Of 3)
G02586685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

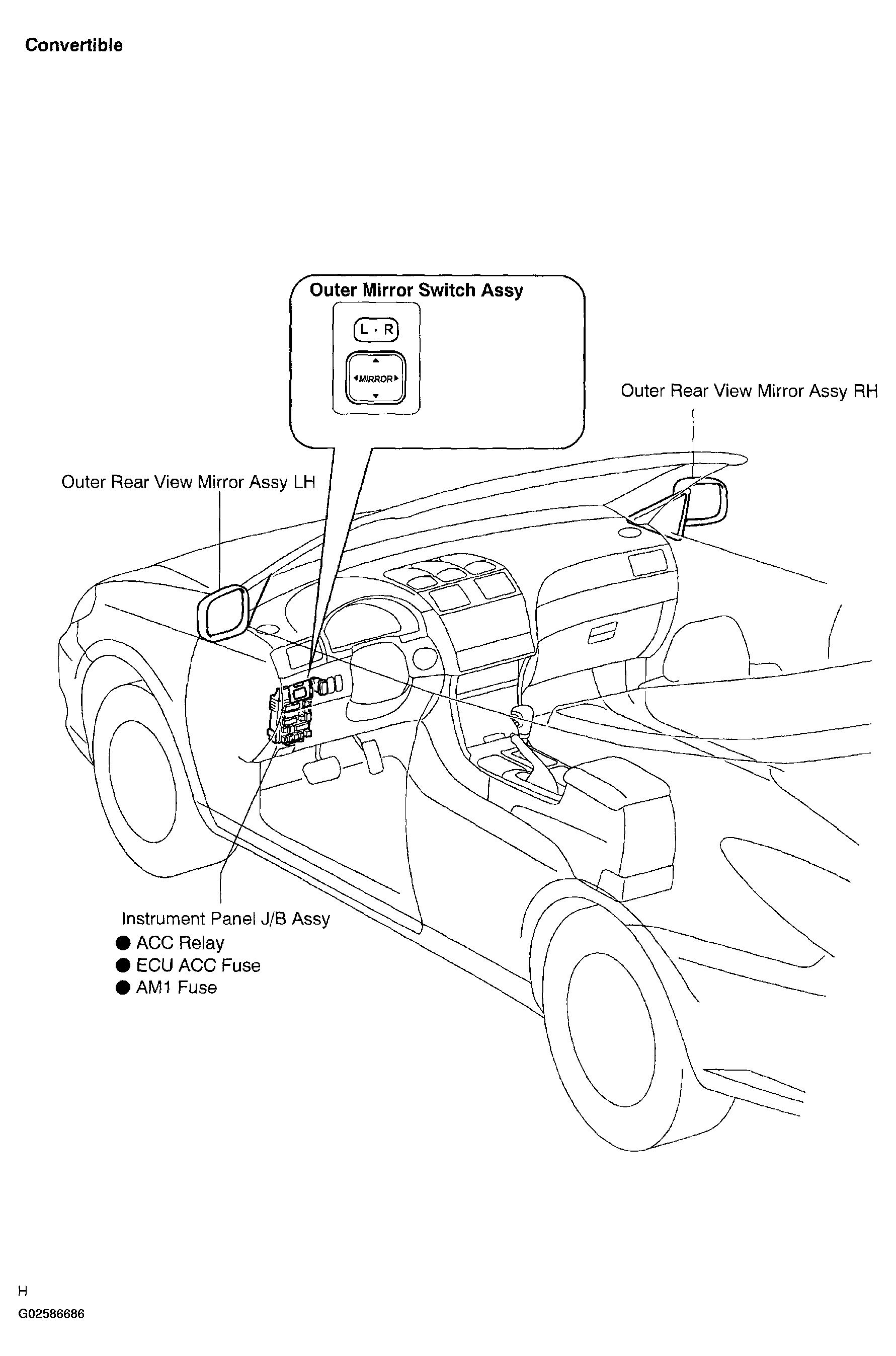

Fig 2: Identifying Power Mirror Control System Components Location (2 Of 3)
G02586686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

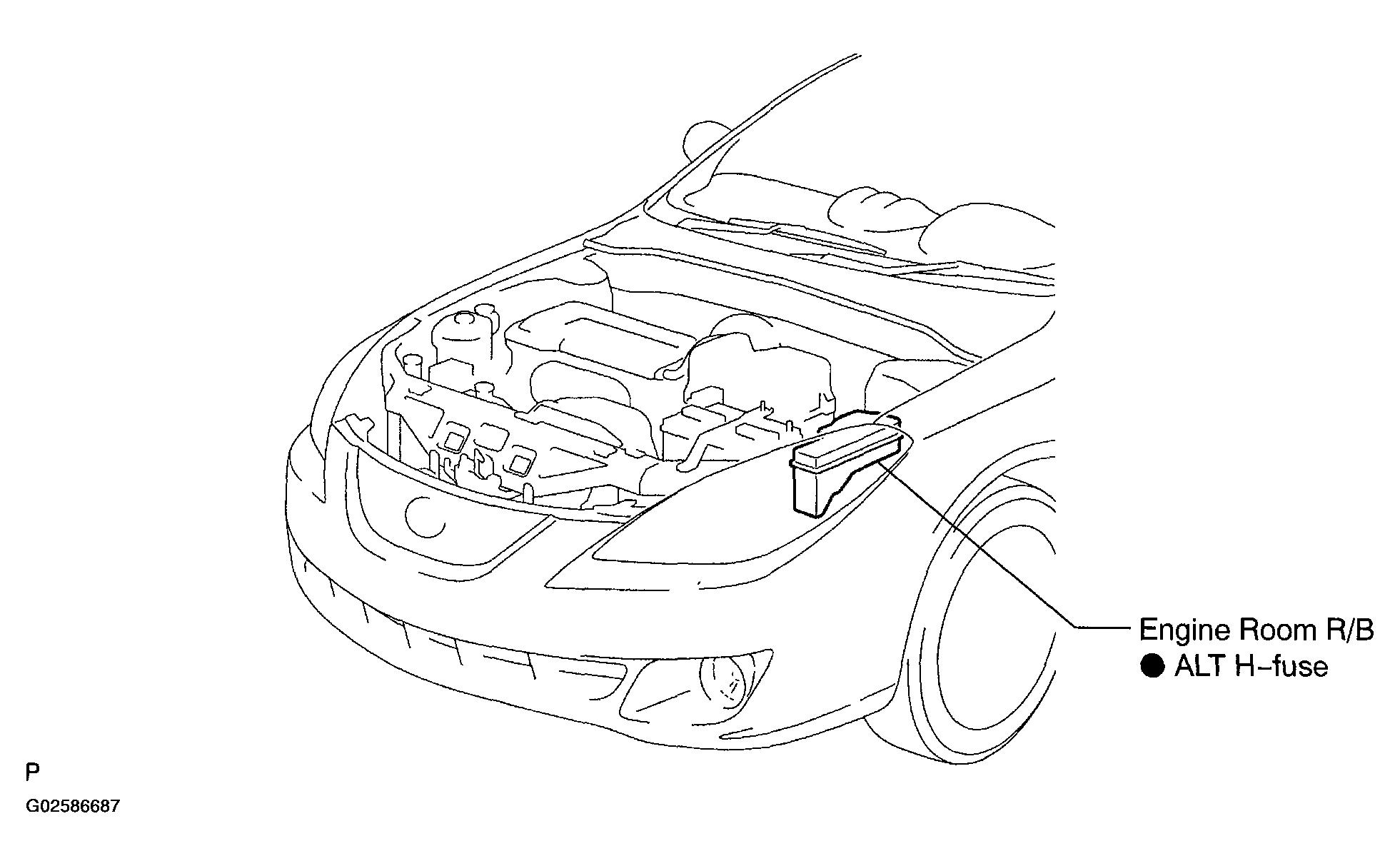

Fig 3: Identifying Power Mirror Control System Components Location (3 Of 3)
G02586687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
