System Diagram
Ignition timing is determiner by the ECM based on signals from various sensors.

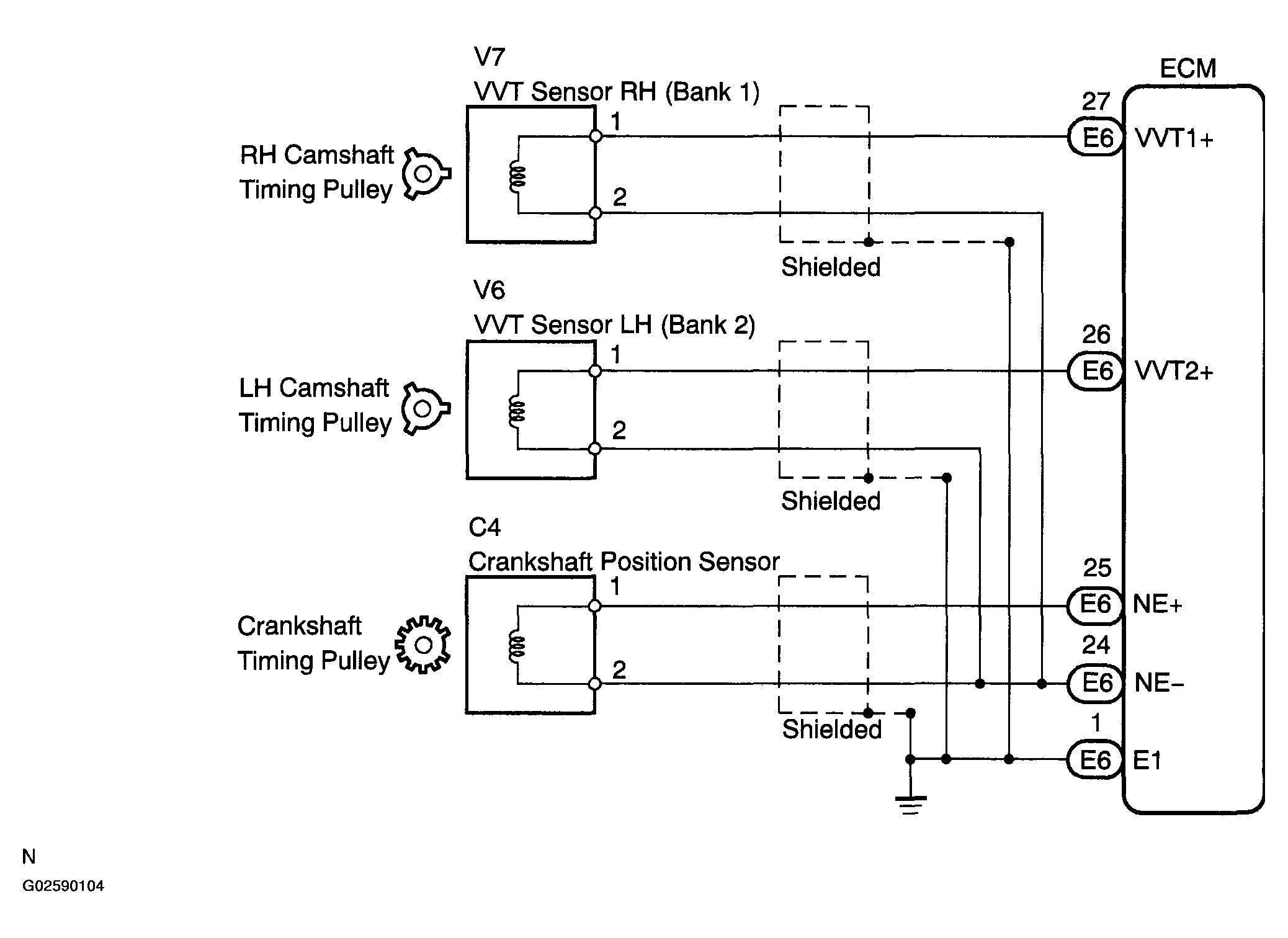

Fig 1: System Diagram Of Ignition System (3MZ-FE) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

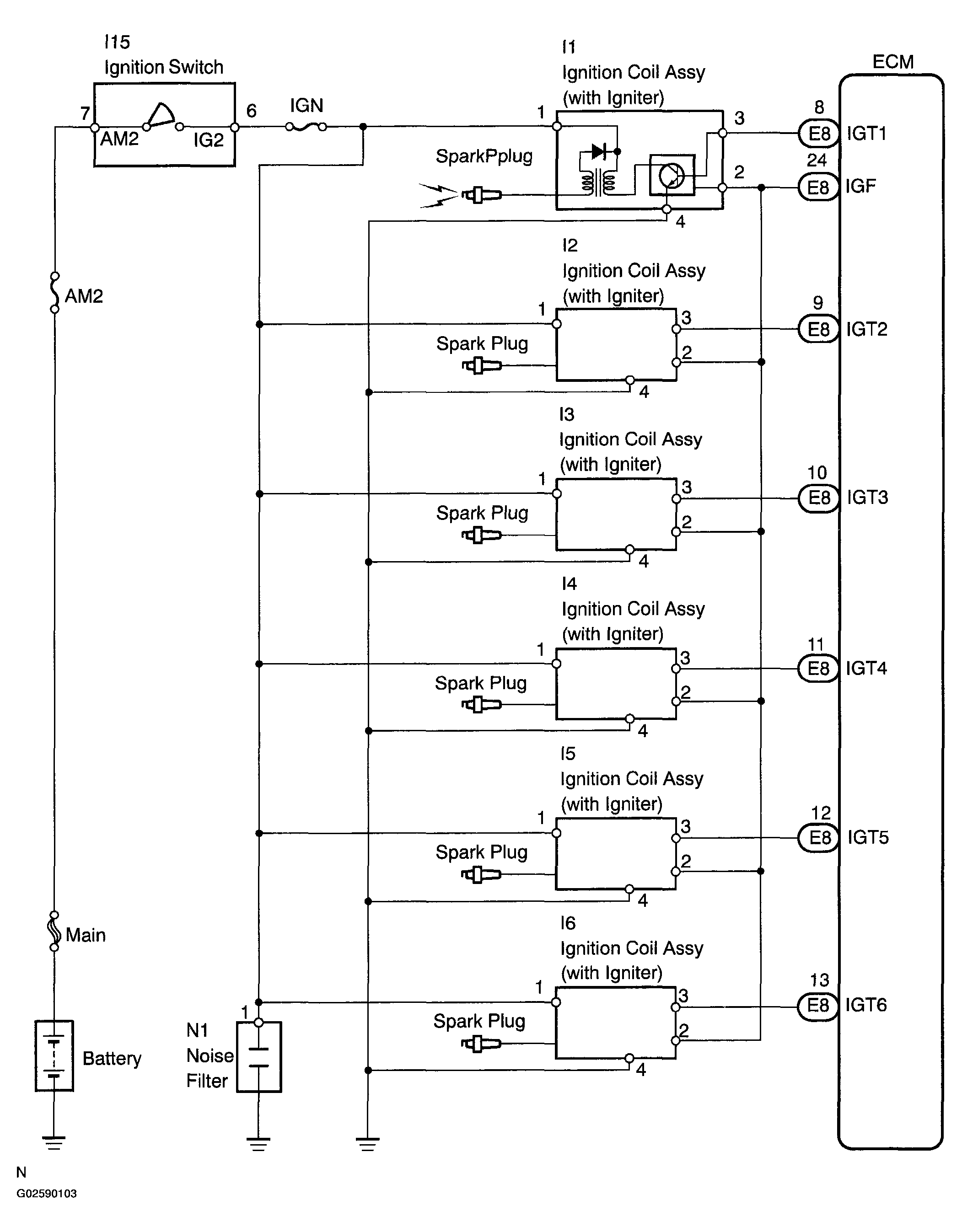

Fig 2: System Diagram Of Ignition System (3MZ-FE) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
