Circuit Inspection

How to read and use each example is shown below.

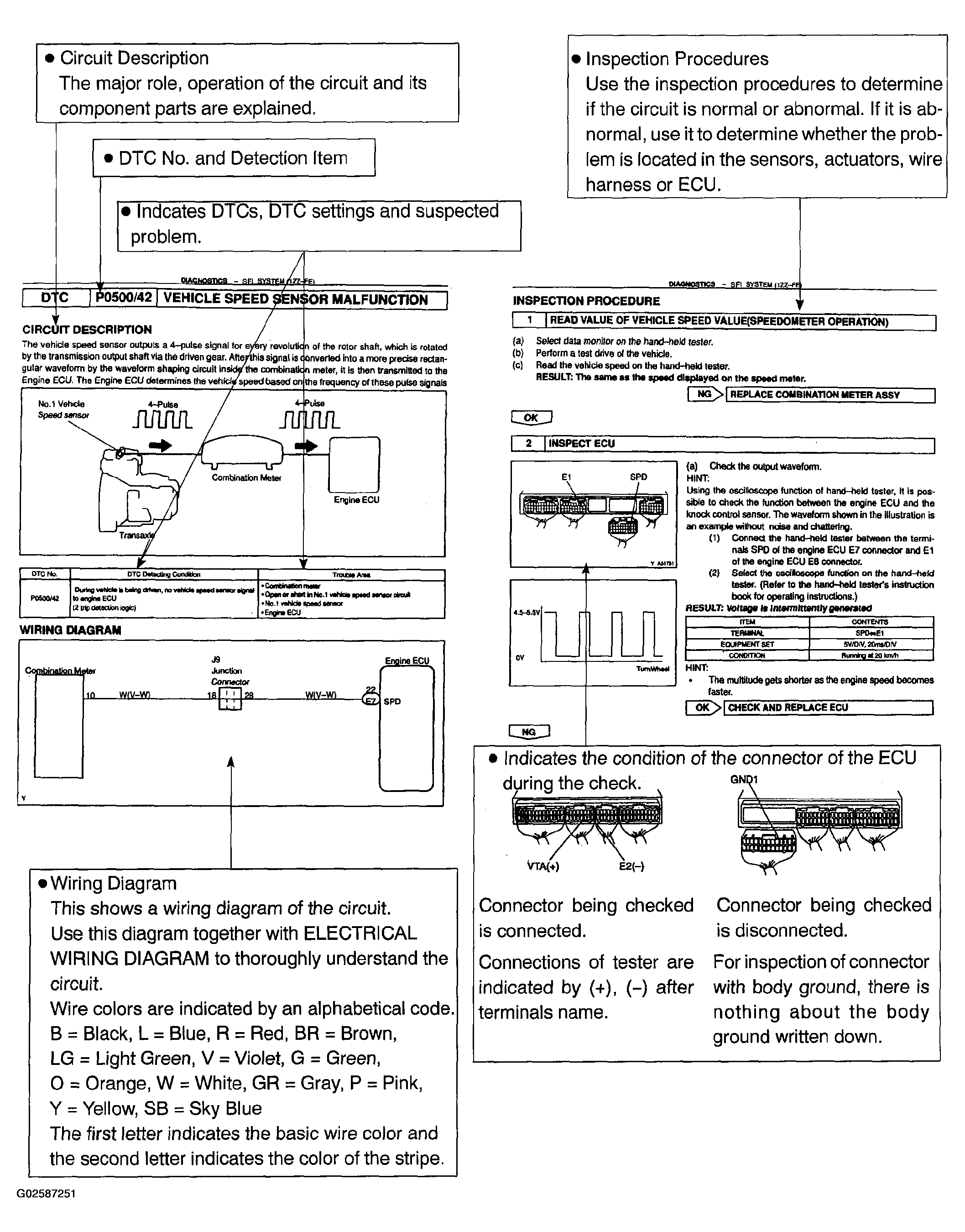

Fig 1: Identifying Circuit Inspection Chart
G02587251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
