Camshaft Timing Oil Control Valve: Components

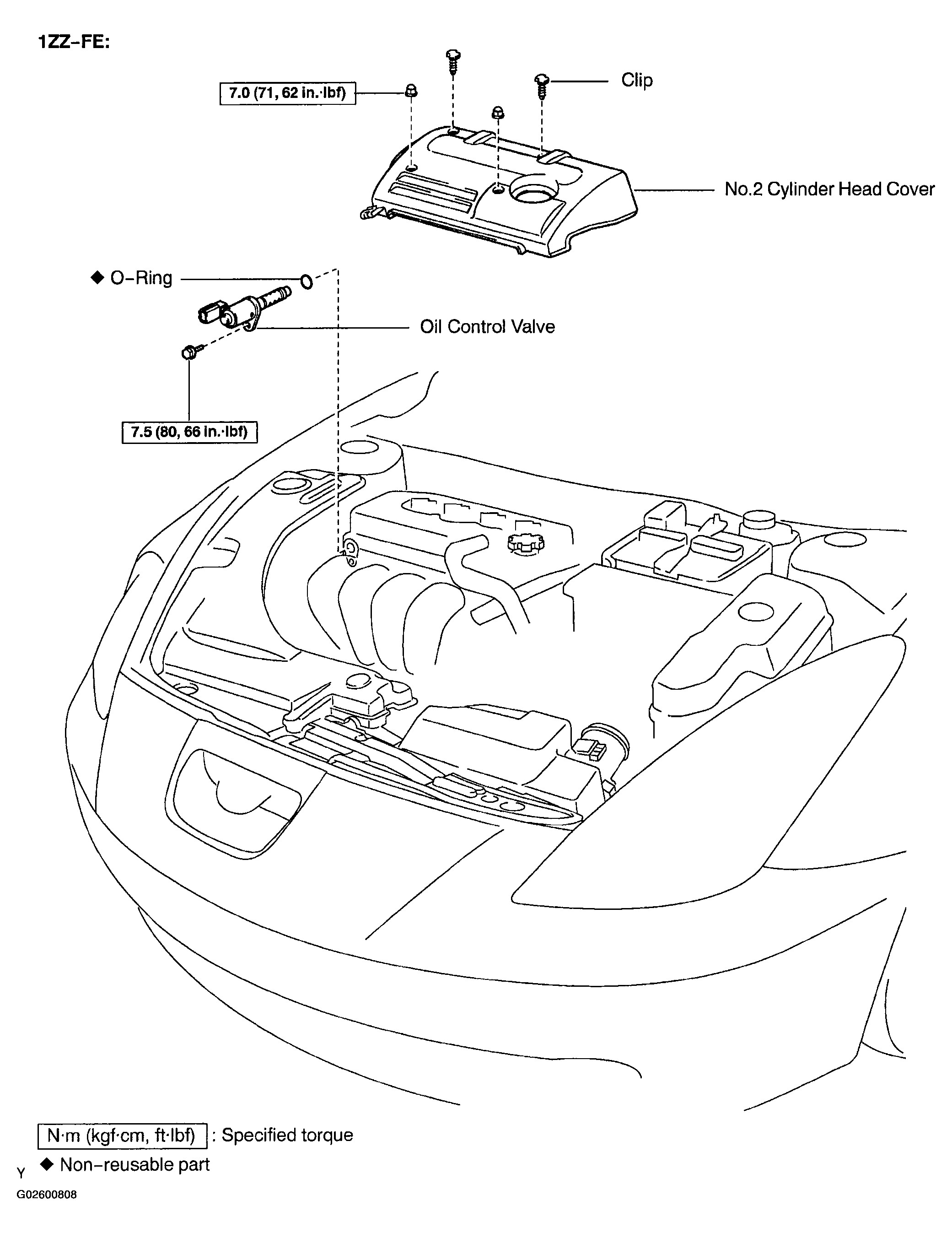

Fig 1: Identifying Camshaft Timing Oil Control Valve Components (1ZZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

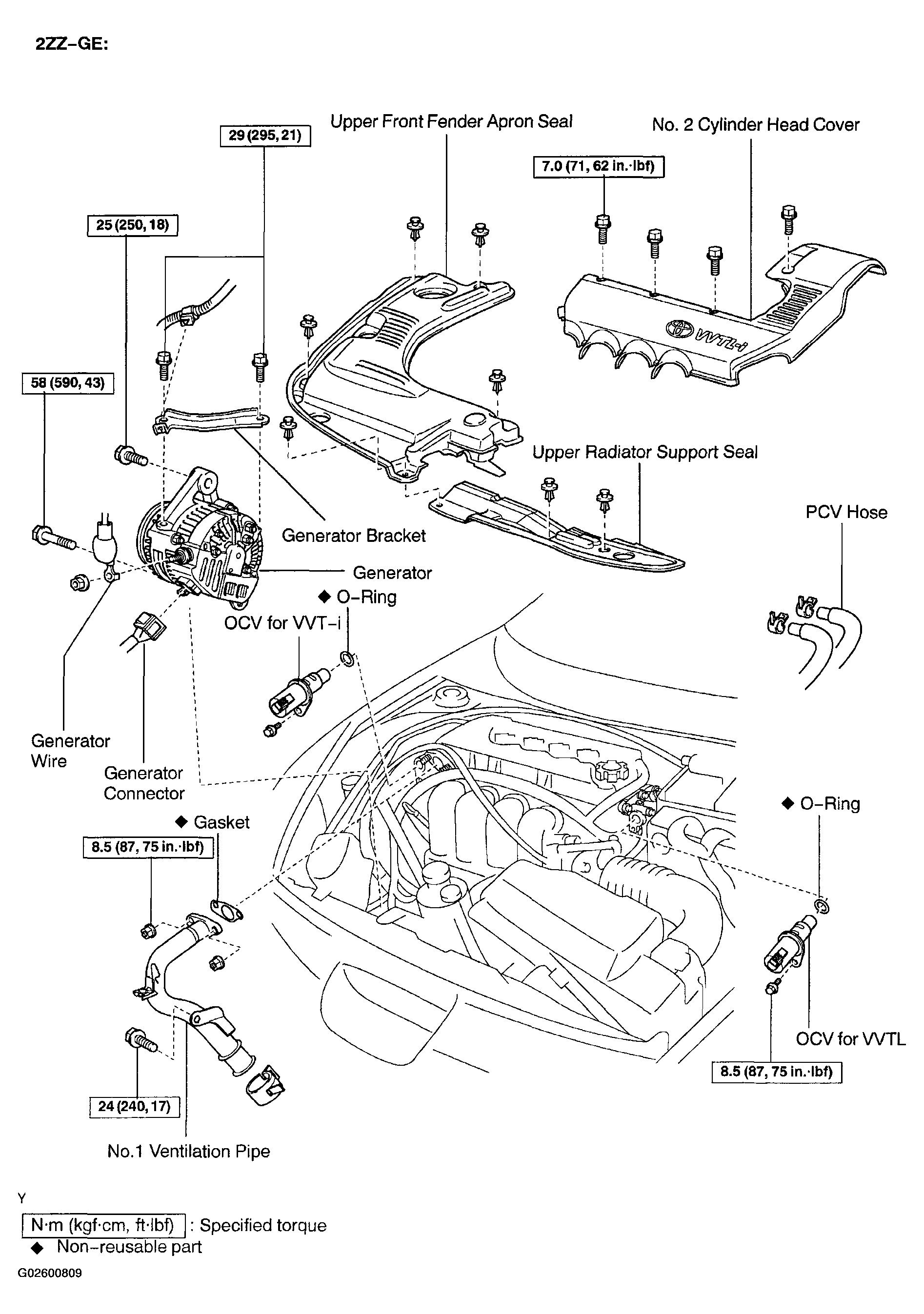

Fig 2: Identifying Camshaft Timing Oil Control Valve Components (2ZZ-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
