Crankshaft Position Sensor: Components

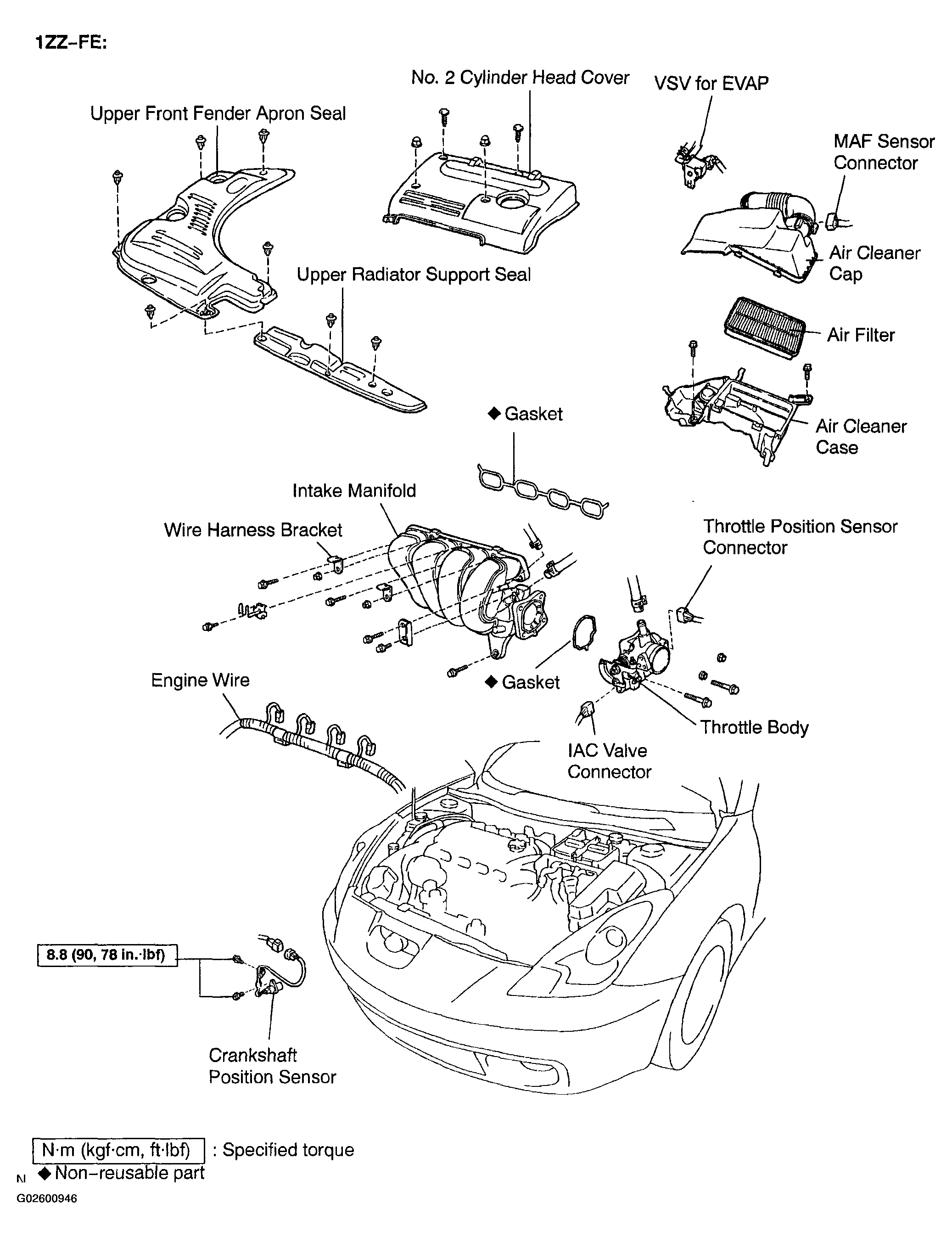

Fig 1: Identifying Crankshaft Position Sensor Components (1ZZ-FE)
G02600946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

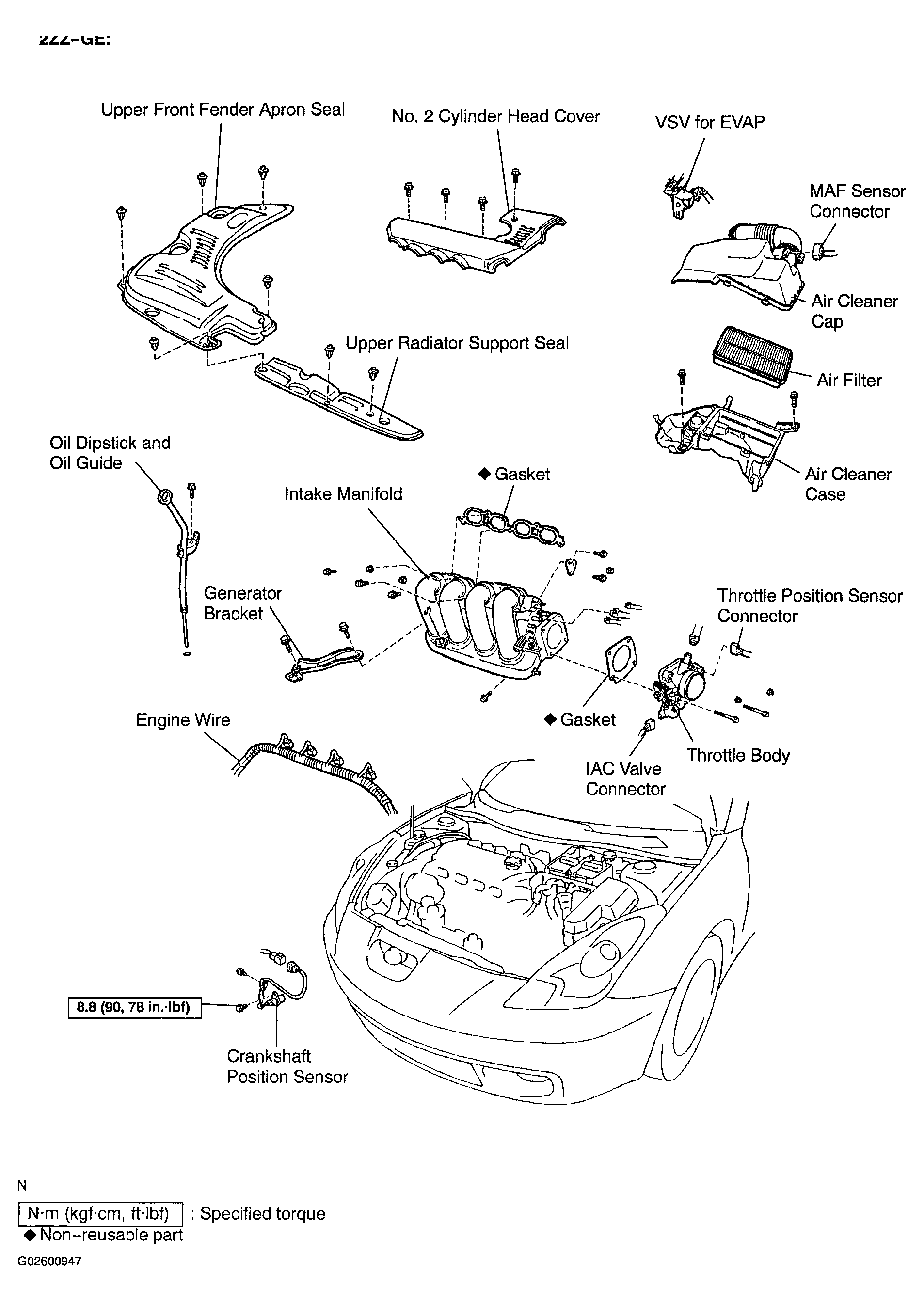

Fig 2: Identifying Crankshaft Position Sensor Components (2ZZ-GE)
G02600947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
