Back Window Glass: Components

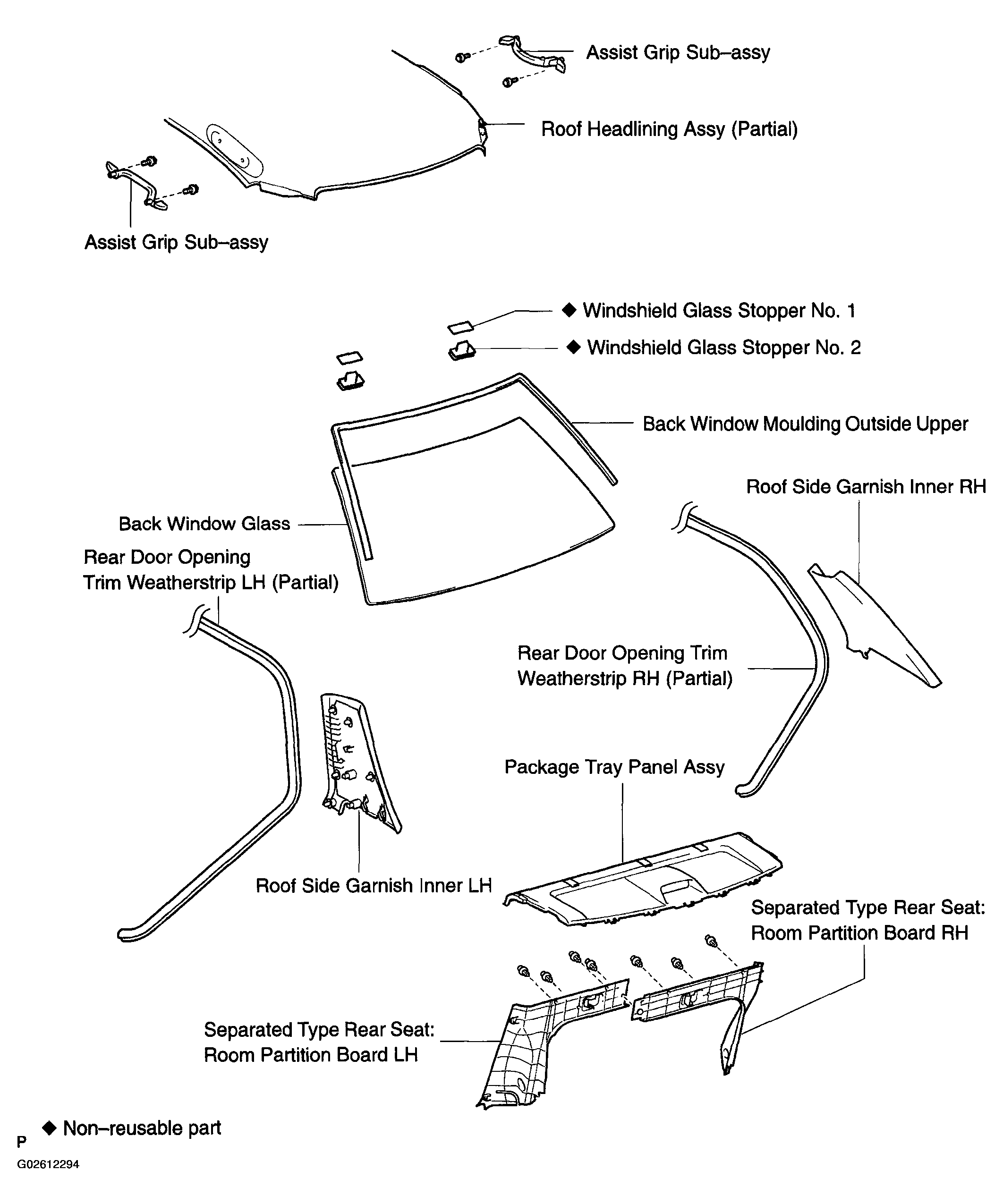

Fig 1: Identifying Back Window Glass And Component
G02612294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
