Inner Rear View Mirror ASSY: Inspection

1. Inspect the electrochromic inner mirror operation.
   1. Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2.
   2. Attach black colored tape to the forward sensor to prevent it from sensing.
   3. Light up the mirror with an electric light, and check that the mirror surface changes from "bright" to "dark".

If the operation is not as specified, replace the inner mirror assembly.

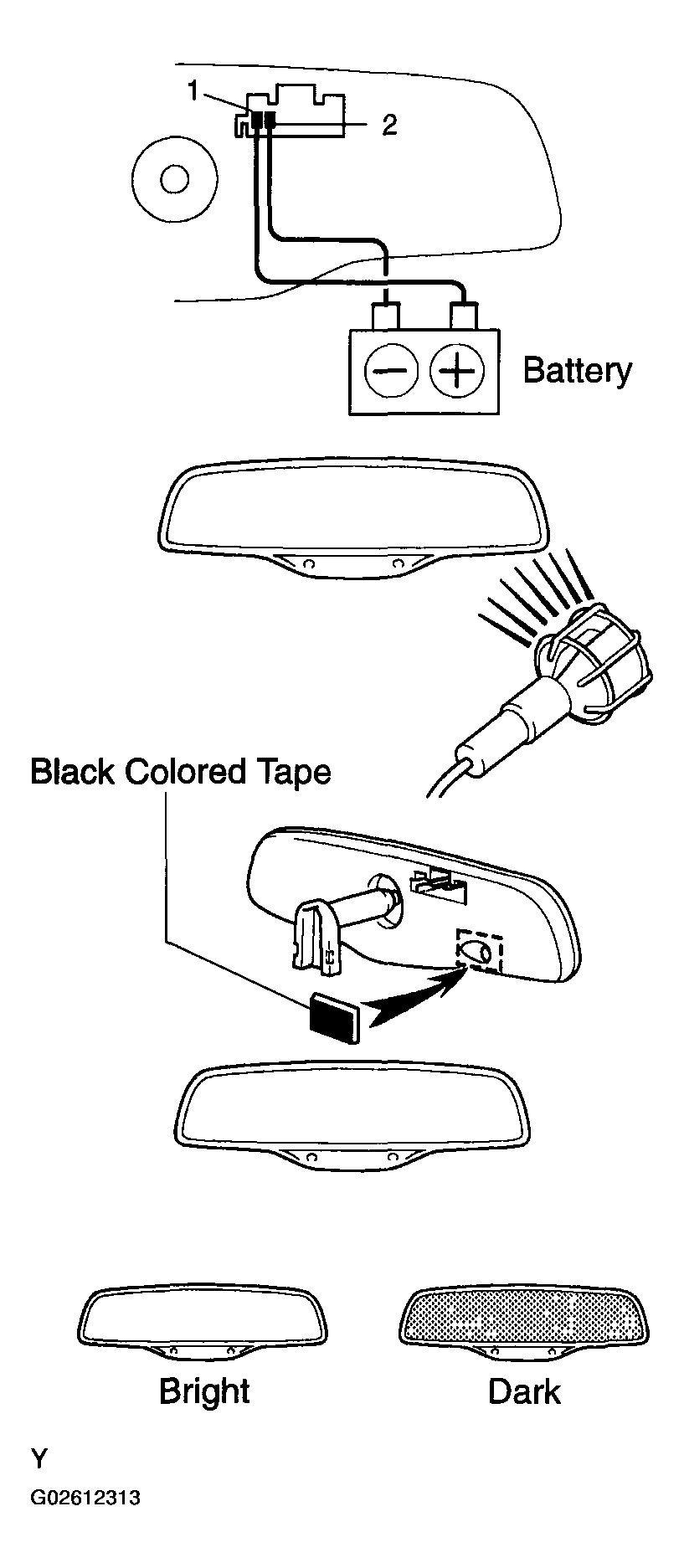

Fig 1: Inspecting Electrochromic Inner Mirror Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
