Camshaft Position Sensor: Removal

  1. Disconnect the connector.
  2. Remove the bolt and camshaft position sensor.

    Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

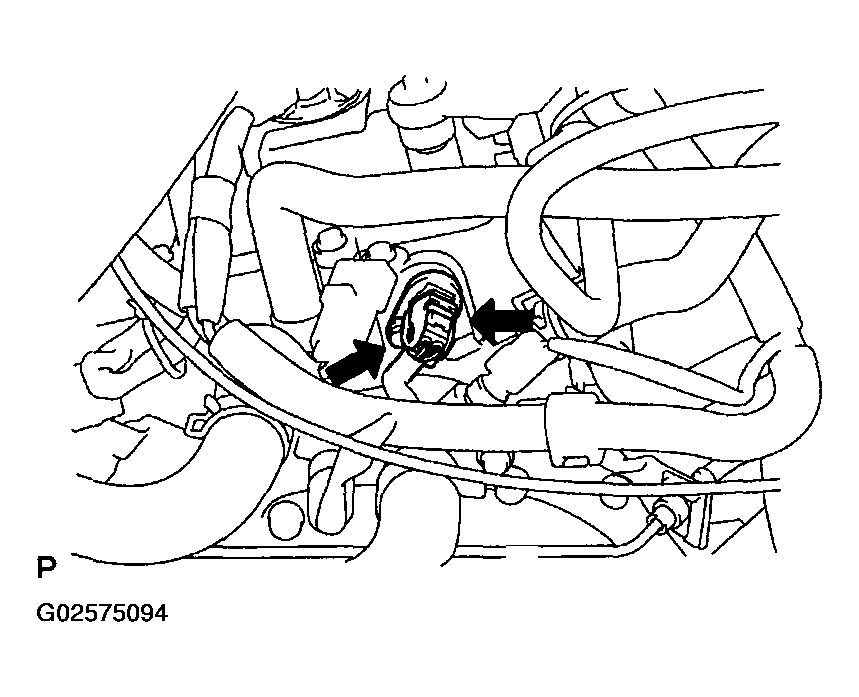

    Fig 1: Disconnecting Connector
    G02575094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
