How To Preceded With Troubleshooting

Troubleshoot in accordance with the procedure on this page.

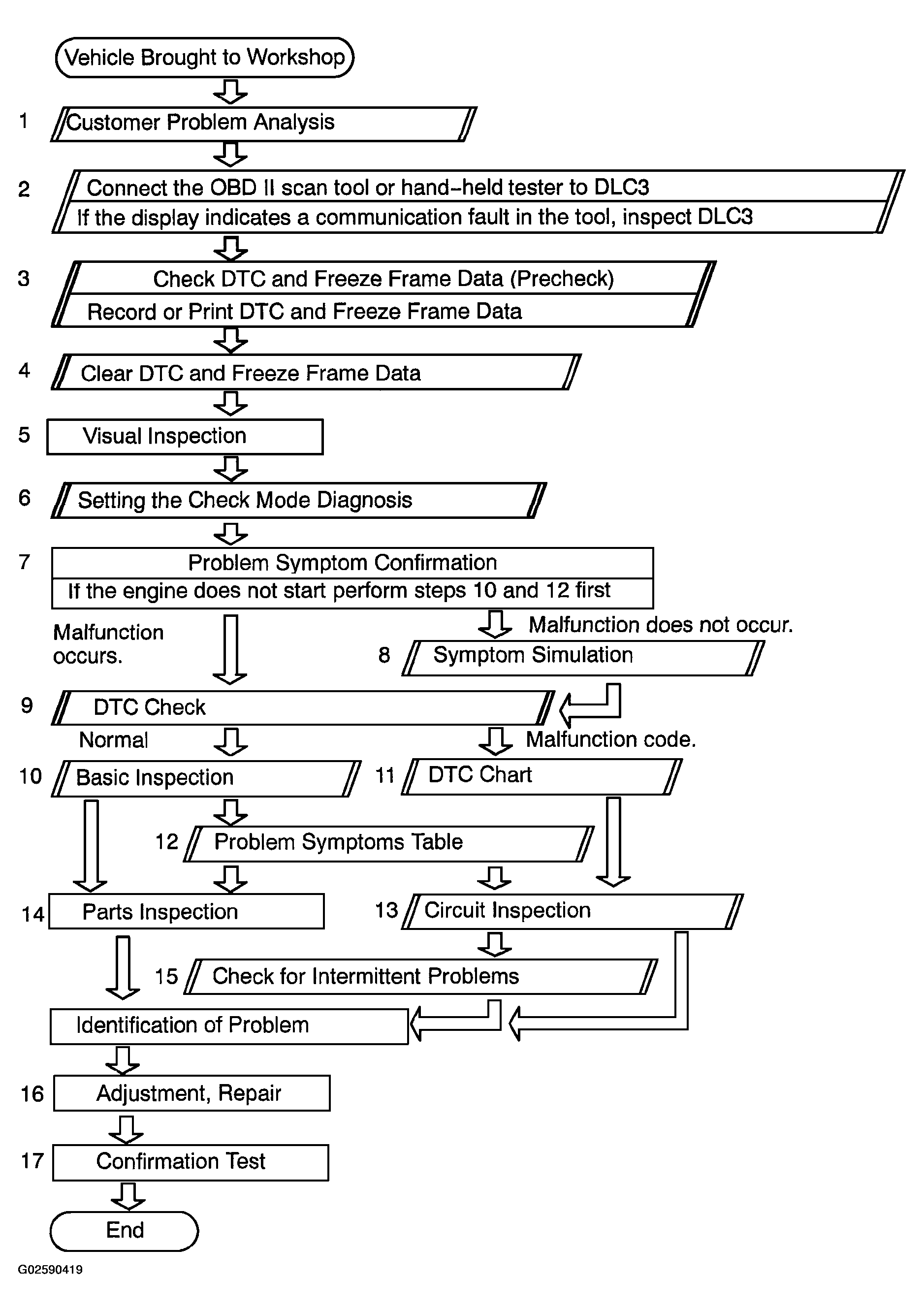

Fig 1: Engine Troubleshooting Flow Chart
G02590419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
