Quarter Window ASSY LH: Components

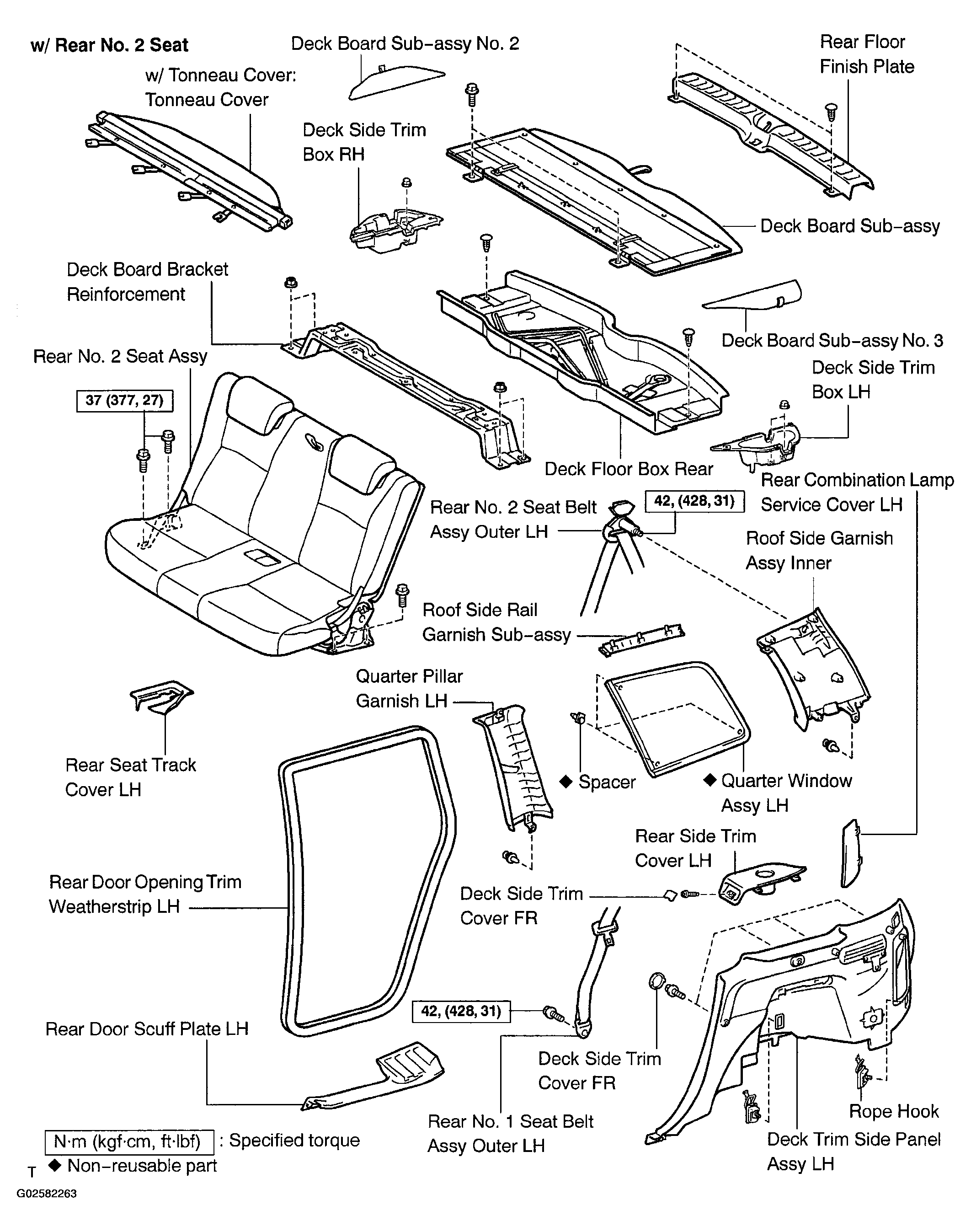

Fig 1: Quarter Window Assy LH Replacement Components With Torque Specifications (W/Rear No. 2 Seat)
G02582263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

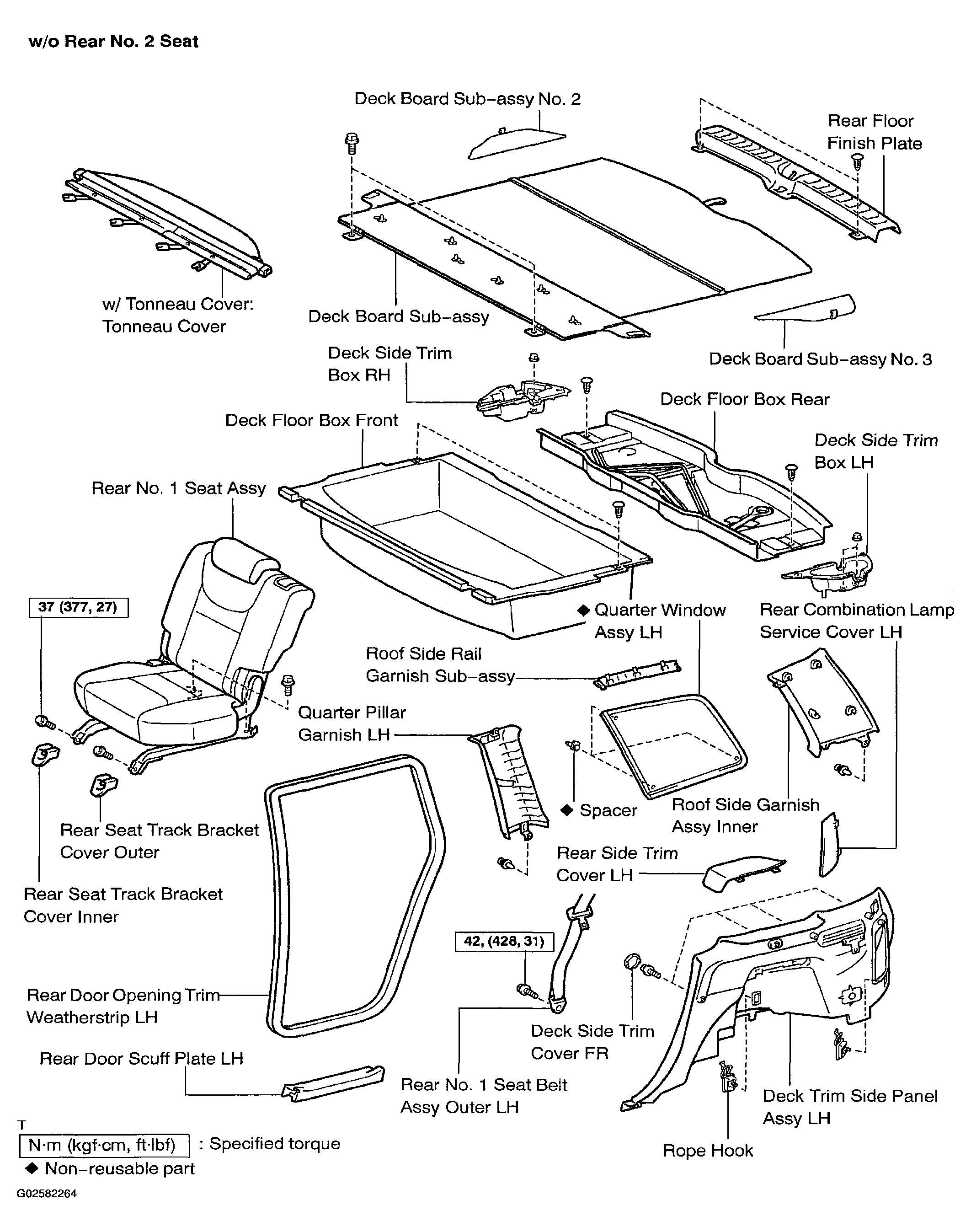

Fig 2: Quarter Window Assy LH Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)
G02582264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
