Front Door: Adjustment

ADJUST DOOR IN FORWARD/BACKWARD AND VERTICAL DIRECTIONS
Using SST, loosen the body side hinge bolts to adjust.

SST 09812-00010

Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

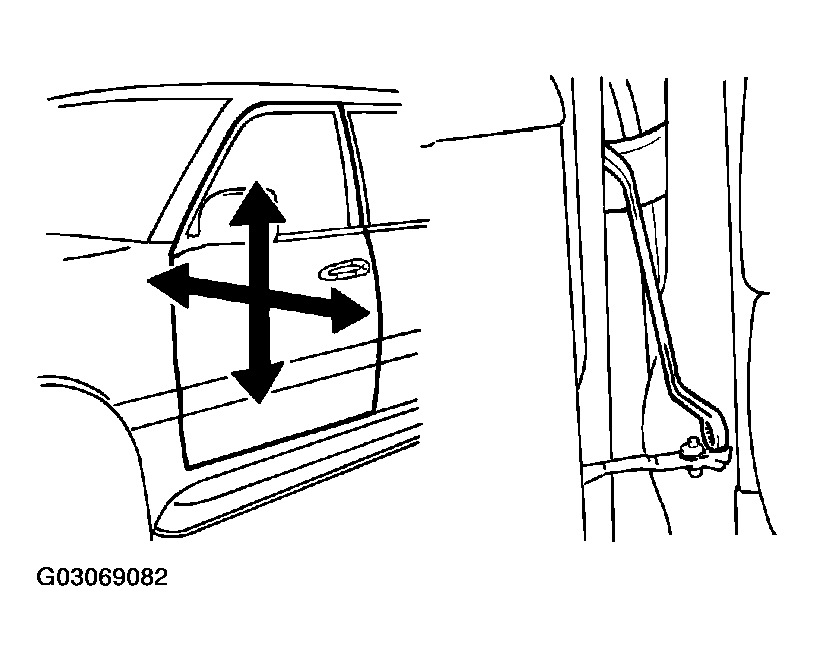

Fig 1: Loosening Body Side Hinge Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR IN RIGHT/LEFT AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust.

HINT:

Substitute the bolt with washer for the centering bolt (See ADJUSTMENT ).

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

Fig 2: Adjusting Door In Right/Left And Vertical Directions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR LOCK STRIKER
1. Check that the door fit and door lock linkages are adjusted correctly.
2. Loosen the striker mounting screws.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
3. Using a plastic hammer, tap the striker to adjust it.

  Fig 3: Adjusting Door Lock Striker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
