Upper Back Door: Components

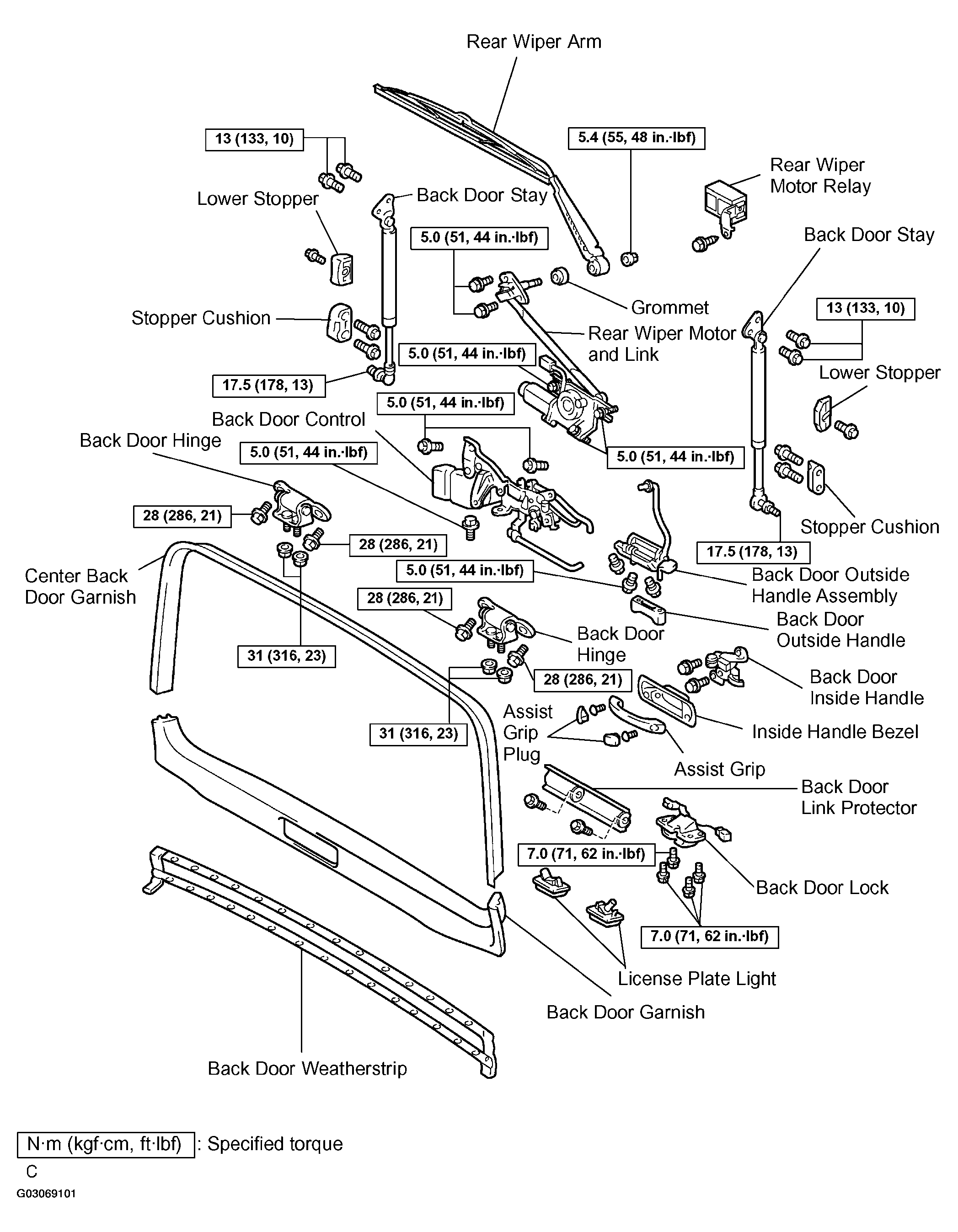

Fig 1: Identifying Upper Back Door Components

G03069101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
