Parts Layout And Schematic Drawing: Location

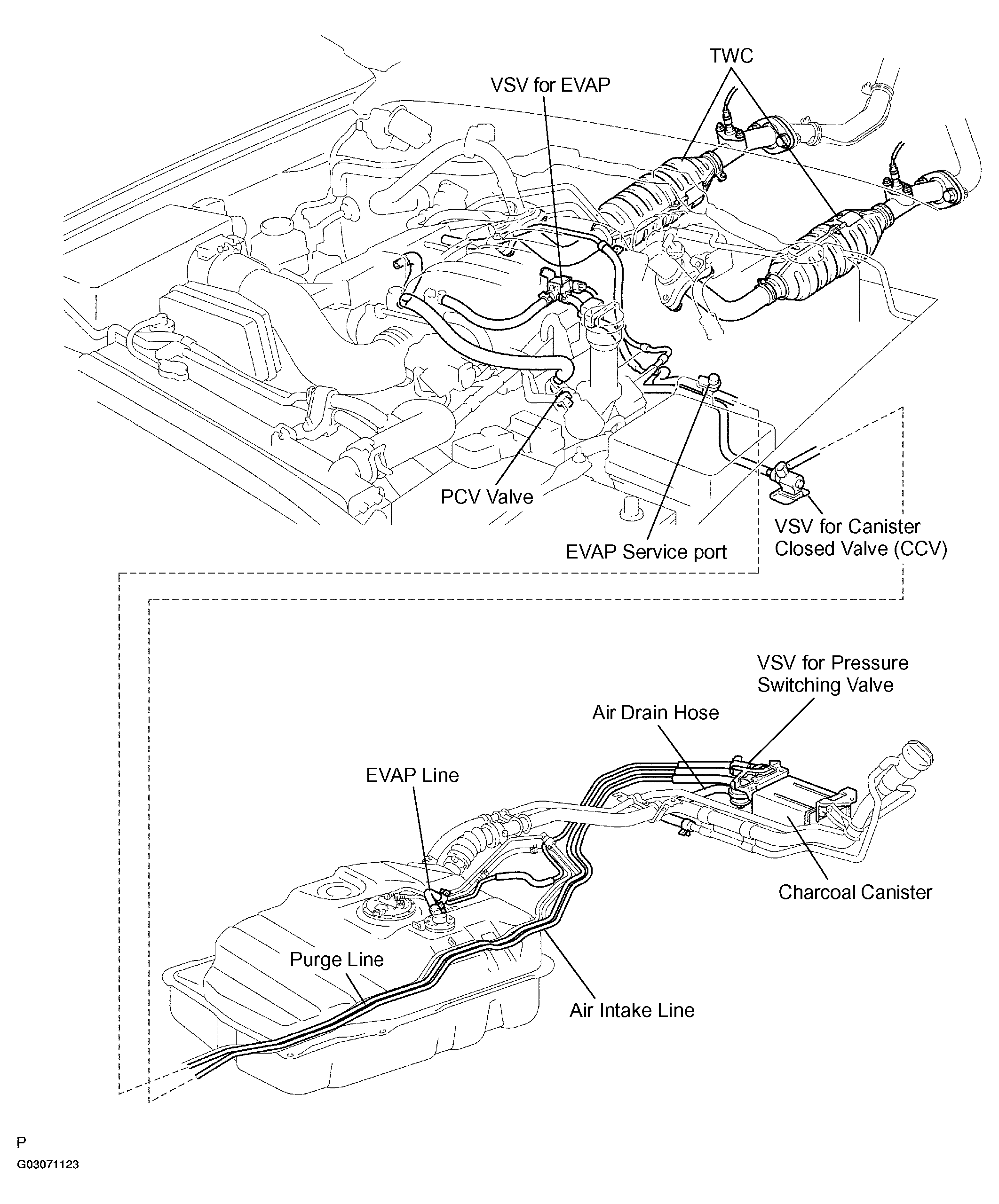

Fig 1: Identifying Emission Control System Parts Location
G03071123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
