Oil Cooler: Components

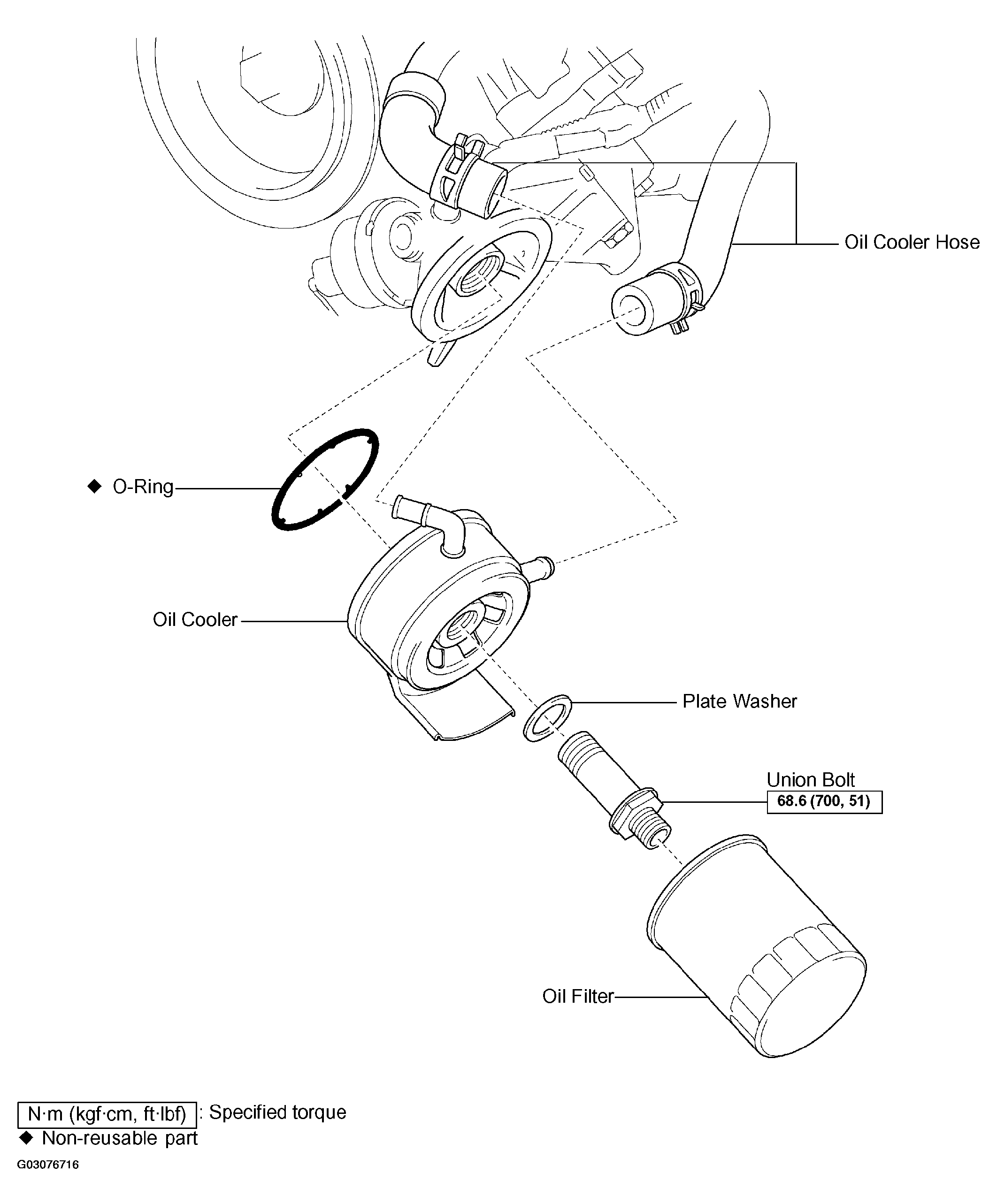

Fig 1: Oil Cooler Replacement Components With Torque Specifications
G03076716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
