Oil Pump: Components

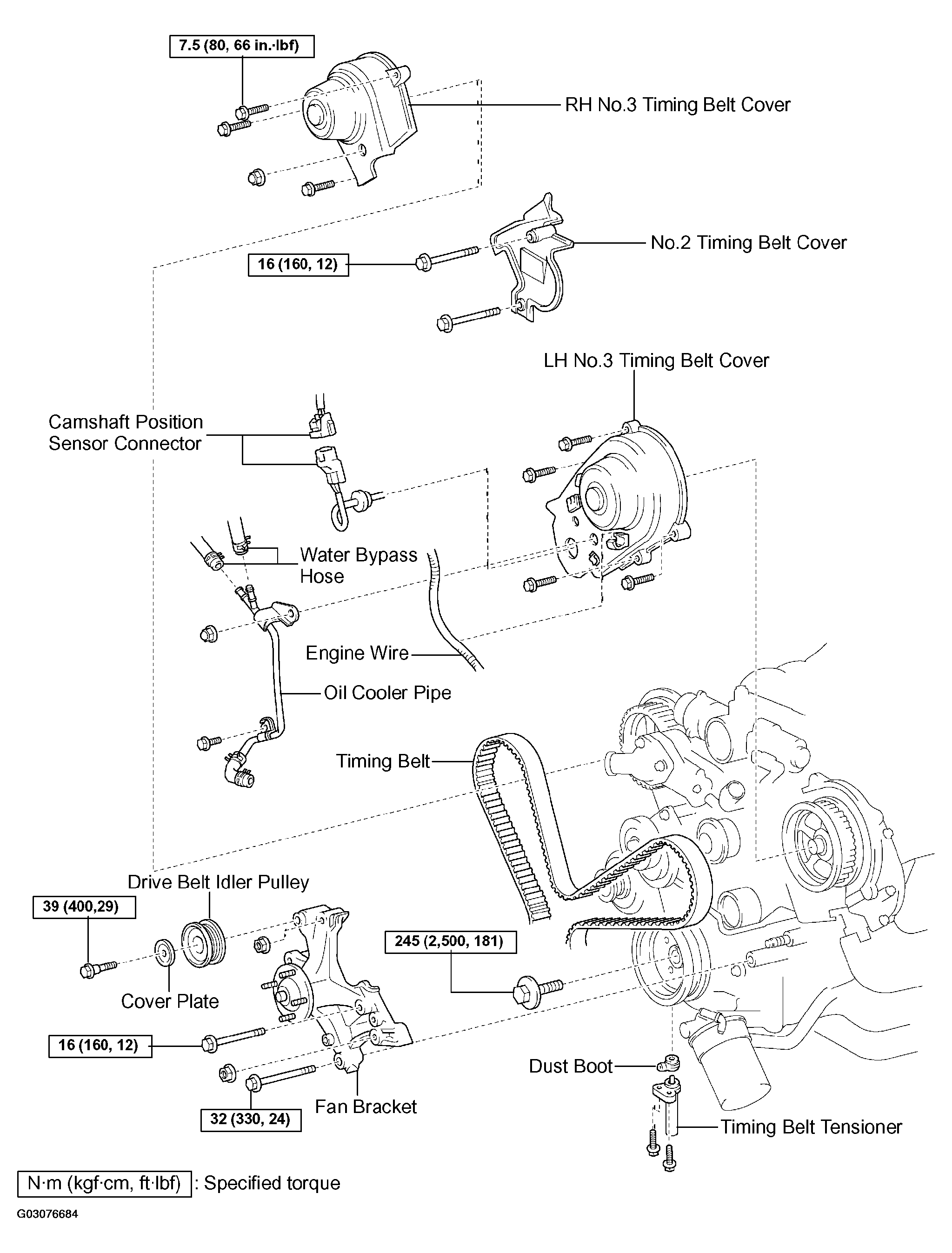

Fig 1: Accessing Oil Pump & Torque Specifications (1 Of 3)
G03076684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

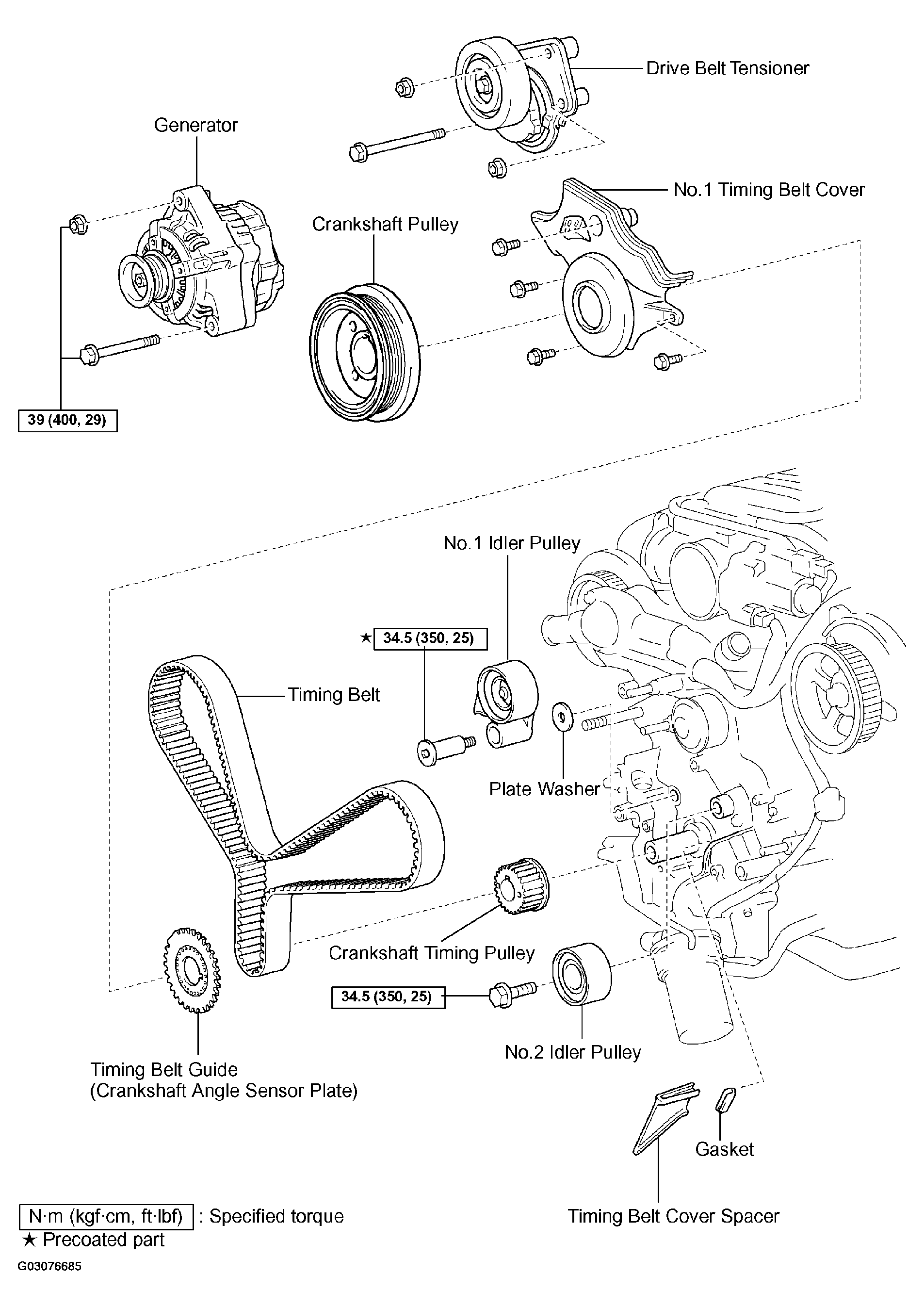

Fig 2: Accessing Oil Pump & Torque Specifications (2 Of 3)
G03076685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

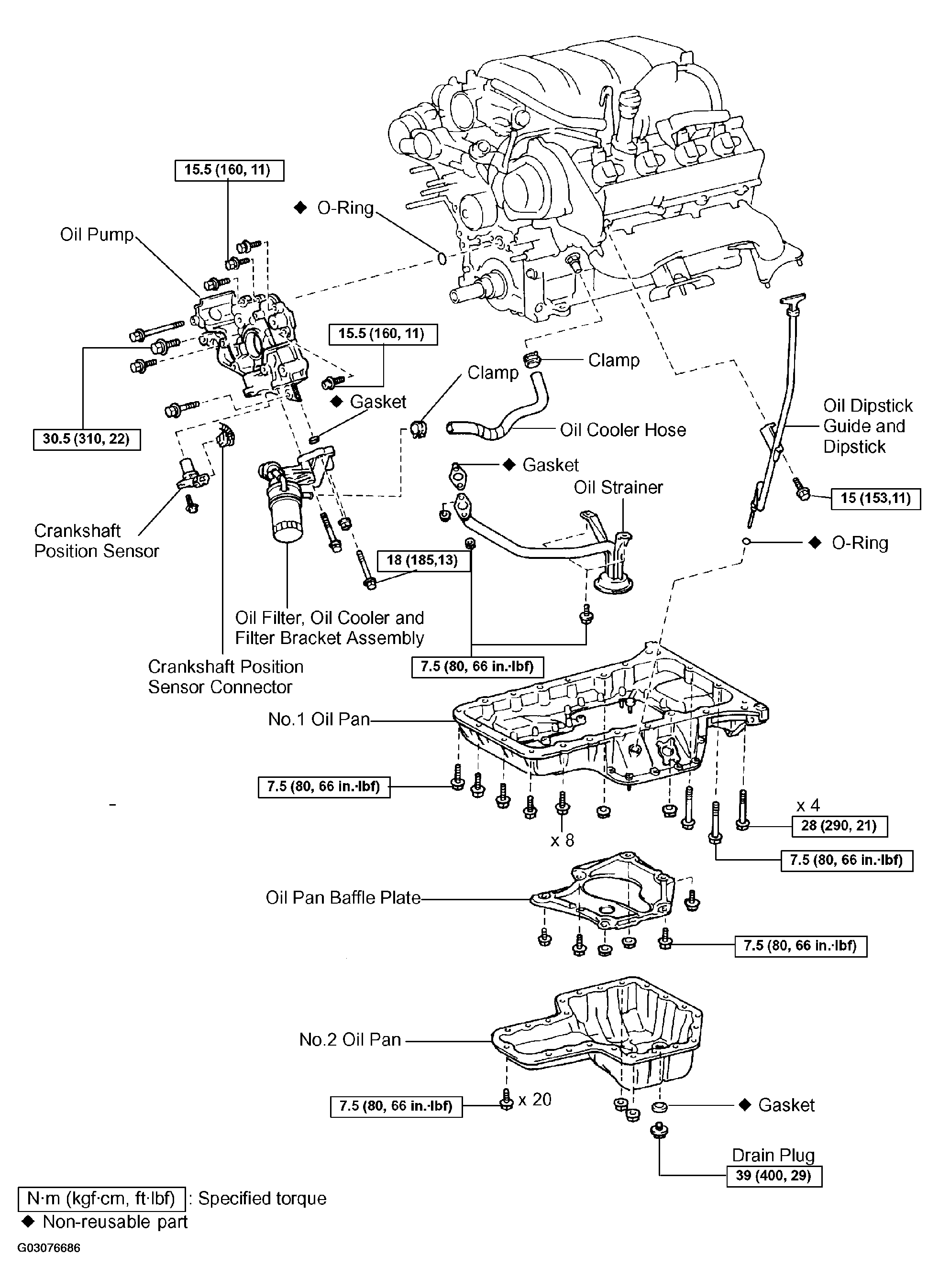

Fig 3: Accessing Oil Pump & Torque Specifications (3 Of 3)
G03076686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

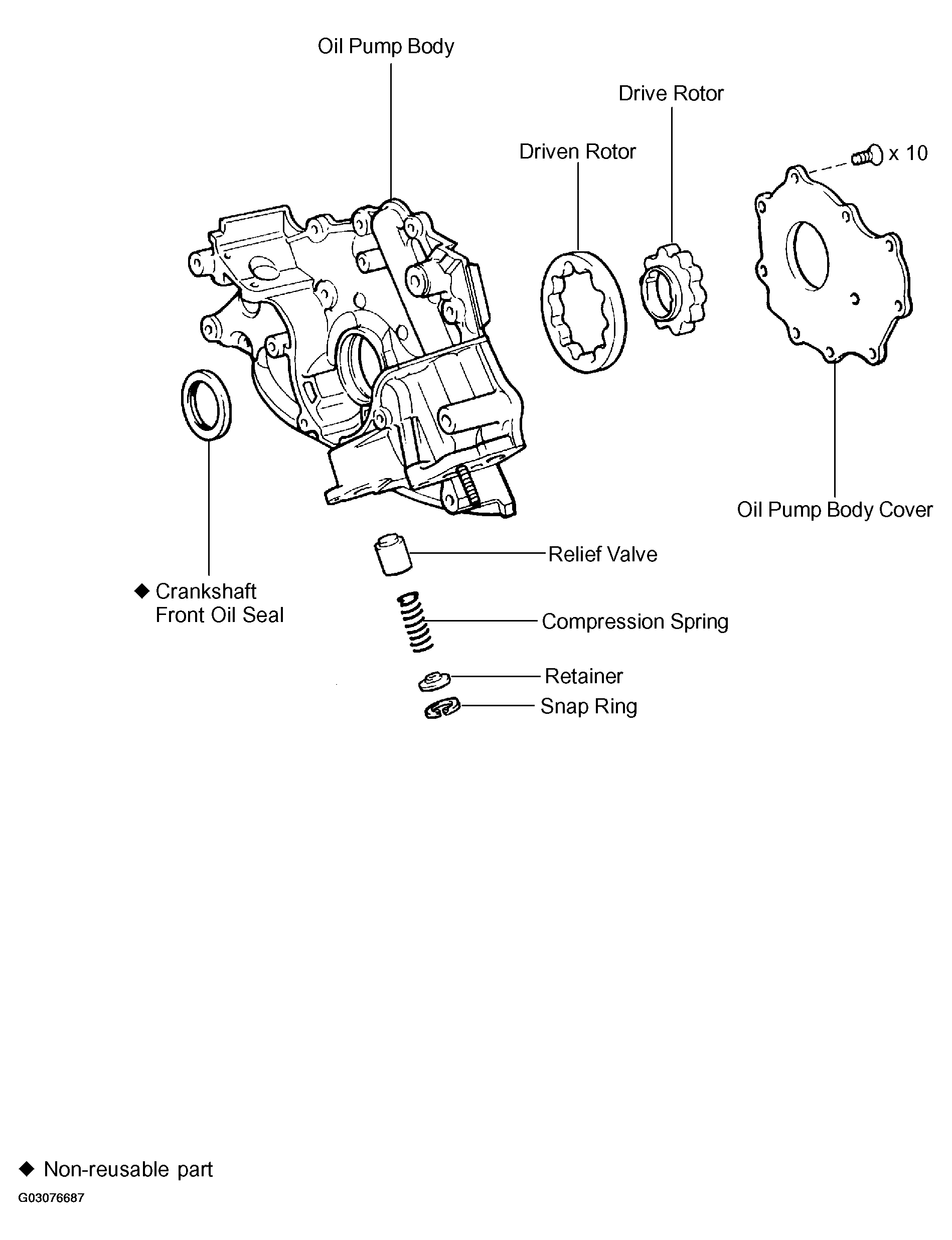

Fig 4: Exploded View Of Oil Pump
G03076687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
