Front Door: Components

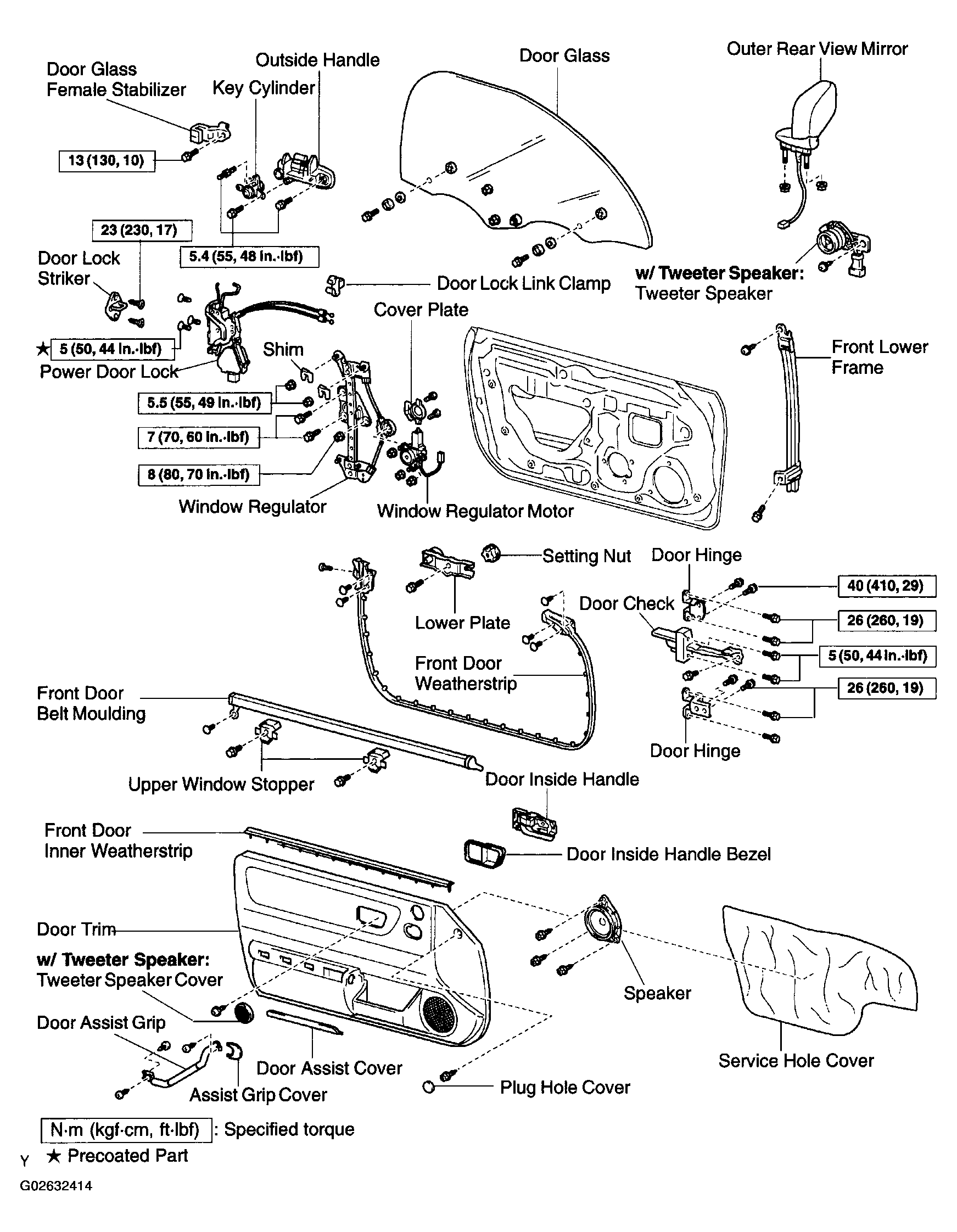

Fig 1: Exploded View Of Front Door Components
G02632414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
