Vehicle Lift And Support Locations

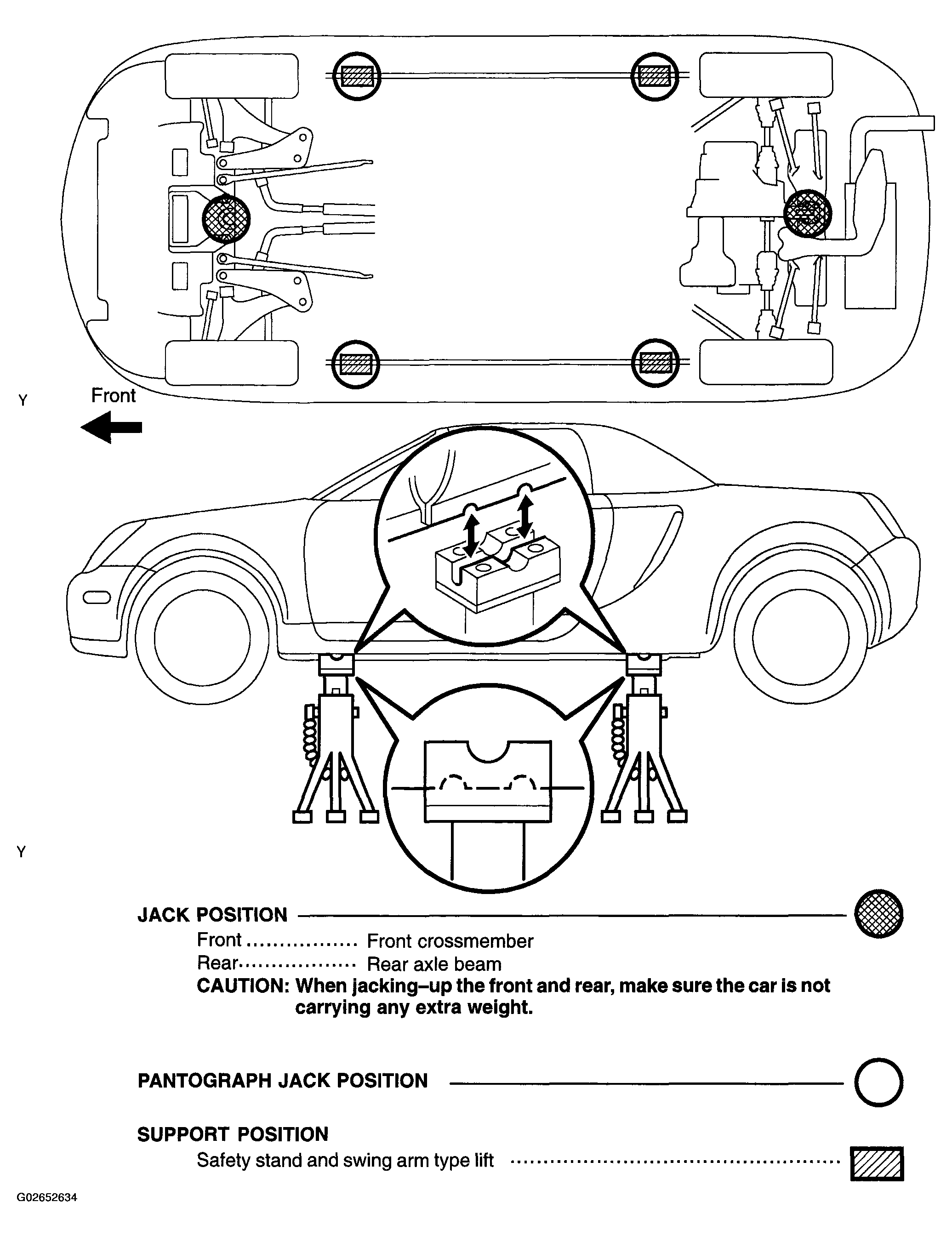

Fig 1: Locating Vehicle Lift And Support
G02652634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

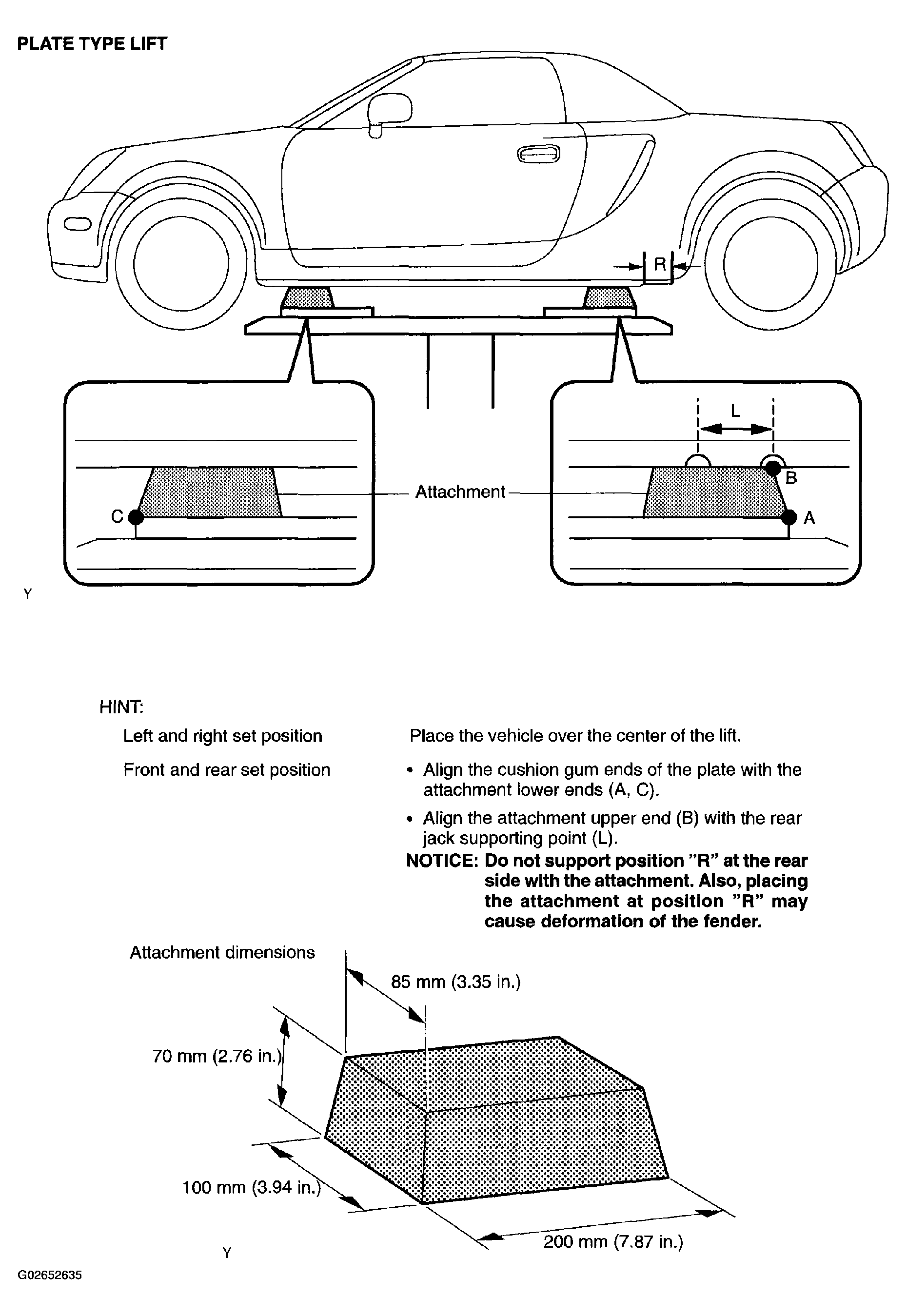

Fig 2: Locating Vehicle Lift And Support (Plate Type Lift)
G02652635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
