Terminals Of Ecu: Notes

  1. NAVIGATION RECEIVER ASSY
    Fig 1: Identifying ECU Terminals
    G02677744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

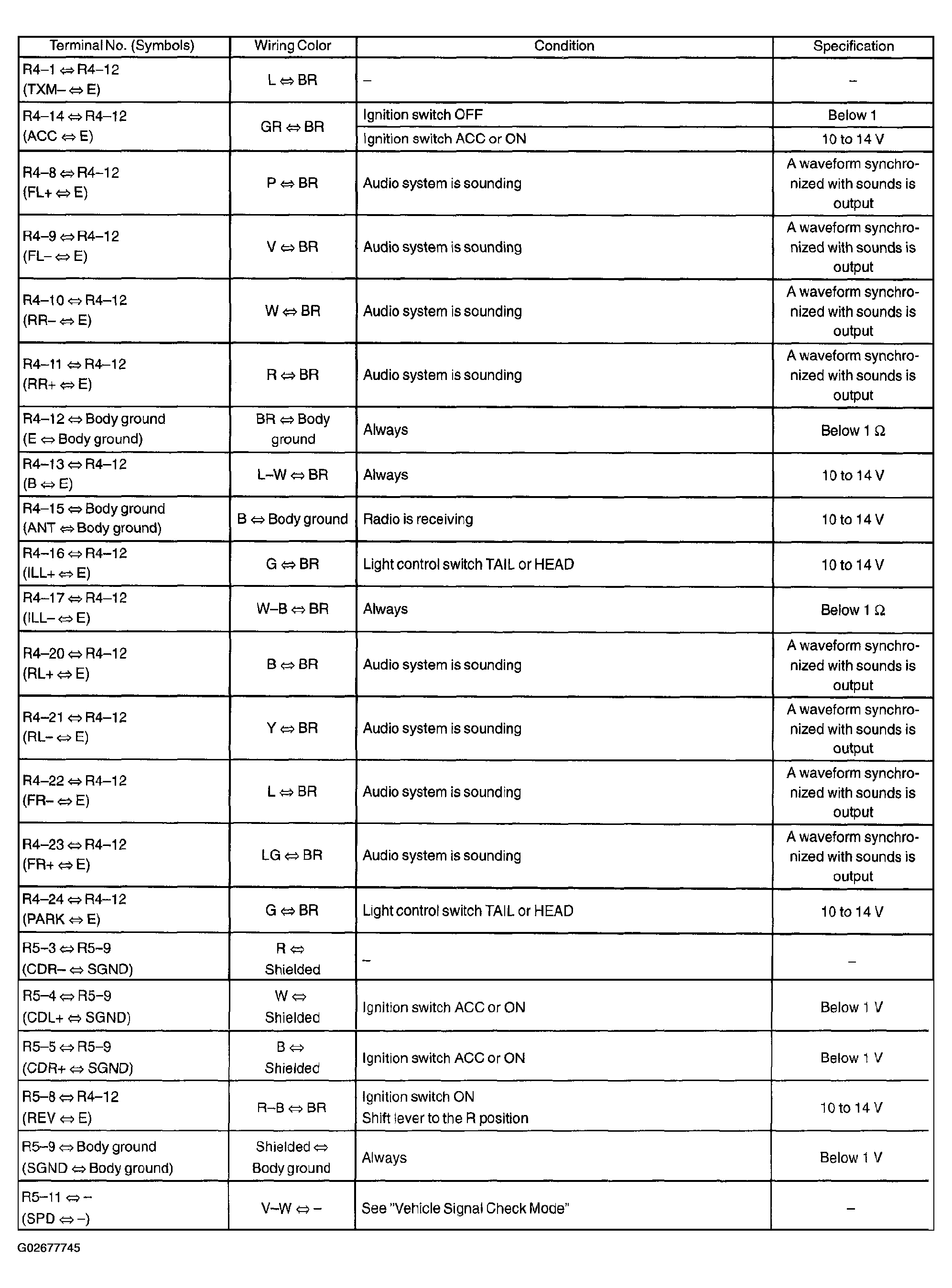

    Fig 2: ECU Terminals Voltage And Resistance Chart
    G02677745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISK PLAYER CHANGE
    Fig 3: Identifying Disk Player Changer Connector Terminals
    G02677746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

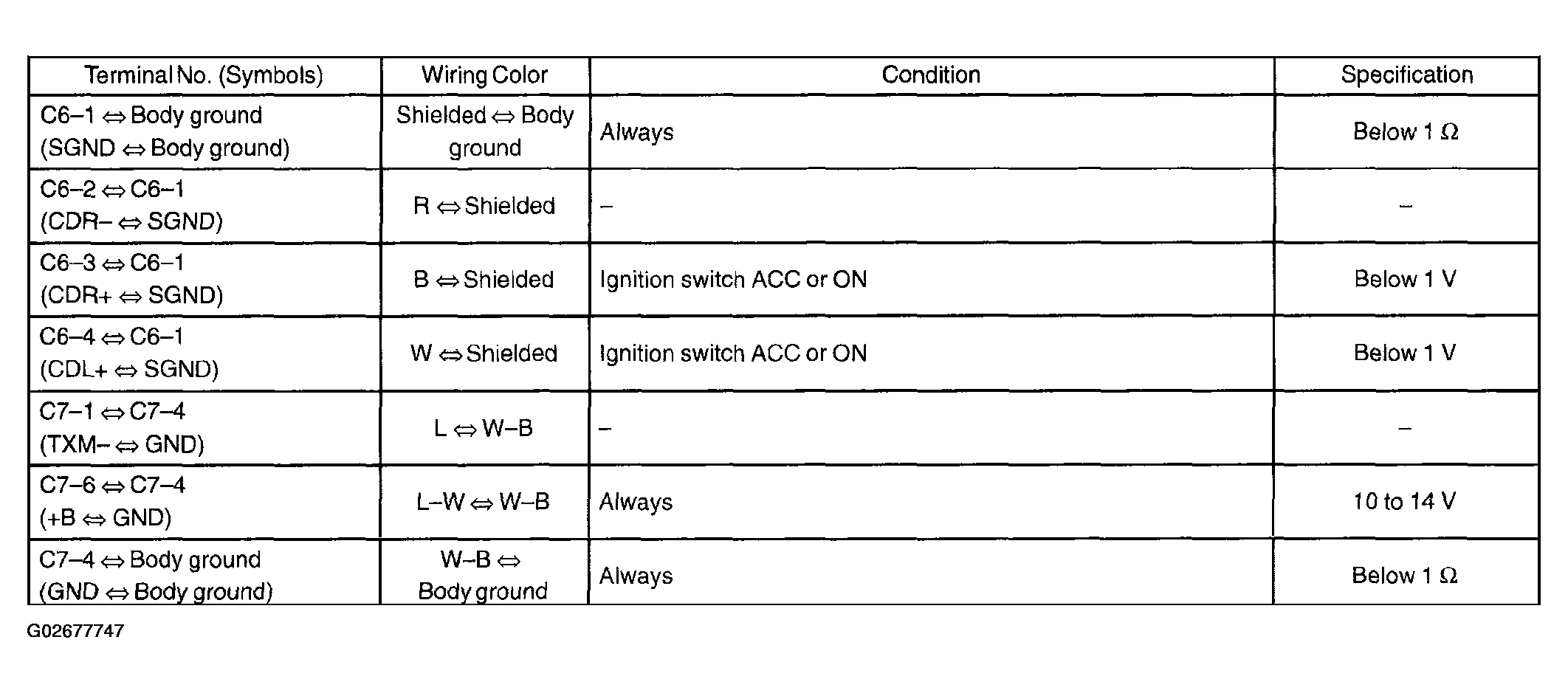

    Fig 4: Disk Player Changer Connector Terminals Voltage And Resistance Chart
    G02677747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
