Right Hand Relay Block

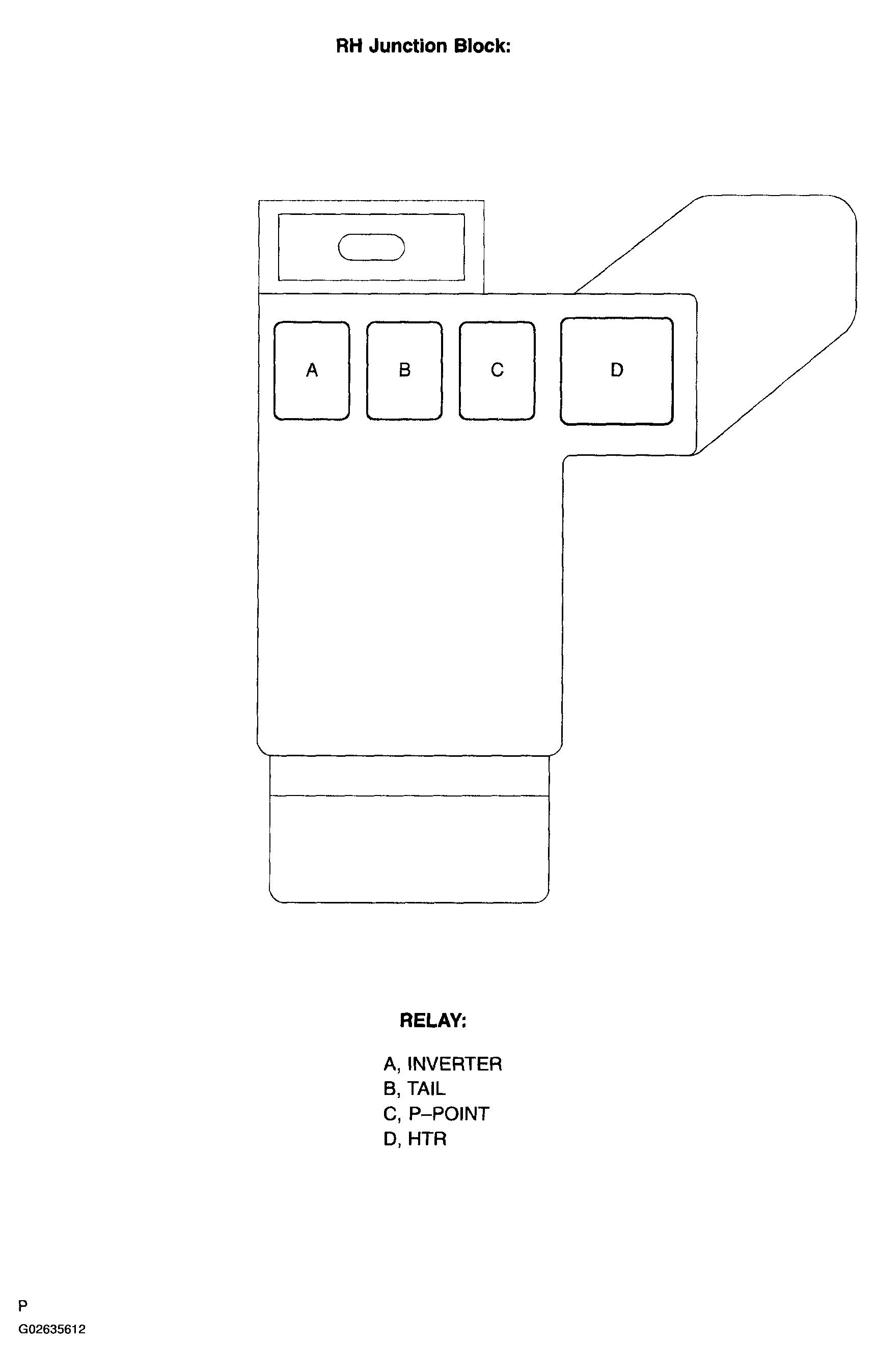

The right hand relay block is located under the right side of the instrument panel. See Figure.
RH JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A | Inverter Relay |
| B | Tail Relay |
| C | P-Point Relay |
| D | HTR Relay |
The right hand relay block is located under the right side of the instrument panel. See Figure.
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A | Inverter Relay |
| B | Tail Relay |
| C | P-Point Relay |
| D | HTR Relay |
