OEM General Information: Preparation: Windshield/WINDOWGLASS/Mirror: Preparation

Recommended Tools

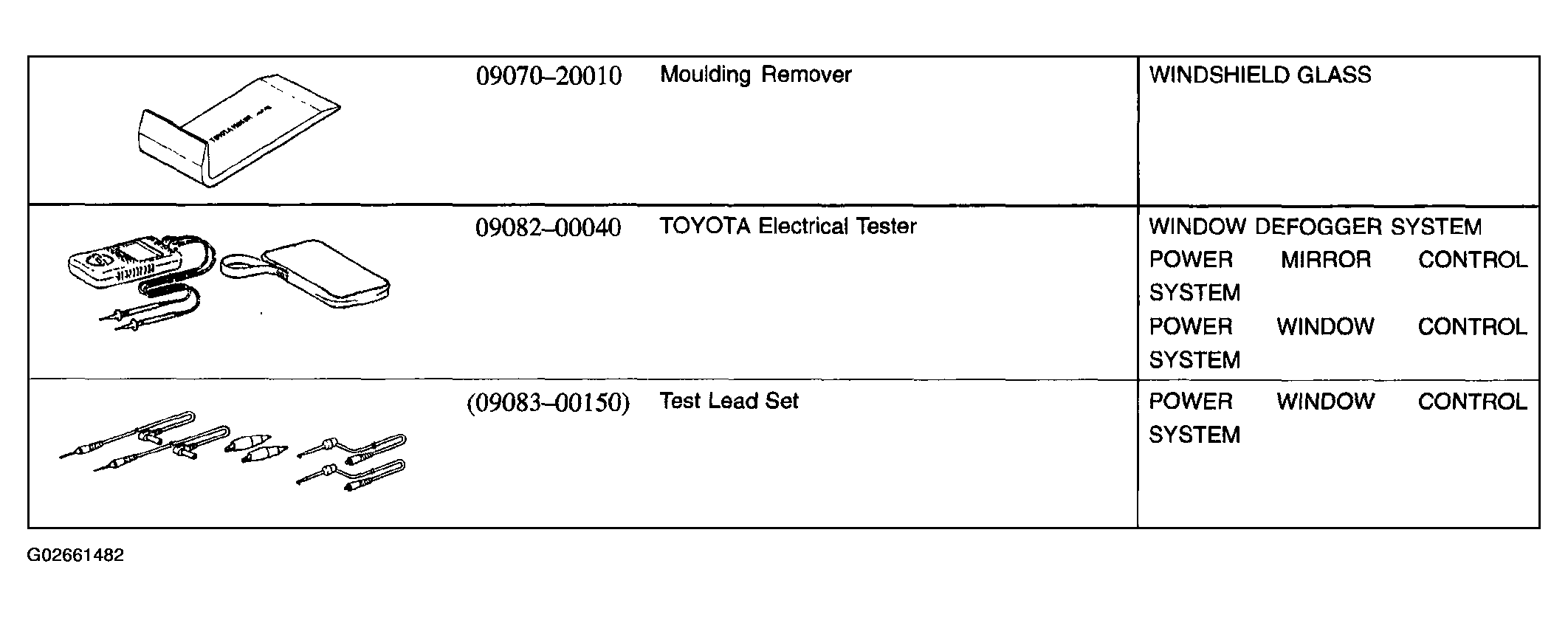

Fig 1: Recommended Tools Description Chart (Windshield/Windowglass/Mirror)
G02661482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT DETAILS

Adhesive
Knife
Piano wire Windshield
Plastic sheet To avoid surface damage.
Sealer gun
Torque wrench
Tape To avoid surface damage.
Wooden block or similar object For tying both piano wire ends

SSM

SPECIAL SERVICE MATERIALS DETAILS

08833-00030 Three cement black or equivalent WINDSHIELD GLASS QUARTER WINDOW ASSY LH
08850-00801 Windshield Glass Adhesive Set or equivalent WINDSHILED GLASS QUARTER WINDOW ASSY LH
