Inspection Procedure
- CHECK SECURITY INDICATOR
- Remove the security indicator.
- Apply battery voltage and check that the security indicator turns on.
MEASUREMENT CONDITION CHARTMeasurement Condition Specified Condition Battery positive (+) - Terminal 2 Battery negative (-) - Terminal 1 Security indicator turns on - NG: REPLACE SECURITY INDICATOR
OK: GO TO NEXT STEP

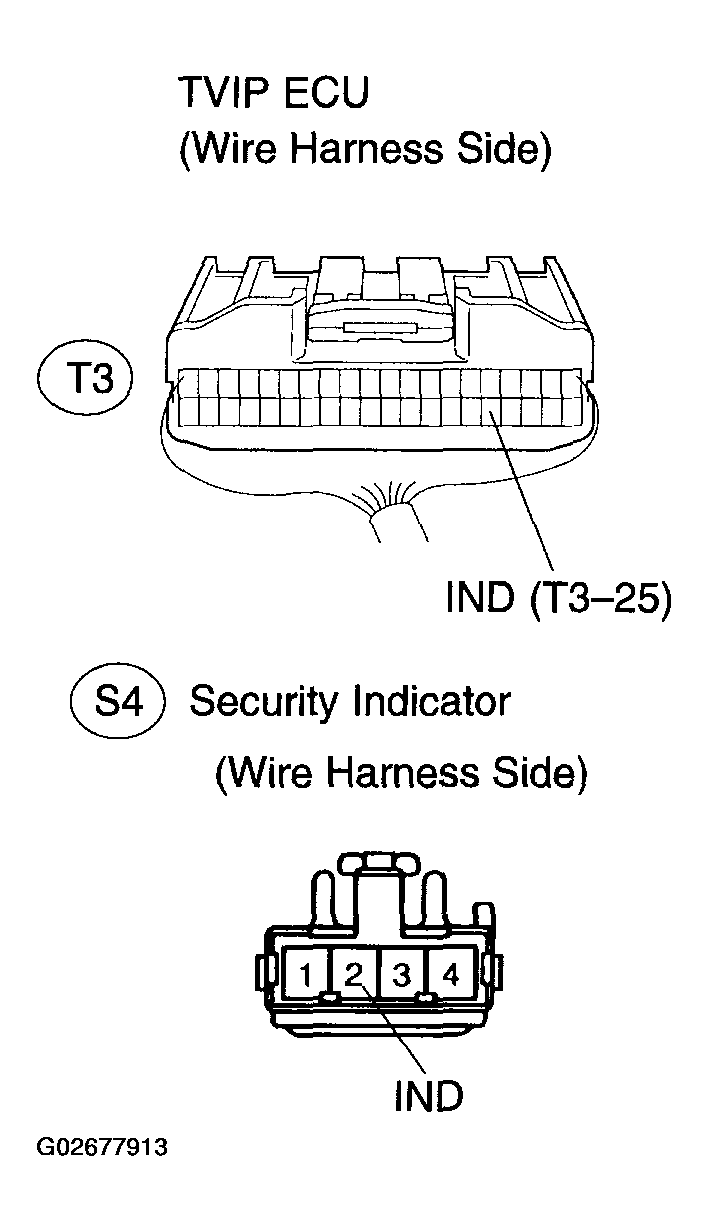

- CHECK WIRE HARNESS (TVIP ECU - SECURITY INDICATOR)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the TVIP ECU and security indicator connectors.
- Measure the resistance of the wire harness side connectors.TESTER CONNECTION SPECIFIED CONDITION CHART (1 OF 2)
Tester Connection Specified Condition IND(T3-25)-IND(S4-2) Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
OK: Go to next step
- CHECK WIRE HARNESS (SECURITY INDICATOR - BODY GROUND)
- Disconnect the security indicator connector.
- Measure the resistance of the wire harness side connector.TESTER CONNECTION SPECIFIED CONDITION CHART (2 OF 2)
Tester Connection Specified Condition GND (S4-1) - Body ground Below 1 Ω - NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
OK: Go to next step
CHECK AND REPLACE TVIP ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
