Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG) and press the hand-held tester main switch ON.
3. Read the DATA LIST according to the display on the tester.

   Smart key ECU:

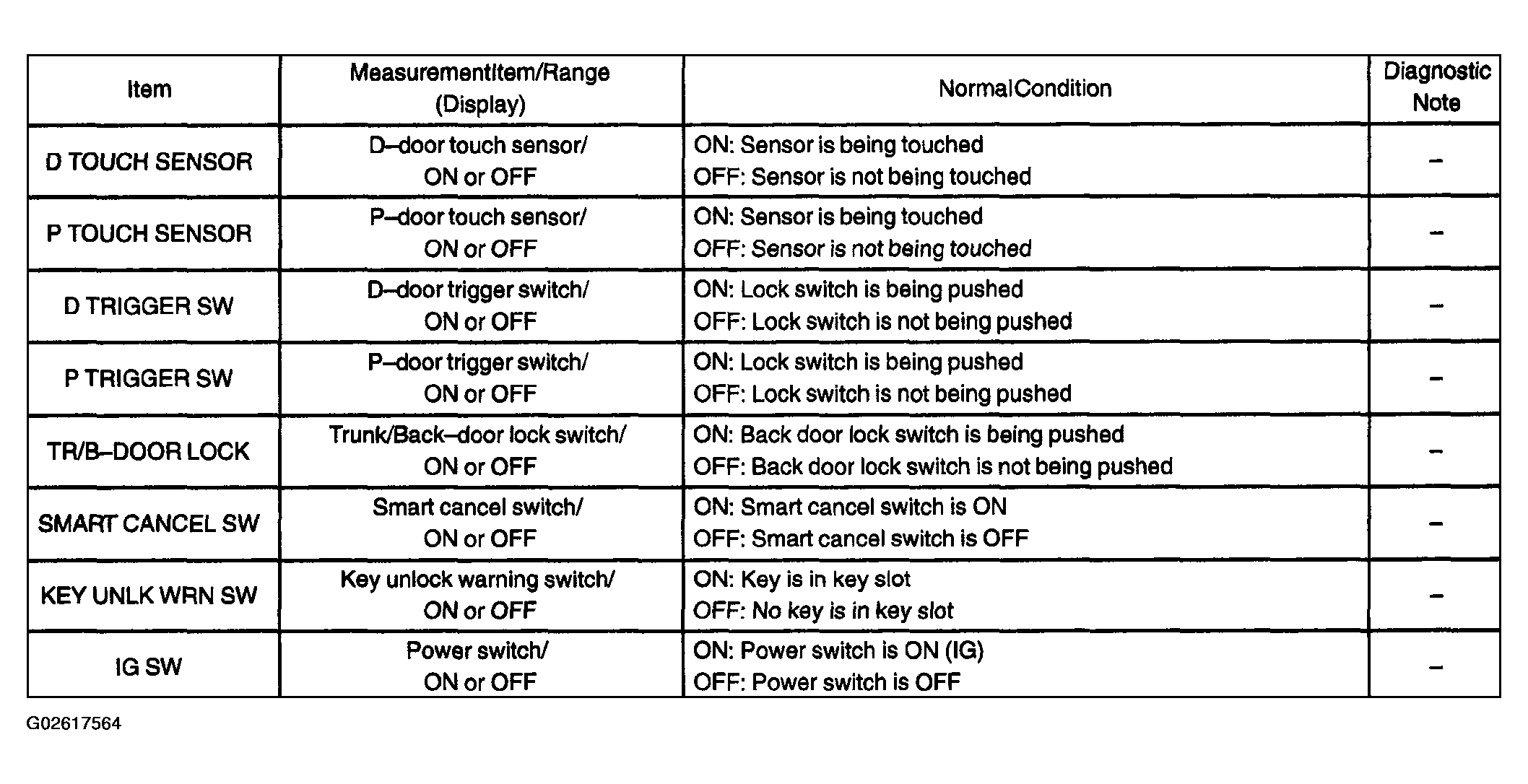

   Fig 1: Data List (Smart Key ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG) and press the hand-held tester main switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.

   Smart key ECU:

   ACTIVE TEST (SMART KEY ECU)



   Item	Test Details	Diagnostic Note
   D TRANSMITTER	Driver side transmitter ON/OFF
   P TRANSMITTER	Passenger side transmitter ON/OFF
   FR TRANSMITTER	Front transmitter ON/OFF
   IN BDR TRNSMTTR	Back door inner transmitter ON/OFF
   BDOOR TRNSMTTR	Back door outer transmitter ON/OFF
   D SELECT SIG	Driver side select ON/OFF
   P SELECT SIG	Passenger side select ON/OFF
