Problem Symptoms Table

Proceed to the reference page shown in the table below for each malfunction symptom and troubleshoot each circuit.

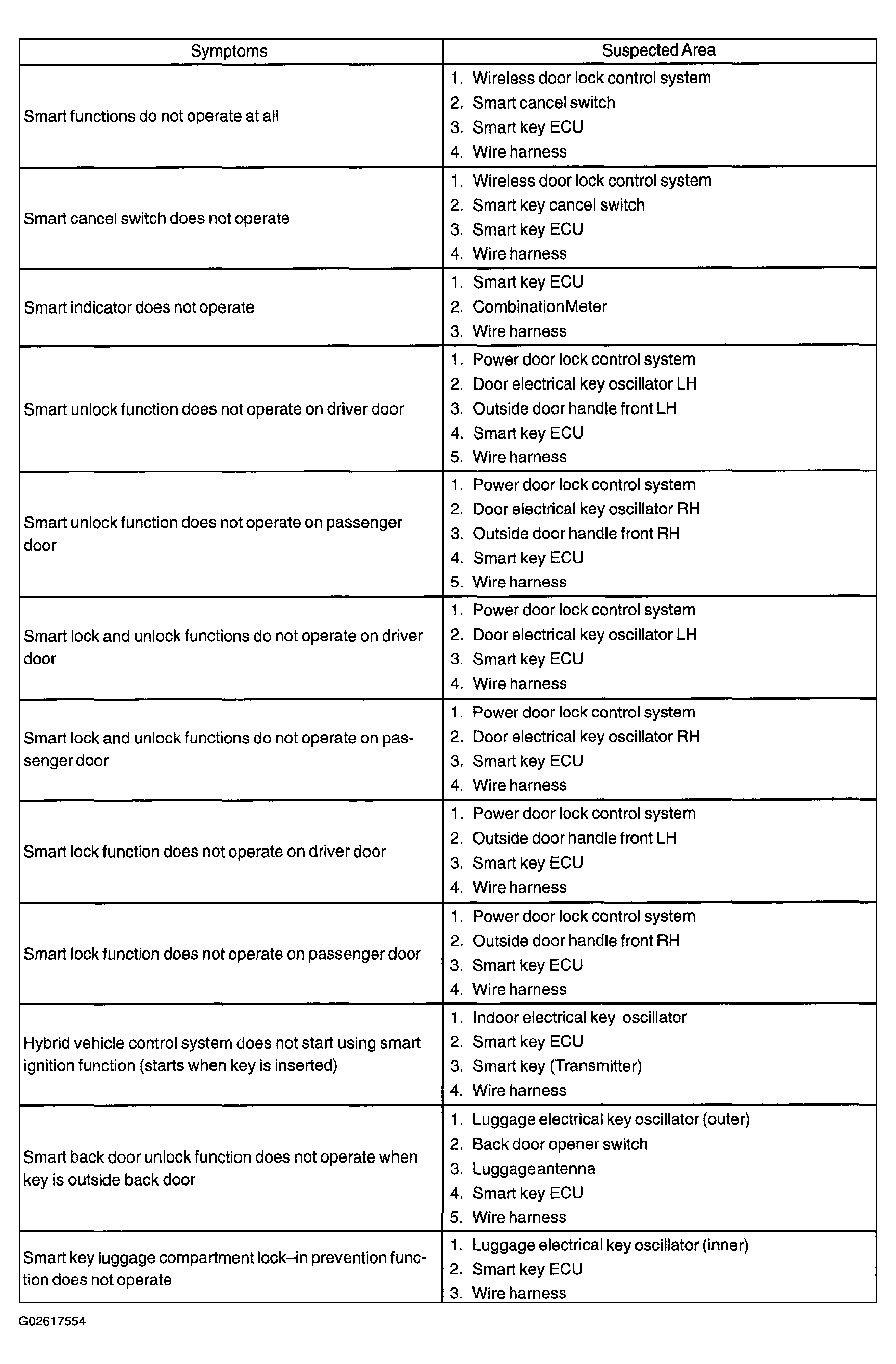

Fig 1: Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
