Inspection Procedure
- CHECK WIRELESS DOOR LOCK OPERATION
- Check that the wireless door lock function operates normally.
OK: Wireless door lock function operates normally.
- NG: Go to WIRELESS DOOR LOCK CONTROL SYSTEM (w/ SMART ENTRY SYSTEM) (See HOW TO PROCEED WITH TROUBLESHOOTING )
- OK: GO TO NEXT STEP
- Check that the wireless door lock function operates normally.
- READ DATA LIST (SMART KEY CANCEL SWITCH)
- Connect the hand-held tester (with CAN VIM) to the DLC3.
- Turn the power switch from OFF to ON (IG) and press the hand-held tester main switch ON.
- Select the item below in the DATA LIST and read the displays on the hand-held tester.
Smart key ECU:
OK: OFF (smart cancel switch is OFF) appears on the screen.
- NG: Go to STEP3
- OK: GO TO NEXT STEP
REPLACE SMART KEY ECU ASSY

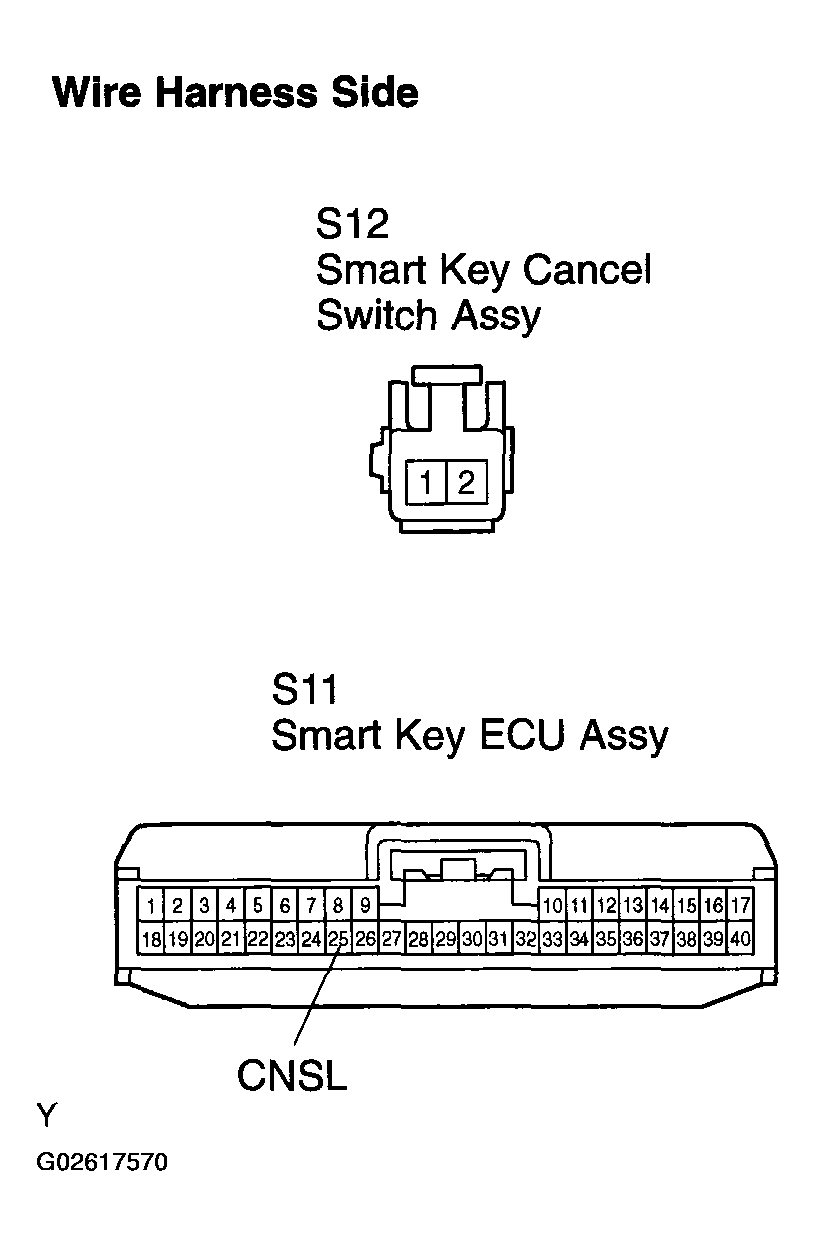

- CHECK WIRE HARNESS (SMART KEY CANCEL SWITCH ASSY - SMART KEY ECU ASSY AND BODY GROUND)
- Disconnect S12 switch connector.
- Disconnect S11 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition S12-1 - S11-25 (CNSL) Below 1 Ω S12-2 - Body ground Below 1 Ω S12-1 or S11-25 (CNSL) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
- INSPECT SMART KEY CANCEL SWITCH ASSY (See INSPECTION
)
- NG: REPLACE SMART KEY CANCEL SWITCH ASSY
- OK: GO TO NEXT STEP
REPLACE SMART KEY ECU ASSY
