Smart Key Luggage Lock-In Prevention Function Does Not Operate: Wiring Diagram

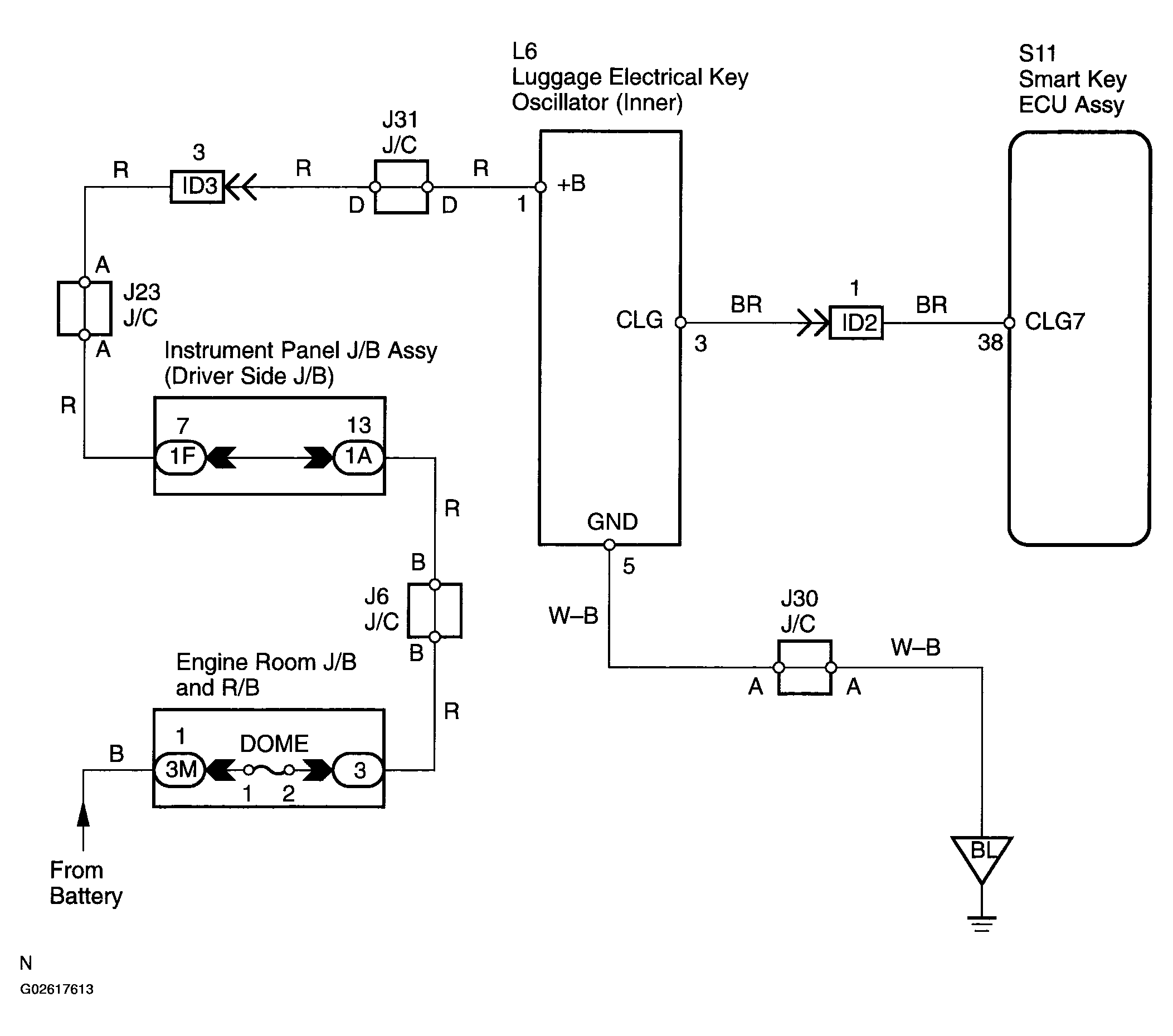

Fig 1: Wiring Diagram - Smart Key Luggage Lock-In Prevention Function Does Not Operate
G02617613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
