Inspection Procedure
- CHECK MANUAL DOOR LOCK OPERATION
- Check that the manual door lock function operates normally.
OK: Manual door lock function operates normally.
- NG: Go to POWER DOOR LOCK CONTROL SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )
- OK: GO TO NEXT STEP
- Check that the manual door lock function operates normally.
- READ DATA LIST (LOCK SWITCH)
- Connect the hand-held tester (with CAN VIM) to the DLC3.
- Turn the power switch ON (IG) and press the hand-held tester main switch ON.
- Select the items below in the DATA LIST and read the displays on the hand-held tester.
Smart key ECU:
OK: ON (lock switch is pushed) appears on the screen.
- NG: Go to STEP3
- OK: GO TO NEXT STEP
REPLACE SMART KEY ECU ASSY
- CHECK WIRE HARNESS (ELECTRICAL KEY ANTENNA LH - SMART KEY ECU ASSY AND BODY GROUND)
- Disconnect E8 antenna connector.
- Disconnect S11 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard:

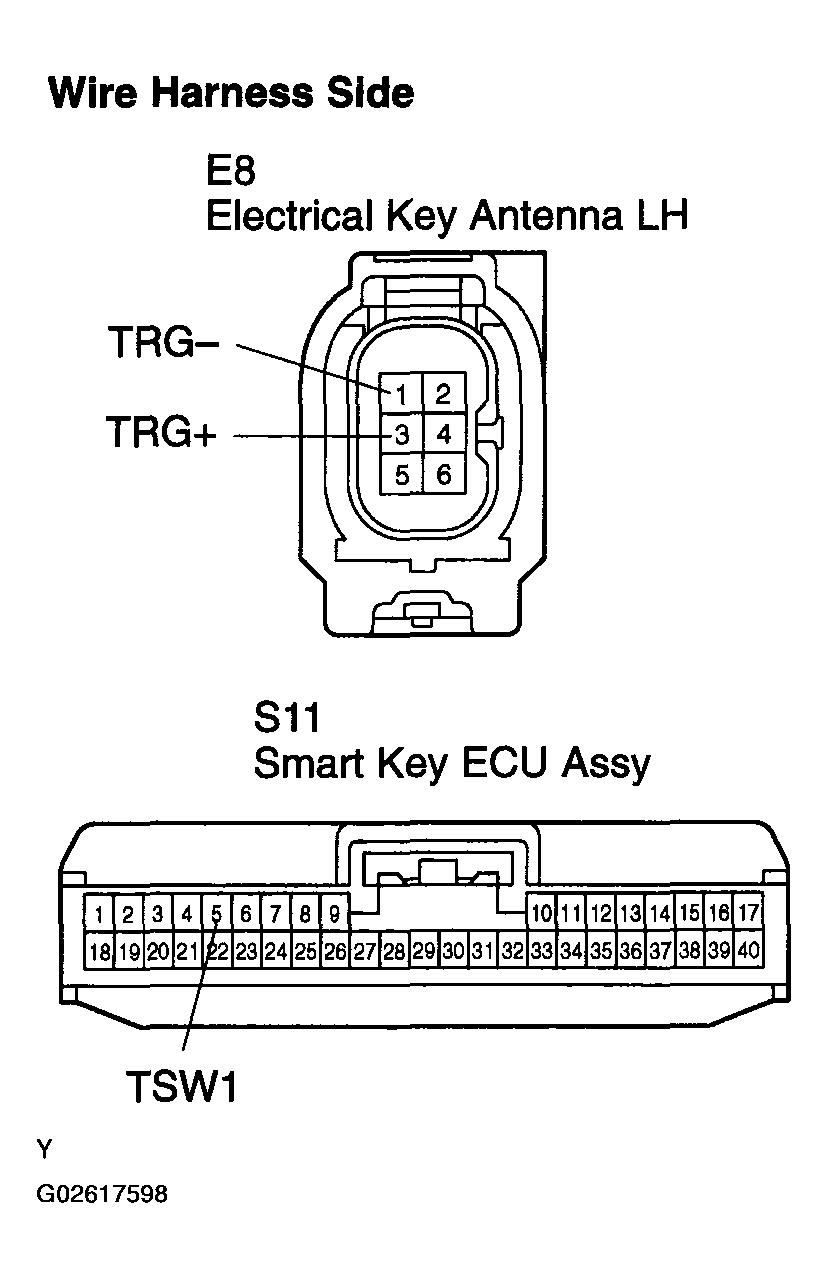

TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition E8-3 (TRG+) - S11-5 (TSW1) Below 1 Ω E8-1 (TRG-) - Body ground Below 1 Ω E8-3 (TRG+) or S11-5 (TSW1) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
- INSPECT ELECTRICAL KEY ANTENNA LH (See INSPECTION
)
- NG: REPLACE ELECTRICAL KEY ANTENNA
- OK: GO TO NEXT STEP
REPLACE SMART KEY ECU ASSY
