Inspection Procedure

  1. CHECK POWER WINDOW REGULATOR SWITCH ASSY FRONT RH (POWER SOURCE VOLTAGE)
    1. Disconnect the P14 regulator switch connector.
    2. Measure the voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      P14-4 - Body ground Power switch ON (IG) 10 to 14 V
      Fig 1: Checking Power Window Regulator Switch Assembly Front RH (Power Source Voltage)
      G02617404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSY - POWER WINDOW REGULATOR SWITCH)
    2. OK
  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY FRONT RH (SEE  INSPECTION   )
    1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY FRONT RH
    2. OK
  3. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY FRONT RH - POWER WINDOW REGULATOR MOTOR ASSY FRONT RH)
    1. Disconnect the P14 switch connector.
    2. Disconnect the P19 motor connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P14-1-P19-1 Below 1 Ω
      P14-3-P19-2 Below 1 Ω
      P14-1 or P19-1 - Body ground 10 kΩ or higher
      P14-3 or P19-2 - Body ground 10 Ω or higher

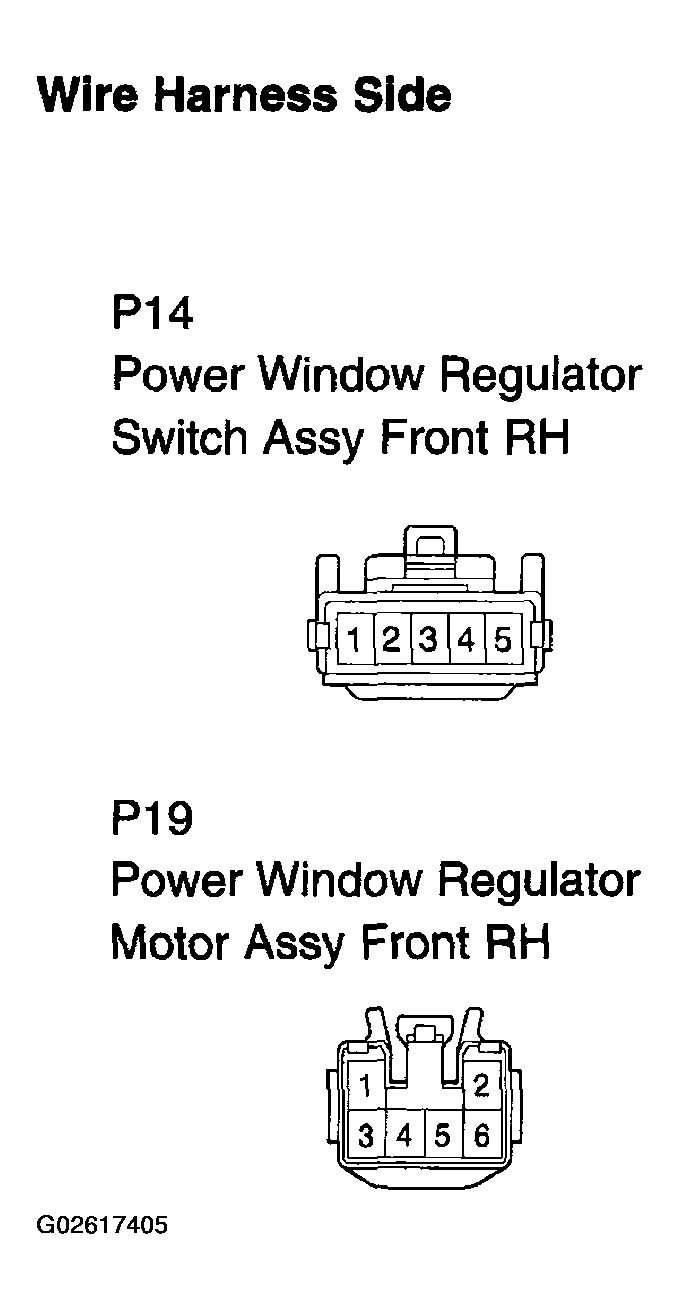

      Fig 2: Identifying Wire Harness (Power Window Regulator Switch Assembly Front RH - Power Window Regulator Motor Assembly Front RH)
      G02617405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK
  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSY FRONT RH (SEE  INSPECTION   )
    1. NG: REPLACE POWER WINDOW REGULATOR MOTOR
    2. OK
  5. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - POWER WINDOW REGULATOR SWITCH FRONT RH)
    1. Disconnect the P17 master switch connector.
    2. Disconnect the P14 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P17-13 (PU)-P14-5 Below 1Ω
      P17-15 (PD)-P14-2 Below 1 Ω
      P17-13 (PU) or P14-5- Body ground 10 kΩ or higher
      P17-15 (PD) or P14-2- Body ground 10 kΩ or higher

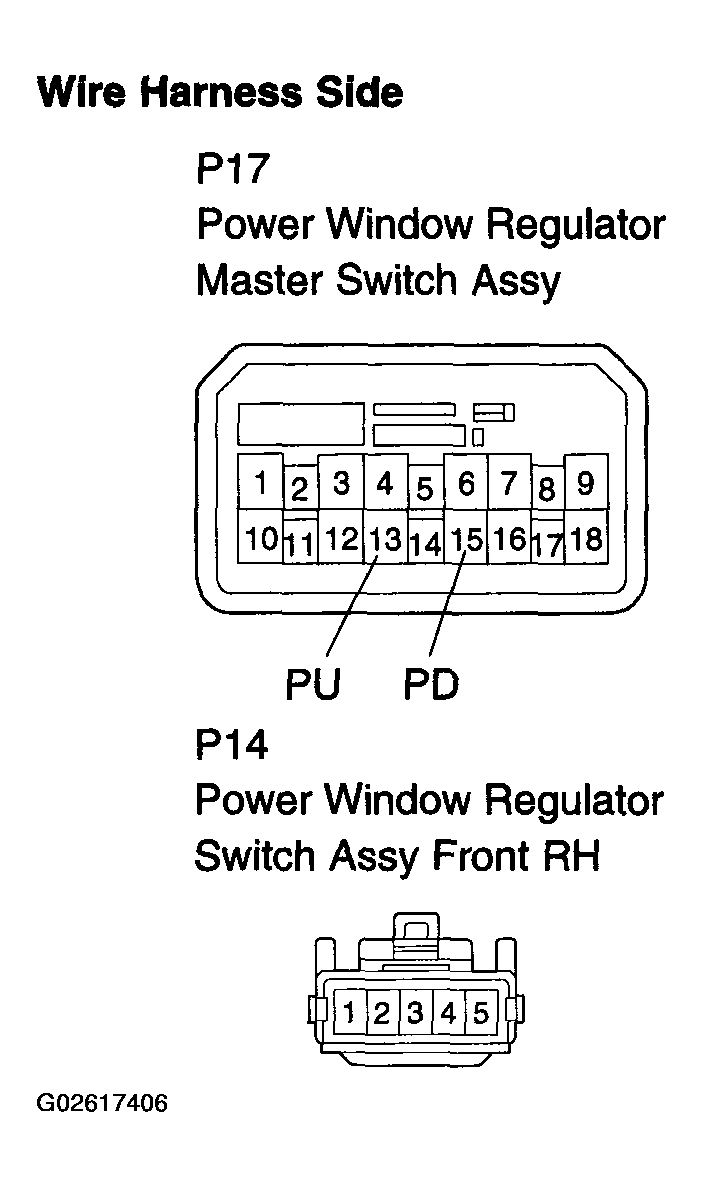

      Fig 3: Identifying Wire Harness (Power Window Regulator Master Switch Assembly - Power Window Regulator Switch Front RH)
      G02617406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK

      REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
