Inner Rear View Mirror ASSY: Inspection

INSPECT INNER REAR VIEW MIRROR ASSY
1. Check operation of the electrochromatic inner mirror.
  1. Connect the battery's positive (+) lead to terminal 6 and the negative (-) lead to terminal 3.
  2. Attach black colored tape to the forward sensor to block it.
  3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
  If the result is not as specified, replace the mirror assy.

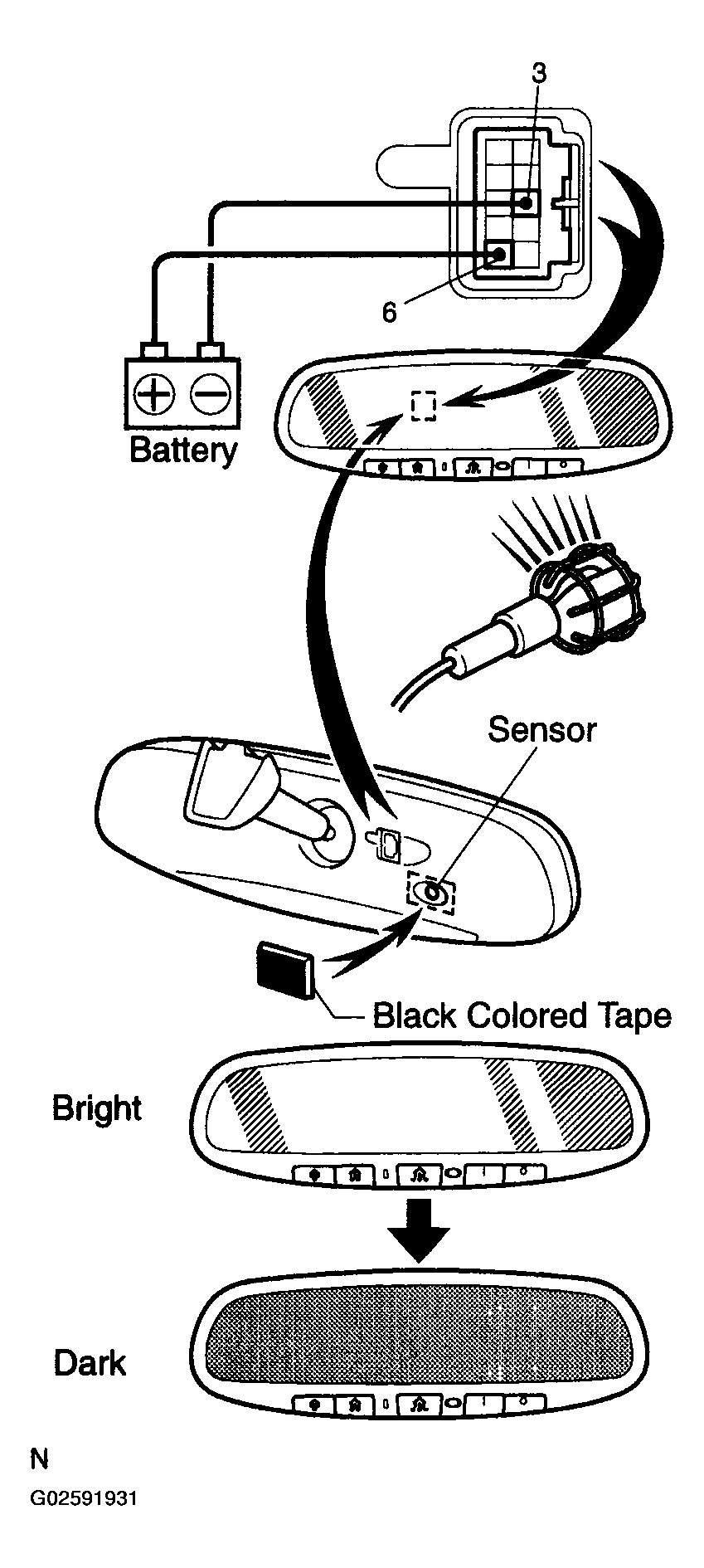

Fig 1: Inspecting Inner Rear View Mirror Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
