Mil Circuit: Wiring Diagram

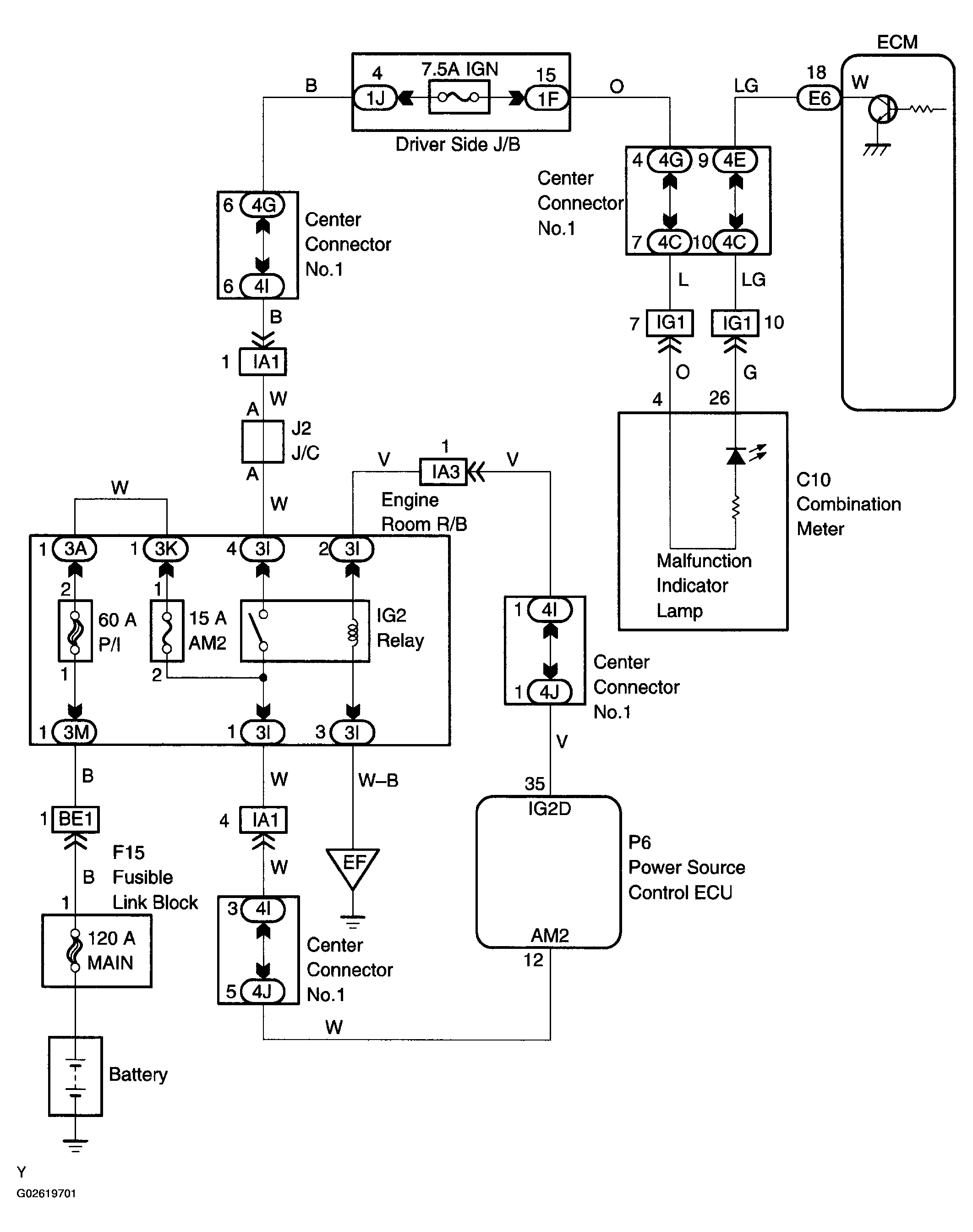

Fig 1: MIL Wiring Diagram
G02619701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
