Circuit Description

The transmission control ECU assy receives power switch condition signals (OFF / ACC / IG) from the power source control ECU. The transmission control ECU assy outputs this DTC when it does not receive the signals.

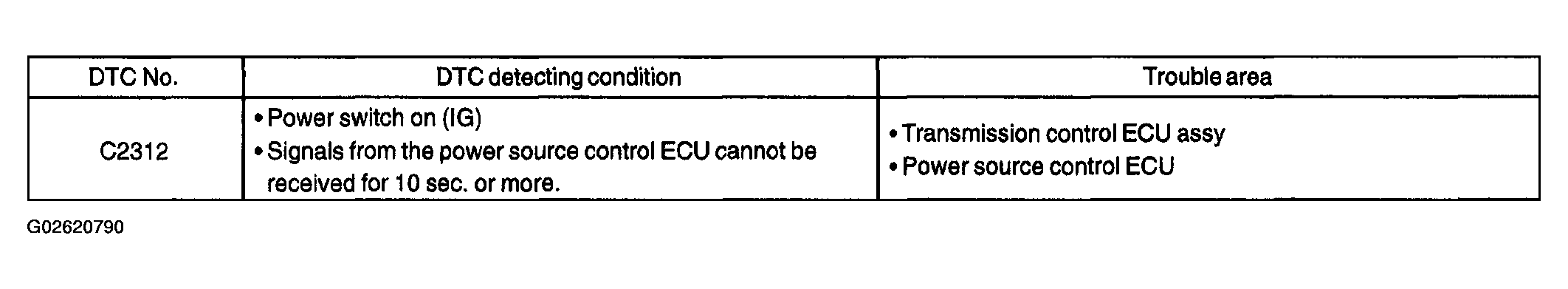

Fig 1: DTC C2312 Detecting Condition Trouble Area Chart
G02620790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
