Rear Axle Hub: Components

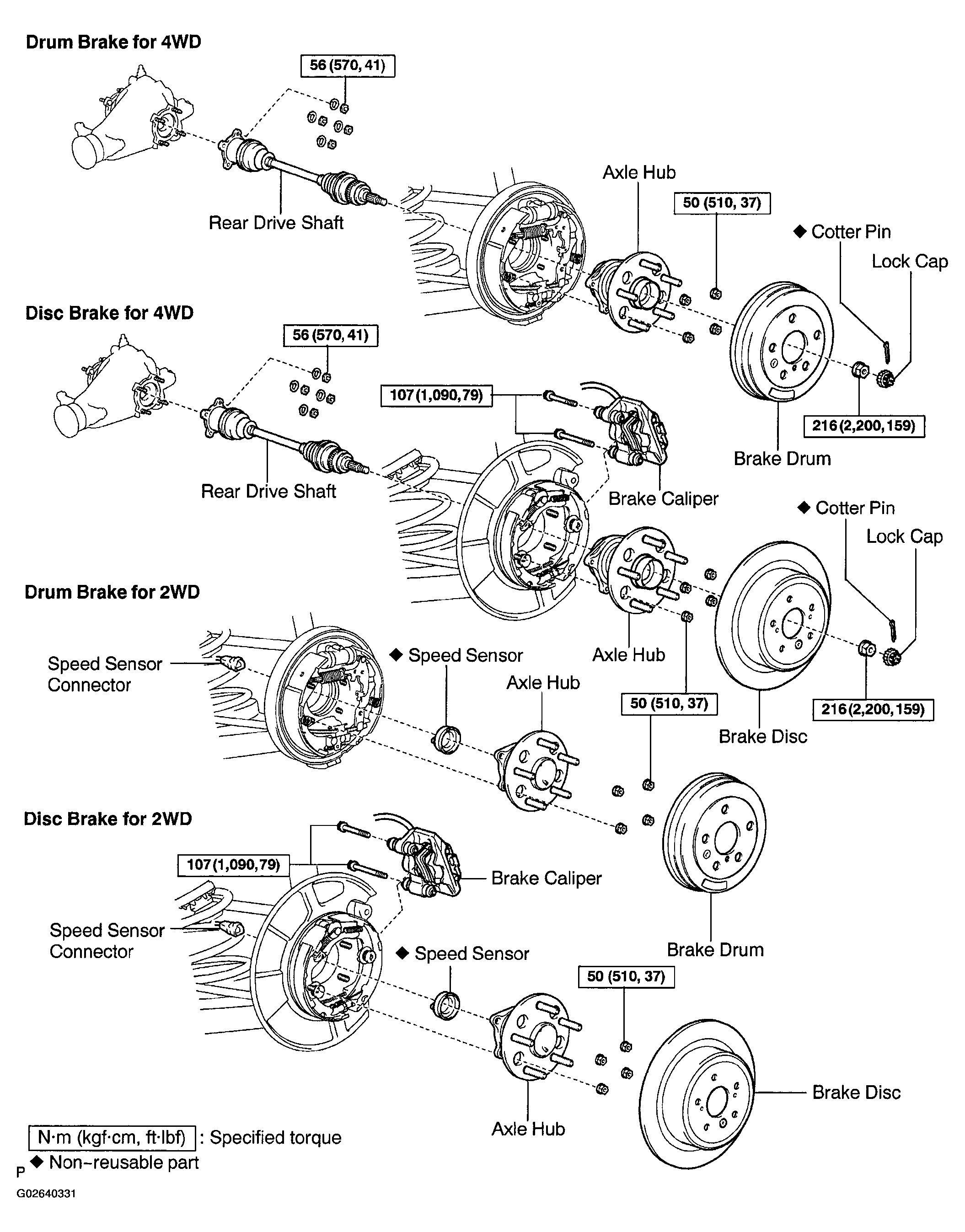

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications
G02640331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
