Charging System: Generator: Components

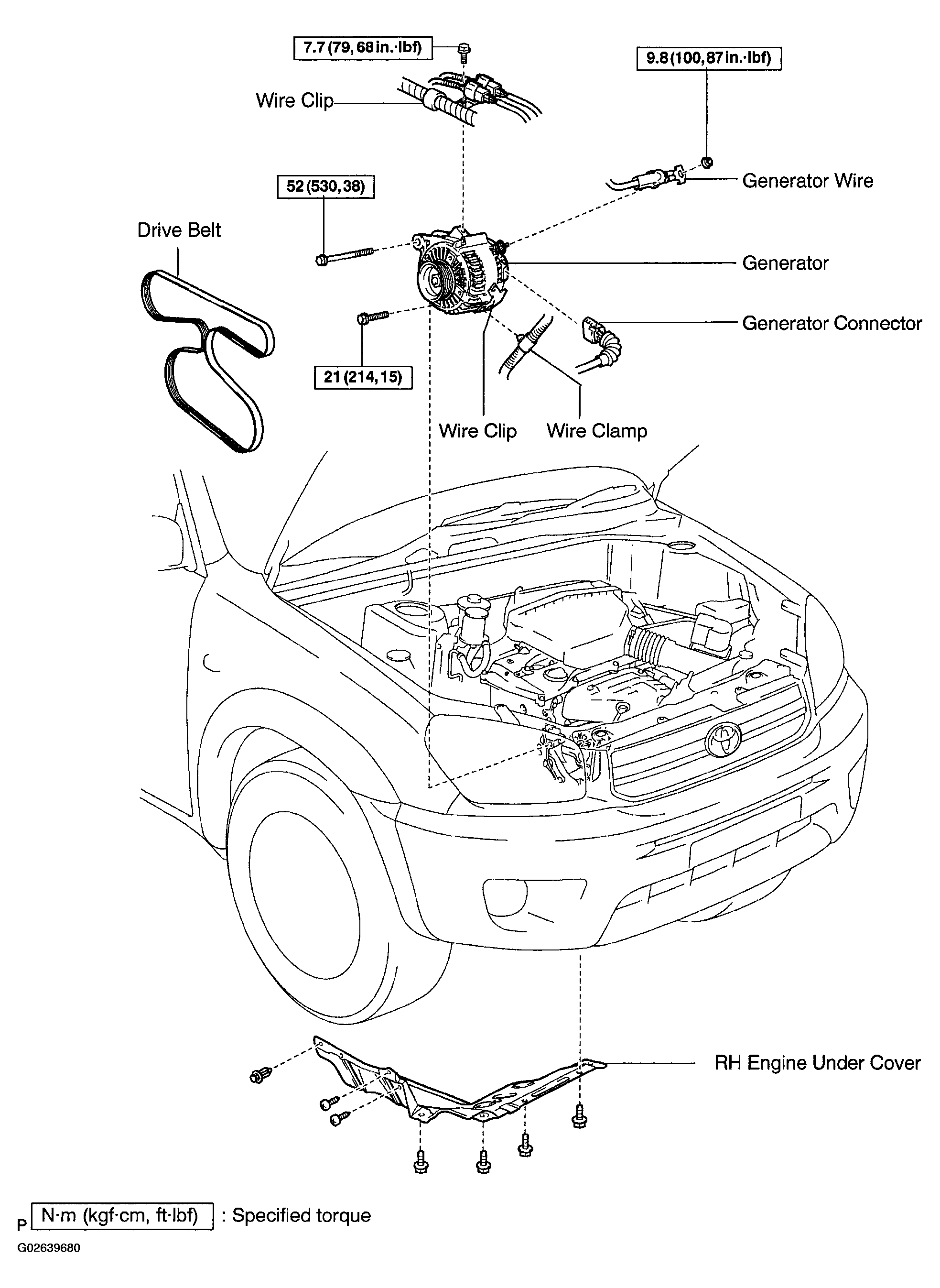

Fig 1: Exploded View Of Generator Components & Torque Specifications (1 Of 3)
G02639680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

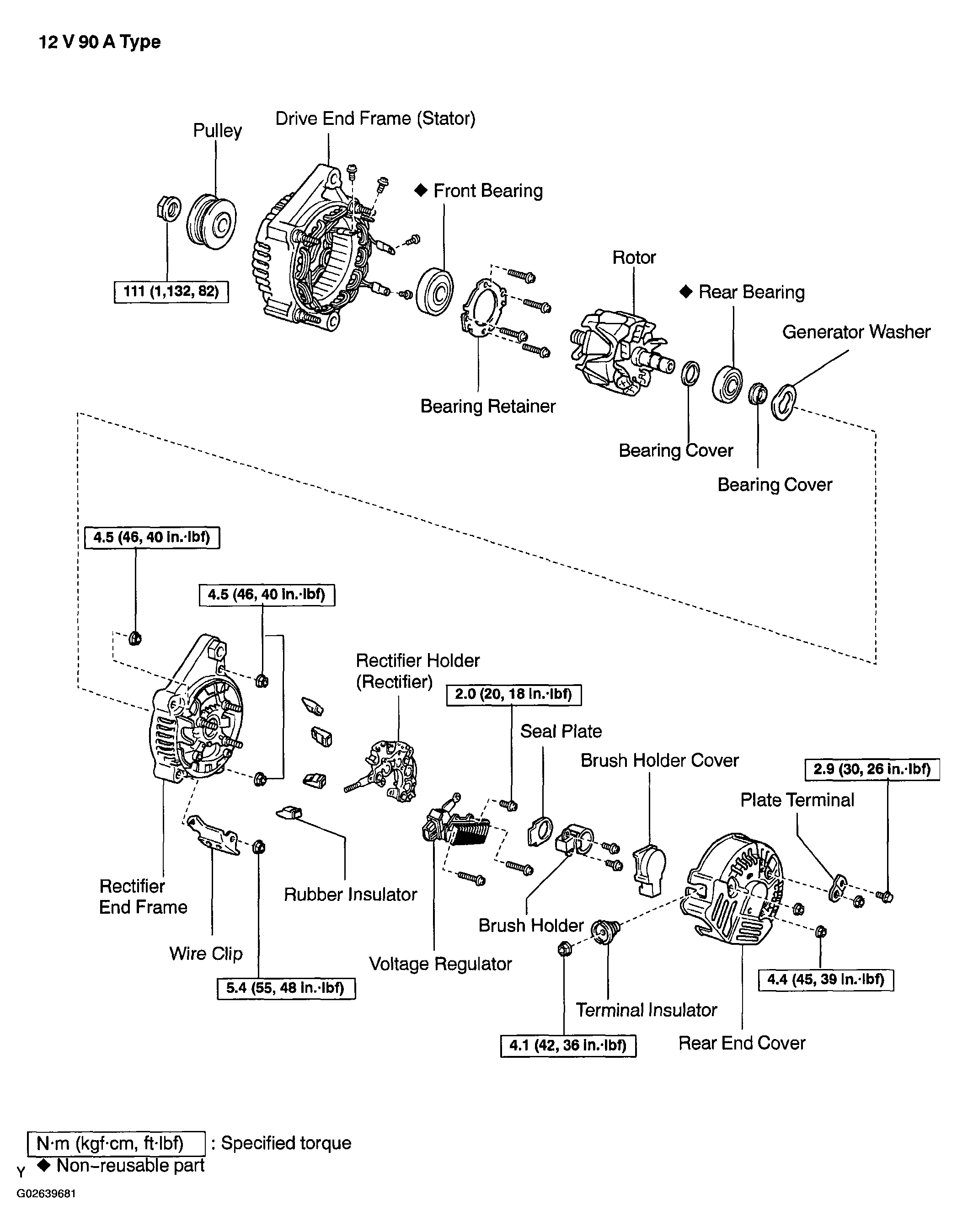

Fig 2: Exploded View Of Generator Components & Torque Specifications (2 Of 3)
G02639681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

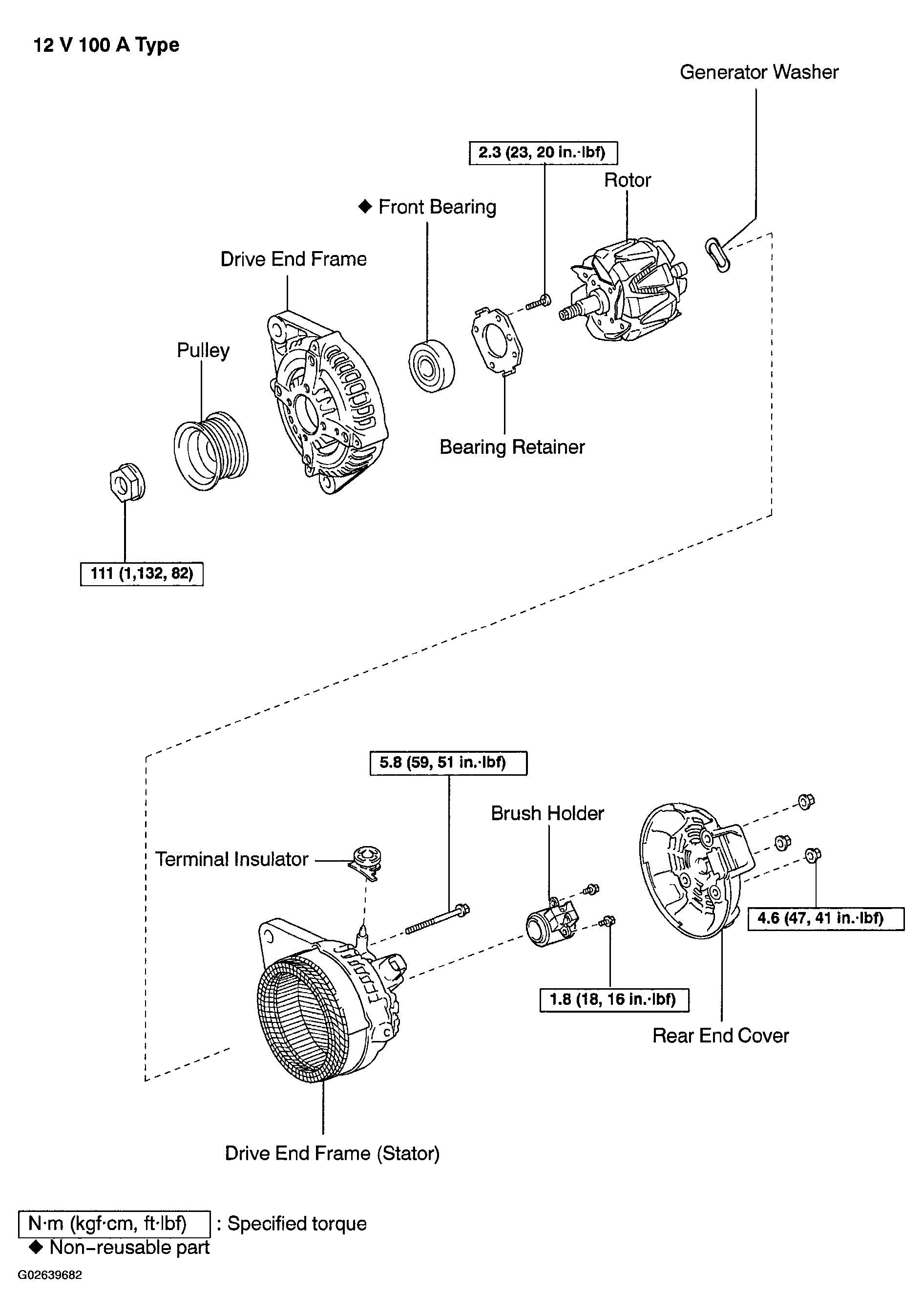

Fig 3: Exploded View Of Generator Components & Torque Specifications (3 Of 3)
G02639682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
